Hyundai H100 (2004 – 2016) – fuse box diagram

Hyundai H100 (2004 – 2016) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Location

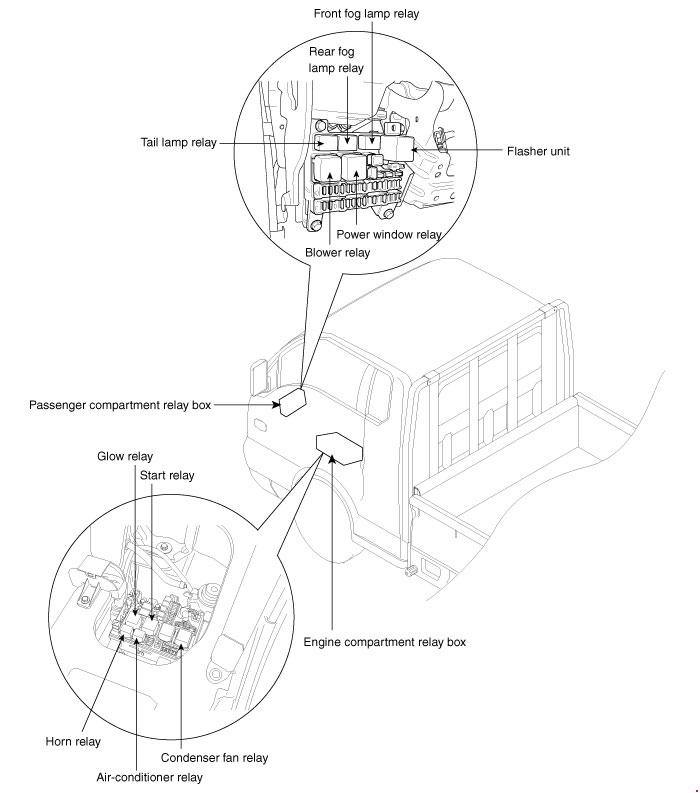

Hyundai H-100 – fuse box diagram – location
Hyundai H-100 – fuse box diagram – location

Passenger compartment fuse box

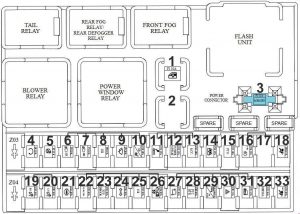

Hyundai H-100 – fuse box diagram – passenger compartment
Hyundai H-100 – fuse box diagram – passenger compartment
No.
A
Function/component
1 Power Window Relay
3 15 Room Lamp, Door Warning Switch, Audio. ETACM, Instrument Cluster, Data Link Connector.Room Lamp (Double Cab)
4 10 Glow Control Module (D4BB). E/R Junction Box (RLY. 4)
5 15
6 10 Head Lamp LH, Instrument Cluster
7 10 Head Lamp RH
8 10 Heater Control Switch, ETACM. Head Lamp Leveling Switch. Blower Relay, Front Fog Lamp Relay, E/R Junction Box (RLY. 5), Head Lamp Leveling Actuator LH/RH
9 20 Wiper Motor, Multifunction Switch (INT)
10 10 Rear Foq Lamp Relay
11 15 Cigarette Lighter
12 15
13 10 Audio, ETACM
14 25
15 10
16 15 Front Fog Lamp Relay
18 15 Instrument Cluster. Driver Power Window Switch. Rear Defogger Switch, Head Lamp Leveling Switch, Heated Control Switch
18 10 Position Lamp RH, Rear Combination Lamp RH, License Lamp (Standard), Hazard Switch, Audio, Rear Detogger Switch, Heater Control Switch, Instrument Cluster, Head Lamp Leveling Switch, Driver Power Window Switch
20 10 Position Lamp LH, Rear Combination Lamp LH, License Lamp (Dual)
21 10
22 10 Instrument Cluster. Pre-Excitation Resistor
23 10 ECM (D4BH/D4CB), Mass Air Flow Sensor (D4CB)
24 10А Hazard Switch (T/SIG), Back-Up Lamp Switch
26 10 ETACM
26 10 Fuel Cutoff Solenoid. Glow Control Module (D4BB). Fuel Filter Warning Sensor. EGR Solenoid Valve (D4BB). RLY. 3 (D4BB)
27 10 EGR Solenoid Valve, Mass Air Flow Sensor. Fuel Filter Warning Sensor (D4CB). Neutral Switch (D4BH)
28 10 Heated Control Switch
29 10
15
Rear Defogger Relay (D4BB)
30 15 Hazard Switch
31 15 Driver Door Lock actuator
32 10 Vehicle Speed Sensor. E/R Junction Box (Condenser Fan Relay)
33 10 Rear Defogger Relay

Engine compartment fuse box

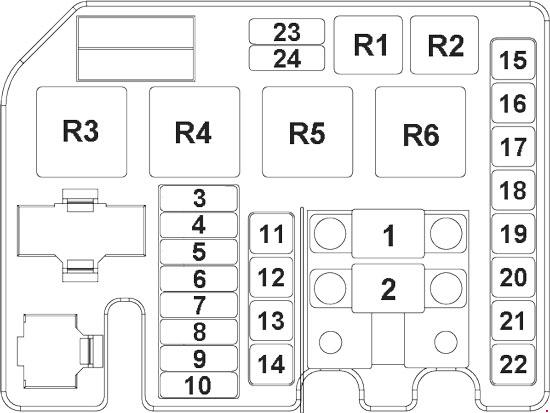

Hyundai H-100 – fuse box diagram – engine compartment
Hyundai H-100 – fuse box diagram – engine compartment
No.
A
Function/component
1 80 D4CB / D4BB & Euro 2: E/R Junction Box (RLY. 3). D4BB & Euro 1 : Glow Box
2 120 (D4CB) 100 (D4BB) Alternator (B+). I/P Fuse & Relay Box (Fuse – F7. F12. F14)
3 10 ECM
4 10 Alternator
5 10 Stop Lamp Switch. Stop Signal Relay
6 10 E/R Junction Box (RLY. 1)
7 10 E/R Junction BOX (RLY. 2)
8 15
9 20 D4CB: ECM
10 10 D4CB: ECM, Immobilizer Module
11 50 E/R Junction Box (RLY. 4), Ignition Switch
12 30 Engine Control Relay
13 50 E/R Junction Box (Fuse – F16. F17. F18. F19). I/P Fuse & Relay Box (Fuse – F29. F30, F31, Power Connector F3)
14 40 l/P Fuse & Relay Box (Fuse – F1, F16. Tail Lamp Relay)
15 30 E/R Junction Box (RLY. 6)
16 30
17 40
18 30
19 40
20 30 l/P Fuse & Relay Box (Blower Relay)
21 40
22 30 E/R Junction Box (RLY. 5)
23 10 D4CB: E/R Junction Box (RLY. 2, RLY. 6). Inlet Metering Valve, Stop Lamp Switch
24 15 D4CB: VGT Actuator, E/R Junction Box (RLY. 3)
Relays
R1 A/C Relay
R2 Horn Relay
R3 Condenser Fan Relay
R4 Fuel Filter Heater Relay
R5 Start Relay
R6 Glow Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
