Hyundai Creta (2016) – fuse box diagram
Year of production: 2016

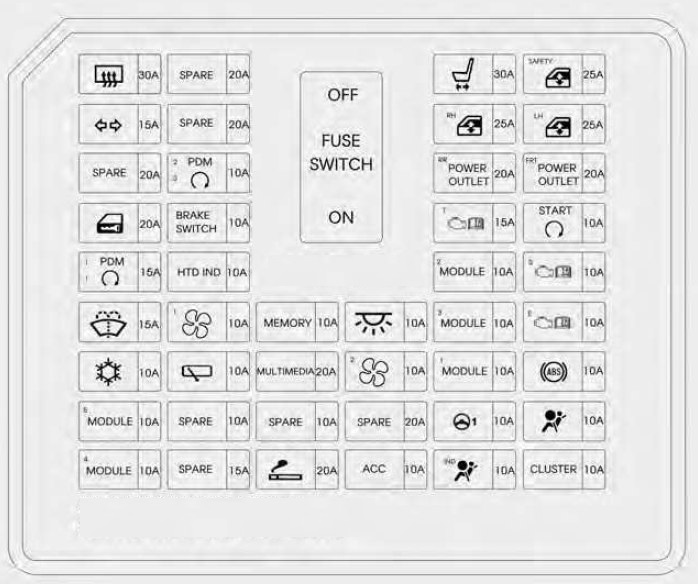

Inner Compartment Fuse Panel
| Item | Name | Symbol | Ampere rating [A] | Protected component |
| FUSE | RR HTD |  |
30 | Rear Defogger Relay, Rear Defogger |
| TURN |  |
15 | Body Control Module | |
| SPARE |  |
20 | — | |
| DOOR LOCK |  |
20 | Door Lock/Unlock Relay, Door Actuator, Tail Gate Unlock Relay, Tail Gate Latch | |
| PDM1 |  |
15 | Smart Key Control Module | |
| WASHER |  |
15 | Multi Function Switch | |
| A/CON |  |
10 | Air Condition Module(Manual, Auto), Cluster Ionizer, Blower Relay | |
| MODULE 5 |  |
10 | Electronic chromic mirror, Head lamp leveling Switch, Head Lamp LH/RH | |
| MODULE 4 |  |
10 | Smart key Control Module, Body Control Module | |
| SPARE | |
20 | — | |
| SPARE | |
20 | — | |
| PDM 2 |  |
10 | Smart Key Control Module | |
| BRAKE SWITCH |
 |
10 | Stop Lamp Switch, Smart Key Control Module | |
| HTD IND |  |
10 | A/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT) | |
| BLOWER |  |
10 | AC Control Module (Auto) | |
| REAR WIPER |  |
10 | Rear Wiper Motor, Rear Wiper Relay | |
| SPARE | |
10 | — | |
| SPARE | |
15 | — | |
| MEMORY |  |
10 | Digital Clock, Body Control Module, AC Control Module (Auto, Manual), Cluster, Outside Mirror Folding , OBD | |
| MULTIMEDIA |  |
20 | Audio | |
| SPARE | |
10 | — | |
| C_LIGHTER |  |
20 | Cigar lighter (Export only) | |
| INTERIOR LP |  |
10 | Room Lamp, MAP Lamp, Luggage Lamp | |
| BLOWER SIGNAL |  |
10 | AC Control Module (Manual) | |
| SPARE | |
20 | — | |
| ACC |  |
10 | Audio, Body Control Module, P/OUTLET Relay, Digital Clock, Smart Key Module, Outside Mirror Switch | |
| P/Seat |  |
30 | Power Seat(Export only) | |
| P/WINDOW RH |  |
25 | Power Window Main Switch RH(Front, Rear) | |
| POWER OUTLET |  |
20 | Front Power Outlet | |
| TCU |  |
15 | M/T : Vehicle Speed Sensor, Back Up Lamp Fuse A/T : Inhibitor Switch, TCU |
|
| MODULE 2 |  |
10 | Body Control Module, Sports Mode Switch(A/T), Stop Switch (NC) | |
| MODULE 3 |  |
10 | A/C Control Module(Manual/Auto), Body Control Module(Static Bending LP Power), ATM Lever Indicator (A/T) |
|
| MODULE 1 |  |
10 | Rear Parking Sensor | |
| MDPS |  |
10 | MDPS Unit | |
| AIRBAG IND |  |
10 | Instrumental Cluster | |
| SAFETY P/WINDOW |
 |
25 | Driver Safety Power Window Module | |
| P/WINDOW LH |
 |
25 | Power Window Main Switch LH(Front Rear) | |
| POWER OUTLET |
 |
20 | Power Outlet Rear | |
| START |  |
10 | PCU/ECU, Inhibitor Switch, Clutch Pedal Assy,Start Relay, Start Inhibitor Relay | |
| SENSOR |  |
10 | D4FC, D4FB : Fuel HTR Relay, Fuel Water Sensor | |
| ENG |  |
10 | Airflow Sensor(D4FB), Smart key Control Module, ECU/PCU(G4FC,D4FC,D4FB) | |
| ABS |  |
10 | ABS/ ESC Control Module, Rheostat & ESC Switch, Engine Room Diagnosis Connector | |
| AIRBAG |  |
10 | Airbag Control Unit | |
| CLUSTER |  |
10 | Instrument Cluster | |
| * G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel) | ||||
Engine Compartment Fuse Panel
Gasoline engine

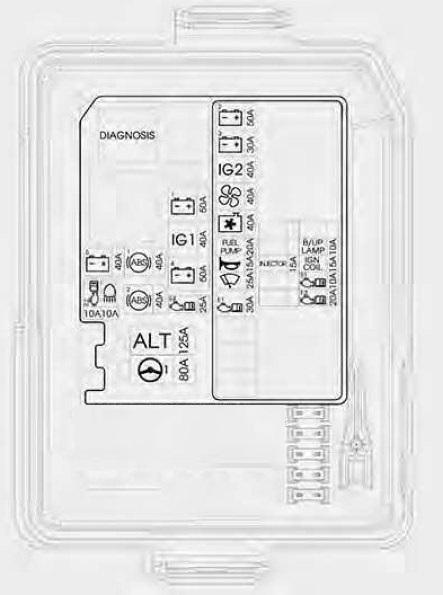

engine compartment (gasoline engine)

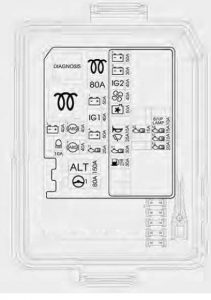

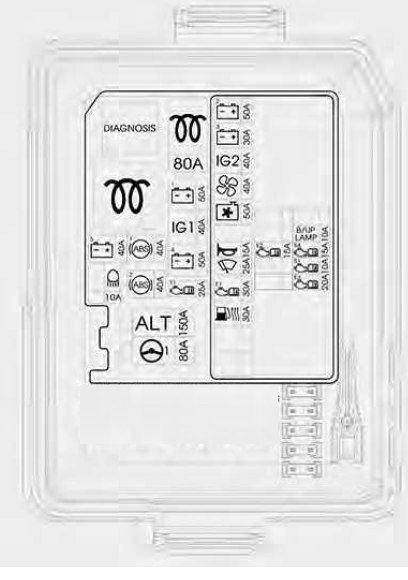

engine compartment (diesel engine)
| Item | Name | Symbol | Ampere rating [A] | Protected component |
| MULTI FUSE | MDPS | |
80 | MDPS(Motor Power Steering) |
| ALT |  |
125 | G4FC (125A): Alternator, Battery, All Fuses connected to Alternator fuseD4FC/D4FB (150A): Alternator, Battery, All Fuses connected to Alternator fuse | |
| 150 | ||||
| FUSE | ECU2 |  |
10 | G4FC(10A): ECU (M/T), PCU(A/T)D4FC(15A): CAM SNSR, Glow RLY, WGT,EGR Control Valve, Air Flow SNSR, IMMOD4FB (15A): CAM SNSR, VGT Vacuum, IMMO |
| 15 | ||||
| HEAD LAMP HIGH BEAM |
 |
10 | Head Lamp High Solenoid Relay (Bi-Functional Type) | |
| ABS2 |  |
40 | ABS / ESC Control Module | |
| ECU 4 |  |
25 | G4FC(25A): ECU (M/T), PCU(A/T)D4FC(15A): Inlet Meter Valve,D4FB(15A): Glow Plug Relay, Fuel Meter Unit | |
| 15 | ||||
| TCU 1 |  |
25 | D4FB: TCU(A/T) | |
| B+5 |  |
40 | Instrument Panel Fuse Block Fuse: FS01 | |
| ABS 1 |  |
40 | ABS / ESC Control Module, Engine Room Diagnosis | |
| B+4 |  |
50 | Instrument Panel Fuse Block Fuse: FS06, IPS-1, IPS-2, IPS-3 | |
| IG1 |  |
40 | W/o Button start: Ignition SW With Button start: PDM Relay Block |
|
| B+1 |  |
50 | Instrument Panel Fuse Block Fuse: FS14,FS05,FS13,FS17,FS10,FS02,FS09, IOD relay(Leakage Current Auto cut) |
|
| Glow |  |
80 | D4FC/D4FB: Glow Relay, Glow Plug | |
| FUEL HEATER |
 |
30 | D4FC/D4FB: Fuel heater | |
| ECU 1 |  |
30 | (Engine Control)Main Relay | |
| FRONT WIPER |
 |
25 | Wiper Motor(Front) | |
| HORN |  |
15 | Horn(Dual), Burglar Alarm Horn | |
| FUEL PUMP |  |
20 | G4FC: Fuel Pump Relay, Fuel Pump Motor | |
| C/FAN |  |
40 | G4FC(40A),Radiator Fan MotorD4FC/D4FB(50A)-Radiator Fan Motor | |
| 50 | ||||
| BLOWER |  |
40 | Blower Motor | |
| IG2 |  |
40 | W/o Button Start : Start Relay, Start Solenoid, Ignition SW With Button Start : Start Relay, Start Solenoid, PDM Relay Block |
|
| B+3 |  |
30 | Instrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5 | |
| B+2 |  |
50 | Instrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay | |
| INJECTOR |  |
15 | G4FC: Injector(#1,#2,#3,#4) | |
| BACK UP LAMP |
 |
10 | Back up switch(MT Only), Rear Combination Lamp LH/RH | |
| IGN COIL |  |
15 | G4FC: Condenser, Ignition Coil Extn. | |
| SENSOR 1 |  |
10 | G4FC: Variable Intake System Solenoid, Output Variable Cam(IN, EX),Purge Control Solenoid Valve, Oxygen Sensor(UP, DN), IMMO D4FB: Lambda Sensor, Stop SW, EGR Actuator, D4FC: Stop SW |
|
| ECU 3 |  |
20 | D4FC/D4FB: ECU G4FC: ECU(M/T),PCU(A/T) |
|
| Relay | Glow | |
D4FC/D4FB: Glow Plug | |
| * G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel) | ||||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
