Ford Transit Fifth generation – fuse box diagram (fuse specification chart) – USA version
Yesr of production:
Engine compartment fuse box

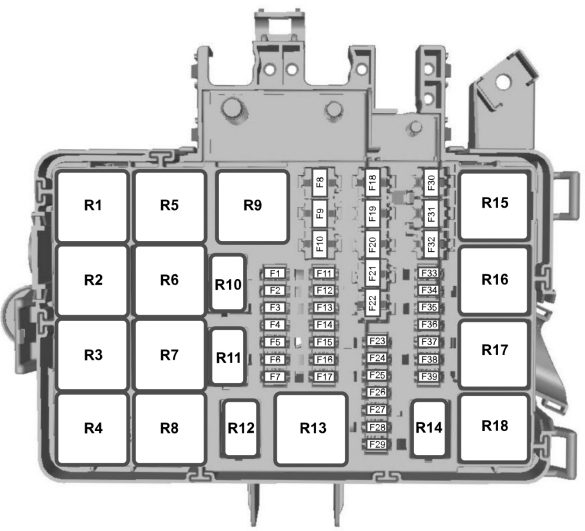

Ford Transit 5th generation – fuse box -engine bay (USA version)
Fuse |
Ampere rating [A] |
Circuit protected |
F1 |
10 |
Selective Catalytic Reduction – Diesel |
F2 |
15 |
Selective Catalytic Reduction – Diesel |
F3 |
15 |
Selective Catalytic Reduction – Diesel |
F4 |
10 |
Selective Catalytic Reduction – Diesel |
F5 |
3 |
Diesel particulate filter vaporizer, glow plug monitor |
F6 |
3 |
Anti-lock brake system, stability assist, ignition. |
F7 |
7,5 |
Powertrain control module |
F8 |
20 |
Cooling fan – Gasoline |
F9 |
30 |
Left-hand windshield wiper |
F10 |
30 |
Right-hand windshield wiper |
F11 |
10 |
Air conditioning clutch |
F12 |
20 |
Diesel particulate filter vaporizer glow plug |
F13 |
— |
Not used |
F14 |
3 |
Selective Catalytic Reduction – ignition – Diesel |
F15 |
— |
Not used |
F16 |
— |
Not used |
F17 |
— |
Not used |
F18 |
40 |
Anti-lock brake system, stability assist pump |
F19 |
30 |
Starter solenoid |
F20 |
60 |
Glow plugs |
F21 |
60 |
Ignition relay 3 |
F22 |
40 |
Selective Catalytic Reduction relay feed |
F22 |
40 |
Electric vacuum pump relay feed |
F23 |
10 |
PROTECTED CIRCUIT FUSE |
F24 |
10 |
Fuel injection pump – Diesel |
20 |
Fuel injection pump – Gasoline |
F25 |
15 |
Throttle control unit – Diesel. |
10 |
PROTECTED CIRCUIT FUSE – Gasoline |
F26 |
20 |
PROTECTED CIRCUIT FUSE |
F27 |
— |
Not used |
F28 |
7,5 |
Crankcase sensor – Diesel. |
10 |
Injection power – Gasoline 3.7L |
F29 |
3 |
Ignition feed – Audio – Gasoline |
7,5 |
Crank case ventilation heater – Diesel |
F30 |
60 |
Single cooling fan |
40 |
Twin cooling fan |
F31 |
40 |
Twin cooling fan 2 – Gasoline |
F32 |
30 |
Windshield wiper motor |
60 |
Windshield dual wiper motors |
F33 |
20 |
Start-Stop auxiliary water pump |
F34 |
— |
Not used |
F35 |
20 |
Powertrain control system supply – Gasoline |
15 |
Powertrain control system supply – Diesel |
F36 |
20 |
Mass air flow sensor – Gasoline |
15 |
Mass air flow sensor, NOX sensor 1, 2 – Diesel |
F37 |
7,5 |
Volume Control Valve |
F38 |
20 |
Air conditioning clutch – Gasoline |
7,5 |
Air conditioning clutch – Diesel |
Relay |
Circuits switched |
R1 |
Ignition 3 |
R2 |
Not used |
R3 |
Not used |
R4 |
Not used |
R5 |
Cooling fan – Gasoline |
R6 |
Windshield wiper – on and off |
R7 |
Windshield wiper – low and high speed |
R8 |
Electrical Vacuum Pump – Gasoline |
R9 |
Starter motor |
R10 |
Air conditioning clutch |
R11 |
Fuel vaporizer system glow plug |
R12 |
Fuel injection pump |
R13 |
Not used |
R14 |
Not used |
R15 |
Low and high speed cooling fan |
R16 |
Selective Catalytic Reduction – Diesel |
R17 |
Powertrain control module |
R18 |
High speed cooling fan |
Passenger Compartment Fuse Panel

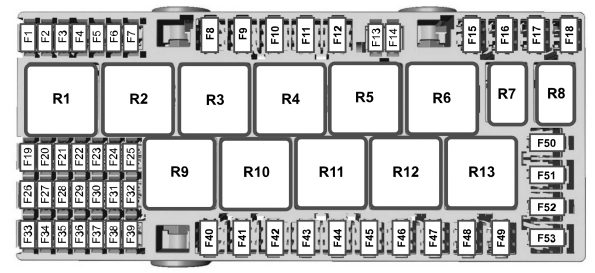

Ford Transit 5th generation – fuse box -passenger compartment (USA version)
Fuse |
Ampere rating [A] |
Circuits protected |
F1 |
10 |
Airbag module |
F2 |
4 |
Anti-lock brake system with electronic stability control, parking brake |
F3 |
— |
Not used |
F4 |
10 |
Trailer tow back-up lamp relay |
F5 |
20 |
Cutaway body connectors |
F6 |
— |
Not used |
F7 |
— |
Not used |
F8 |
40 |
AC power outlet socket |
F9 |
30 |
Trailer brake module |
F10 |
30 |
Driver power seat |
F11 |
30 |
Passenger power seat |
F12 |
30 |
Trailer tow park lamp relay |
F13 |
25 |
Anti-lock brake system with electronic stability control valves |
F14 |
5 |
Powertrain control module B+ relay |
F15 |
40 |
Powertrain control module power relay |
F16 |
40 |
Body control module power feed |
F17 |
40 |
Ignition relay 3 |
F18 |
40 |
Modified vehicle connections |
F19 |
— |
Not used |
F20 |
5 |
Heated exterior mirror relay |
F21 |
10 |
Modified vehicle ignition connections |
F22 |
15 |
Passenger compartment fuse panel |
F23 |
7,5 |
Air conditioning control module. |
F24 |
10 |
Cutaway body connectors |
F25 |
7,5 |
Interior lighting. |
F26 |
10 |
Heated exterior mirrors |
F27 |
20 |
Heated rear window |
F28 |
20 |
Heated rear window |
F29 |
10 |
Rear parking aid camera, lane keeping system, electro mirror |
F30 |
— |
Not used |
F31 |
10 |
Trailer brake ignition feed |
F32 |
10 |
Interior lighting |
F33 |
— |
Not used |
F34 |
— |
Not used |
F35 |
5 |
Power folding mirrors |
F36 |
20 |
Horn |
F37 |
7,5 |
SYNC module0 |
F38 |
5 |
Blower motor, horn relay, windshield wiper relay |
F39 |
7,5 |
Remote keyless entry, battery, power windows, rear heating, ventilation and air conditioning |
F40 |
40 |
Front blower motor |
F41 |
40 |
Rear blower motor |
F42 |
40 |
Heated rear window |
F43 |
30 |
Trailer socket |
F44 |
60 |
Auxiliary power points |
F45 |
40 |
Trailer connectors B+ supply |
F46 |
30 |
Power windows |
F47 |
20 |
Cigar lighter socket |
F48 |
20 |
Rear auxiliary power points. |
F49 |
20 |
Front auxiliary power points. |
F50 |
60 |
Ignition relay 1 |
F51 |
60 |
Ignition relay 2 |
F52 |
40 |
Modified vehicle connections |
F53 |
40 |
Modified vehicle connections |
Relay |
Circuits switched |
R1 |
Not used (spare) |
R2 |
Auxiliary power points |
R3 |
Trailer tow parking lamp |
R4 |
Ignition 2 |
R5 |
Power windows |
R6 |
Ignition 1 |
R7 |
Horn |
R8 |
Trailer tow back-up lamp |
R9 |
Front blower motor |
R10 |
Rear blower motor |
R11 |
Heated rear window, heated exterior mirrors |
R12 |
Not used |
R13 |
Modified vehicle connections |
Pre-fuse Box

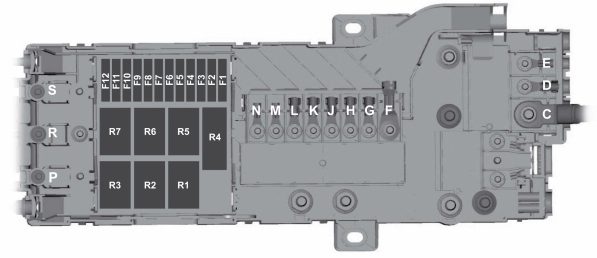

Ford Transit 5th generation – pre fuse box – (USA version)
Fuse |
Ampere rating [A] |
Circuits protected |
C |
470 |
Engine compartment fuse box, starter motor, alternator |
D |
100 |
Passenger compartment fuse panel, body control module fuse box |
E |
40 |
Powertrain control module, anti-lock brake system |
F |
200 |
Passenger compartment fuse panel |
G |
100 |
Passenger compartment fuse panel |
H |
80 |
Positive temperature coefficient heater |
J |
— |
Not used |
K |
100 |
Engine junction box feed |
L |
100 |
Passenger compartment fuse panel |
M |
60 |
Passenger compartment fuse panel supply |
N |
60 |
Passenger compartment fuse panel supply |
P |
60 |
Auxiliary power point 1 |
R |
60 |
Auxiliary power point 2 |
S |
60 |
Auxiliary power point 3 |
Fuse |
Fuse ranting |
Circuits protected |
F1 |
— |
Not used |
F2 |
— |
Not used |
F3 |
— |
Not used |
F4 |
— |
Not used |
F5 |
20 |
R4 relay power |
F6 |
20 |
R3 relay power |
F7 |
20 |
R2 relay power |
F8 |
20 |
R4 relay power |
F9 |
— |
Not used |
F10 |
— |
Not used |
F11 |
— |
Not used |
F12 |
3 |
Switch power |
Relay |
Circuit switched |
R1 |
Upfitter 1 |
R2 |
Upfitter 2 |
R3 |
Upfitter 3 |
R4 |
Upfitter 4 |
R5 |
Not used |
R6 |
Not used |
R7 |
Not used |
Body Control Module

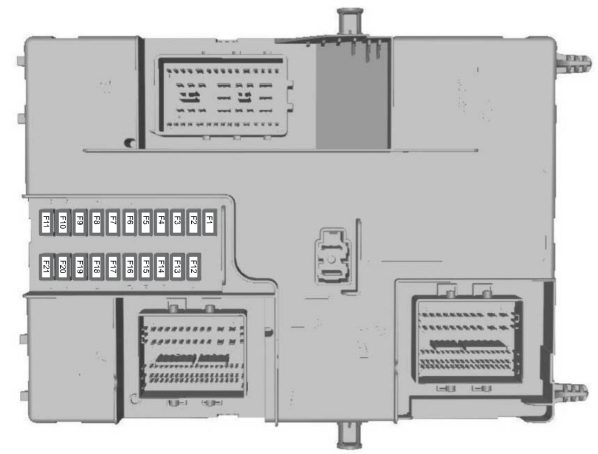

Ford Transit 5th generation – fuse box -control module – (USA version)
Fuse |
Ampere rating [A] |
Circuits protected |
F1 |
15 |
Central locking system 2 |
F2 |
15 |
Central locking system 1 |
F3 |
15 |
Ignition switch |
F4 |
5 |
Parking assist control module, brake transmission shift interlock |
F5 |
5 |
Rain sensor module |
F6 |
15 |
Windshield washer pump |
F7 |
— |
Not used |
F8 |
— |
Not used |
F9 |
10 |
Right-hand high beam |
F10 |
10 |
Left-hand high beam |
F11 |
25 |
Right-hand exterior lamps, left-hand position lamps |
F12 |
— |
Not used |
F13 |
15 |
On-board diagnostic, battery saver |
F14 |
25 |
Turn signal indicator, power windows delayed accessory, lane departure sensor heated windshield pad |
F15 |
25 |
Left-hand exterior lamps, right-hand position lamps. High mounted stoplamp |
F16 |
20 |
Audio unit, navigation unit |
F17 |
7,5 |
Instrument panel cluster, heater control |
F18 |
10 |
Headlamp switch module, steering wheel module, stoplamp switch supply |
F19 |
5 |
Front control/display interface module |
F20 |
5 |
Ignition passive anti-theft system |
F21 |
3 |
Accessory relay, customer access feed |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
