Hyundai Elantra (2005) – fuse box diagram

Hyundai Elantra (2005) – fuse box diagram

Year of production: 2005

Engine compartment

Hyundai Elantra – fuse box – engine compartment
Hyundai Elantra – fuse box – engine compartment
Description Fuse rating Protected component
BATT 50 Fusible link (P/WDW), Tail lamp relay, Power connector
COND 20 Condenser fan relay.1
RAD 20 Radiator fan relay
ECU 20 Generator, Engine control relay, Fuel pump relay, PCM
IGN 40 Ignition switch, Start relay
ABS.1 30 ABS control (Motor)
ABS.2 30 ABS control (Solenoid)
BLOWER 30 Blower relay
FUSE INJ. 15 Injectors
SNSR 10 PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay
DRL 15 DRL control
H/LP WASHER 20 Head lamp washer
F/FOG 15 Front fog lamp relay
ECU 10 Siren, PCM
HORN & A/C 15 A/C relay, Horn relay
H/LP (HI) 15 Head lamp (Hight)
H/LP (LO) 15 Head lamp (Low)

Inner Panel

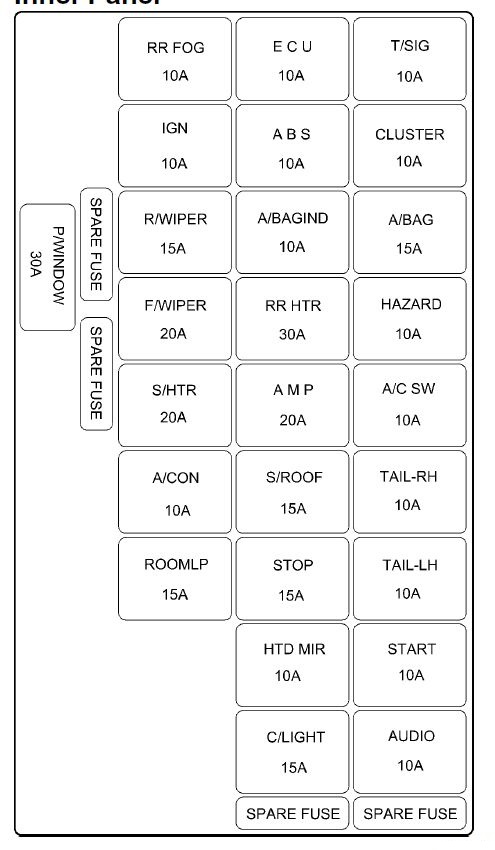

Hyundai Elantra – fuse box – inner panel
Hyundai Elantra – fuse box – inner panel
Description Fuse rating Protected component
FUSE T/SIG 10 Turn signal lamps, Back-up lamp
CLUSTER 10 Pre-excitation resistor, Instrument cluster (IND)
A/BAG 15 SRS control
HAZARD 10 Hazard relay, Hazard lamps
A/C SW 10 A/C Control
TAIL-RH 10 Short connector, Illumination lamps, Tail lamp (RH), Head lamp washer
TAIL-LH 10 Tail lamp (LH), Exterior lamps
START 10 B/Alarm relay
AUDIO 10 Digital clock, Power outside mirror & mirror folding, Audio
E C U 10 Cruise control, PCM, Vehicle speed sensor, Ignition coil
A B S 10 ABS control
A/BAG IND 10 Instrument cluster (Air bag IND)
RR HTR 30 Defogger relay
A M P 20 Power antenna
S/ROOF 15 Power door lock control, Sunroof
STOP 15 Stop lamps, Power window, Power outside mirror folding
HTD MIR 10 Rear window & outside mirror defogger, A/C control
C/LIGHT 15 Cigarette lighter, Power outlet
RR FOG 10 Rear fog lamps
I G N 10 Head lamp, Head lamp washer, Fuel filter heating
R/WIPER 15 Rear wiper & washer
F/WIPER 20 Front wiper & washer
S/HTR 20 Seat warmer
A/CON 10 Blower & A/C control, ETACM, Sunroof controller, Electronic chrome mirror
ROOM LP 15 Door lamps, Instrument cluster, Data link connector, Multipurpose check connector, Room lamps, ETACM, Audio, Power connector

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
