Hyundai Atos – fuse box diagram (India)
Year of production:
FOR INDIA

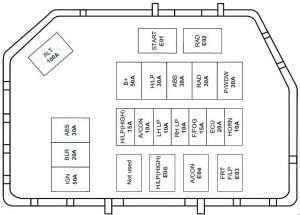

Engine compartment fuse box
| Fuse |
A |
Circuit propected |
| ALT | 100 | Generator |
| ABS | 30 | ABS control |
| BLR | 20 | Blower control |
| IGN | 50 | Ignition power source |
| B+ | 50 | Battery power source |
| H/LP | 30 | Lamps |
| ABS | 30 | ABS control |
| RAD | 30 | Radiator fan control |
| P/WDW | 30 | power window control |
| H/LP(HIGH) | 15 | Head lamps |
| A/CON | 10 | A/CON controls |
| LH LP | 10 | Left tail lamps |
| RH LP | 10 | Right tail lamps |
| F/FOG | 15 | Front fog lamps |
| ECM | 20 | Engine control relay |
| HORN | 10 | Homs |

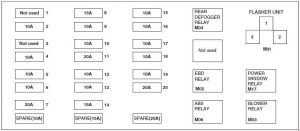

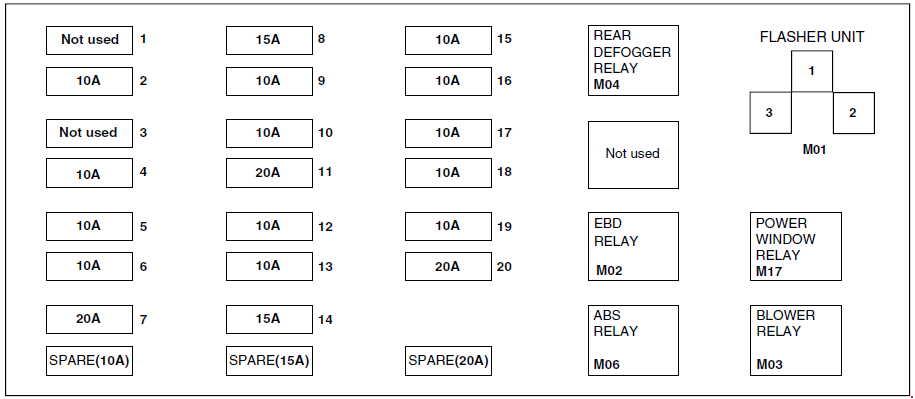

The instrument panel fuse panel
| No |
A |
Circuit |
| 1 | – | Not used |
| 2 | 10 | Power window |
| 3 | – | Not used |
| 4 | 10 | Left head lamp |
| 5 | 10 | Right head lamp |
| 6 | 10 | Blower, rear window defogger |
| 7 | 20 | Wiper, washer |
| 8 | 15 | Power door lock |
| 9 | 10 | Hazard lamp, data link connector |
| 10 | 10 | Stop lamp |
| 11 | 20 | Rear window defogger |
| 12 | 10 | Audio, room lamp |
| 13 | 10 | Audio |
| 14 | 15 | Cigarette lighter |
| 15 | 10 | Back-up lamp, generator, TCM, turn signal lamp, vehicle speed sensor, Multipurpose check connector |
| 16 | 10 | Instrument cluster, ABS relay, EBD relay |
| 17 | – | Not used |
| 18 | 10 | ECM |
| 19 | 10 | A1C & blower control |
| 20 | 20 | Ignition coil, ECM |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
