Hyundai Atos – fuse box diagram
Year of production:
Engine compartment fuse box
| Fuse |
A |
Circuit propected |
| ALT | 100 | Generator |
| ABS | 30 | ABS control |
| BLR | 20 | Blower control |
| IGN | 50 | Ignition power source |
| B+ | 50 | Battery power source |
| H/LP | 30 | Lamps |
| ABS | 30 | ABS control |
| RAD | 30 | Radiator fan control |
| P/WDW | 30 | Power window control |
| T/LP(DRL) | 10 | Tail lamp (DRL) |
| A/CON | 10 | A/CON controls |
| LH LP | 10 | Left tail lamps |
| RH LP | 10 | Right tall lamps |
| F/FOG | 15 | Front fog lamps |
| ECM #2 | 20 | Engine control relay |
| ECU #1 | 10 | ECM |

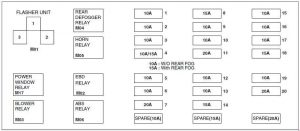

The instrument panel fuse panel
| No |
A |
Circuit |
| 1 | 10 | Horn |
| 2 | 10 | Power window |
| 3 | 10 | ABS |
| 4 | 10/15 | Left head lamp, rear fog lamp, DRL control |
| 5 | 10 | Right head lamp, DRL control |
| 6 | 10 | Blower, rear window defogger |
| 7 | 20 | Wiper, washer |
| 8 | 15 | Power door lock, door warning control |
| 9 | 10 | Hazard lamp, data link connector |
| 10 | 10 | Stop lamp, shift & key lock control |
| 11 | 20 | Rear window defogger |
| 12 | 10 | Digital clock, audio, room lamp, instrument cluster, rear fog lamp, luggage room lamp |
| 13 | 10 | Digital clock, audio, A/T interlock control |
| 14 | 15 | Seat warmer, cigarette lighter |
| 15 | 10 | Back-up lamp, generator, TCM, vehicle speed sensor, Turn signal lamp, ATM shift lever, Multipurpose check connector |
| 16 | 10 | ABS, instrument cluster, seat belt timer, EBD, A/T interlock control |
| 17 | 10 | Instrument cluster (Air bag IND.) |
| 18 | 15 | Air bag |
| 19 | 10 | A/C & blower control |
| 20 | 20 | ECM, Ignition coil |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
