Honda Prelude (1997 – 2001) – fuse box diagram

Honda Prelude (1997 – 2001) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001

Passenger Compartment Fuse Box

Honda Prelude – fuse box diagram – passenger compartment
Honda Prelude – fuse box diagram – passenger compartment
Number Fuse name Ampere rating [A] Circuit protected
1 (ATTS UNIT) 10 ATTS fail-safe relay
2 STARTER SIGNAL 7,5 PGM-FI main relay, ECM, Starting system
3
4 ACG-S 10 PGM-FI main relay, Immobilizer control unit
5 (RR SPEAKER) 10 Stereo amplifier
6 (HEATED SEAT) 15 Seat heaters (Canada)
7 (SUN ROOF) 30 Moonroof
8 (DAY LIGHT) 7,5 Daytime running lights control unit (Canada)
9 R/C MIRROR
(ABS, ATTS)
7,5 ABS system, Mirror defoggers (Canada), Power mirrors, Seat heaters (Canada), Blower motor relay, Option connector C982, ATTS system
10 TAIL LIGHT 15 Console lights, Dash lights, Parking lights, Rear side marker lights, Taillights, Security system (Canada)
11 REAR DEFROSTER RELAY 7,5 Rear window defogger relay
12 (DAY LIGHT UNIT) 7,5 Daytime running lights control unit (Canada)
13 METER
(CRUISE CONTROL)
15 Turn signal lights, Hazard warning lights, Back-up lights, Cruise control, Clock, Gauge assembly, Driver’s multiplex control unit
14 ECU
EAT ECU
15 Charging system, Vehicle speed sensor (VSS), TCM, PGM-FI, Immobilizer system (early production ’97 Model), Interlock system, Gauge assembly, Security system (Canada)
15 P/W DRIVER 20 Master power window switch/motor
16 P/W ASSISTANT 20 Passenger’s power window switch/motor
17 WIPER 30 Windshield wiper motor, Windshield intermittent wiper relay, Windshield washer switch
18 ACC 7,5 Stereo sound system, Accessory power socket relay, Interlock system
19
20
21 (ATTS) 7,5 ATTS control unit, ATTS fail-safe relay
22 10 1999-2001: Keyless receiver unit
23 (FUEL PUMP) 15 SRS unit
24 (SRS) 10 SRS unit
R1 Turn Signal/Hazard Relay
R2 Moonroof Close Relay
R3 Blower Motor Relay
R4 Power Window Relay
R5 Moonroof Open Relay
R6 Rear Window Defogger Relay

Fusebox in luggage compartment

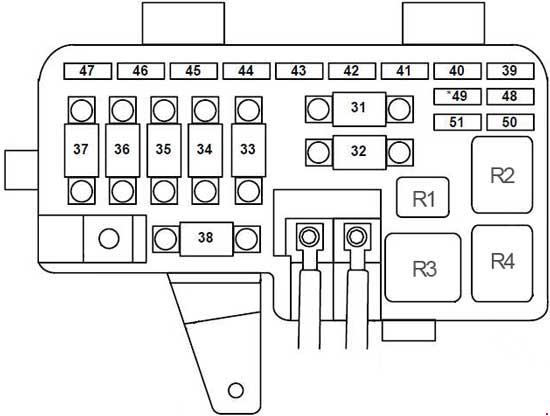

Honda Prelude – fuse box diagram – luggage compartment
Honda Prelude – fuse box diagram – luggage compartment
Number Fuse name Ampere rating [A] Circuit protected
31 (ABS MOTOR) 30 ABS pump motor relay
32 BATTERY 100 Power distribution (Main fuse)
33 IG SW 50 Ignition switch (BAT)
34 REAR DEFROSTER 40 Rear window defogger
35 HEATER MOTOR 40 Blower controls
36 FUSE BOX 50 Power distribution
37 POWER WINDOW 40 Power distribution, Power windows, Moonroof
38
39 HAZARD 10 Turn signal/hazard warning lights
40 (ABS +B) 20 ABS fail-safe relay
41 STOP HORN 15 Horn relay, Brake lights, Ignition key light, Interlock system
42 SMALL LIGHT 20 Parking lights, Taillights, Dash lights, Console lights
43 CLOCK RADIO 7,5 Automatic transmission controls, Stereo sound system, Multiplex control system, Clock, PGM-FI, Moonroof, Immobilizer system, Security system (Canada)
44 DOOR LOCK 10 Power door locks
45 CONDENSER FAN 20 Condenser fan relay, A/C compressor clutch relay
46 INTERIOR LIGHTS 15 1997-1998: Ceiling light, Trunk light, Accessory power socket relay, Data link connector, Courtesy lights
INTERIOR LIGHTS 10 1999-2001: Ceiling light, Trunk light, Accessory power socket relay, Data link connector, Courtesy lights, Power door locks
47 COOLING FAN 20 Radiator fan motor
48 (ABS UNIT) 7,5 ABS control unit
49
50 R HEAD LIGHT 20 Right headlight, Daytime running lights control unit (Canada)
51 L HEAD LIGHT 20 Left headlight, High beam indicator light (USA), Daytime running lights control unit (Canada)
Relay
R1 Radiator Fan Relay
R2 ABS Pump Motor Relay
R3 Headlight Relay
R4 Dimmer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
