The underhood fuse block is located in the front of the engine compartment between the windshield washer fluid reservoir and the power steering fluid reservoir on the passenger’s side of the vehicle
Fuses
Usage
1
ALDL
2
Accessory
3
Windshield Wipers
4
—
5
Headlamp Low Beam Left
6
Headlamp Low Beam Right
7
Instrument Panel
8
Powertrain Control Module Battery
9
Headlamp High Beam Right
10
Headlamp High Beam Left
11
Ignition 1
12
Fog Lamps
13
Transmission
14
Cruise Control
15
Coil MDL
16
Injector Bank #2
17
—
18
—
19
Powertrain Control Module Ignition
20
Oxygen Sensor
21
Injector Bank #1
22
Auxiliary Power (Cltr 2)
23
Cigar Lighter
24
Daytime Running Lamps
25
Horn
26
Air Conditioner Clutch
Relays
Usage
27
Headlamp High Beam
28
Headlamp Low Beam
29
Fog Lamps
30
Daytime Running Lamps
31
Horn
32
Air Conditioner Clutch
33
—
34
Accessory
35
—
36
Starter 1
37
Cooling Fan 1
38
Ignition 1
39
Cooling Fan Series/Parallel
40
Cooling Fan 2
Circuit breaker
Usage
41
Starter
42
Export Use
Fuse
Usage
43
—
44
Antilock Brake System
45
Air Pump
46
Cooling Fan 1
47
Cooling Fan 2
The spare fuses are located in numbers 48 through 52.
The fuse puller is located in number 53.

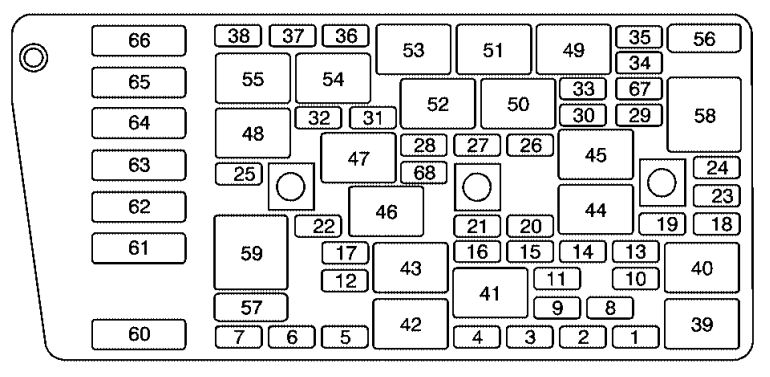

Rear Underseat Fuse Block
To access the fuses, push in the two tabs located at each end of the fuse block cover.
Fuse
Usage
1
Fuel Pump
2
Heater, Ventilation, Air Conditioner Blower
3
Memory Seat, Tilt and Telescoping Steering
4
SDAR (XM Satellite Radio)
5
Driver Door Module
6
Heated Seat Left Rear
7
Power Tilt and Telescoping Steering
8
Supplemental Inflation Restraint
9
—
10
Lamps Park Right
11
Fuel Tank Ventilation Solenoid
12
Ignition 1
13
Lamps, Parking Left
14
Interior Lamp Dimmer Module
15
Navigation
16
Heated Seat Left Front
17
Export Lighting
18
Rear Door Modules
19
Stoplamps
20
Neutral Safety Back-up
21
Audio
22
Retained Accessory Power for Sunroof
23
—
24
—
25
Passenger Door Module
26
Fuel Door/Trunk Release (Body)
27
Interior Lamps
28
Rear HVAC Blower
29
Ignition Switch
30
—
31
Heated Seat Right Front
32
Magnetic Ride Control
33
Heating, Ventilation, Air Conditioning
34
Ignition 3 Rear
35
Antilock Braking System
36
Turn Signal/Hazard
37
Heated Seat Right Rear
38
Dash Integration Module
Micro Relays
Relay
Usage
39
Fuel Pump
40
Parking Lamps
41
Ignition 1
42
Park Brake A
43
Park Brake B
44
Park Shift Interlock
45
Reverse Lamps
46
Retained Accessory Power for Sunroof
47
Rear HVAC Blower
48
—
49
Ignition 3
50
Fuel Tank Door Release
51
Interior Lamps
52
Trunk Release
53
Front Courtesy Lamps
54
Rear Courtesy Lamps
55
Electronic Level Control Compressor
Circuit breaker
Usage
56
Power Seats
57
Power Windows
58
Cigarette Lighter
59
Rear Defog
Fuses
Usage
60
Park Brake
61
Rear Defog
62
Export Brake
63
Audio Amplifier
64
ELC Compressor/Exhaust
65
Cigar Lighter
66
—
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
