Honda Pilot (2006) – fuse box diagram
Year of production: 2006
Primary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 20 | Spare Fuse |
| 2 | 20 | Spare Fuse |
| 3 | 20 | Right Headlight |
| 4 | 15 | ACG S |
| 5 | 15 | Hazard |
| 6 | — | Not used |
| 7 | 20 | Stop |
| 8 | 20 | Left Headlight |
| 9 | 20 | Radio |
| 10 | 40 | Power Window Motor |
| 11 | 40 | Power Seat |
| 12 | 30 | Rear Defroster |
| 13 | 40 | Back Up, ACC |
| 14 | 30 | Rear A/C |
| 15 | 40 | Heater Motor |
| 16 | 30 | Cooling Fan |
| 17 | 7,5 | Spare Fuse |
| 18 | 10 | Spare Fuse |
| 19 | 15 | Spare Fuse |
| 20 | 120 | Battery |
| 21 | 30 | Condenser Fan |
| 22 | 7,5 | MG Clutch |
| 23 | 50 | IGI Main |
| 24 | — | Trailer (accessory) |

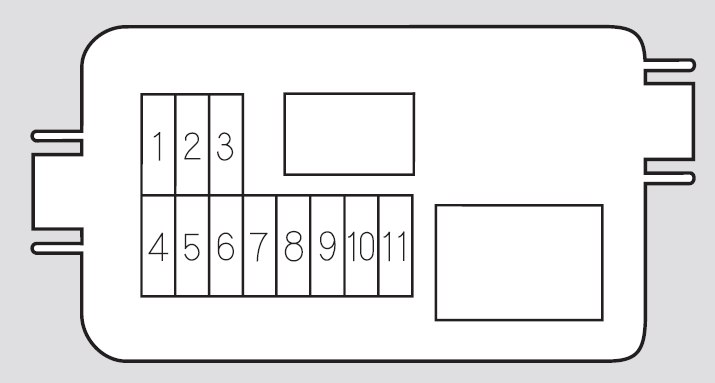

Secondary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 40 | ABS F/S Relay |
| 2 | 20 | VSA F/S Relay |
| 3 | 30 | VSA Motor |
| 4 | 20 | VTM-4 |
| 5 | 10 | ACM |
| 6 | 15 | Rear Accessory Socket |
| 7 | 15 | ETCS |
| 8 | 15 | IG Coil |
| 9 | 15 | LAF |
| 10 | 7,5 | TPMS |
| 11 | (20) | (FR FOG) |
Interior fuse box (driver’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 15 | Fuel Pump |
| 2 | 10 | SRS |
| 3 | 7,5 | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7,5 | Power Mirror, ABS |
| 5 | 7,5 | Daytime Running Light* |
| 6 | 15 | ECU(PCM), Cruise Control |
| 7 | 7,5 | OPDS, Rear Wiper |
| 8 | 7,5 | ACC Relay |
| 9 | 10 | Back-up Lights, Instrument Lights |
| 10 | 7,5 | Turn Signals |
| 11 | 7,5 | VTM-4 |
| 12 | 30 | Front Wiper |
| 13 | — | Not Used |
| *: On Canadian models | ||
Interior fuse box (passenger’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 20 | Driver’s Power Window |
| 2 | 20 | Driver’s Power Seat Reclining |
| 3 | 20 | Heated Seat |
| 4 | 20 | Driver’s Power Seat Sliding |
| 5 | — | Not used |
| 6 | 10 | Daytime Running Light* |
| 7 | 20 | Driver’s side Rear Power Window |
| 8 | 20 | Front Passenger’s Power Window |
| 9 | 15 | Front Accessory Socket, Radio |
| 10 | 15 | Small Light |
| 11 | 10 | Interior Light, Navi |
| 12 | 20 | Power Door Lock |
| 13 | 7,5 | Back Up |
| 14 | 7,5 | Moonroof |
| 15 | 20 | Moonroof |
| 16 | 20 | Passenger’s Side Rear Power Window |
| *: On Canadian models | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
