Honda Civic (1992 – 1995) – fuse box diagram

Honda Civic (1992 – 1995) – fuse box diagram



Year of production: 1992, 1993, 1994, 1995

Passenger compartment

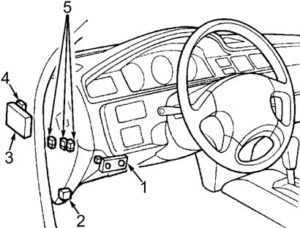

Honda Civic - fuse box diagram - passenger compartment
Honda Civic – fuse box diagram – passenger compartment
  1. Fuse Box
  2. PGM-FI Relay
  3. Cruise Control Unit
  4. Daytime Running Lights Control Unit
  5. Moon Roof Close Relay
    Moon Roof Open Relay
    M/T: Starter Cut Relay

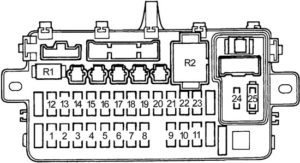

Passenger compartment fuse box

Honda Civic - fuse box diagram - passenger compartment fuse box
Honda Civic – fuse box diagram – passenger compartment fuse box
No. A Circuits
1 30 Moon Roof Motor
2
3 7,5 Integrated Control Unit, Dome Light, Trunk/Cargo Area Light, Data Link Connector (DLC), Option Connector “A”
4 20 Right Rear Power Window Motor
5 20 Right Front Power Window Motor, Power Window Control Unit (del Sol)
20 Left Front Power Window Motor
6 20 Power Door Lock Control Unit
7 20 Left Rear Power Window Motor, Power Window Control Unit (del Sol)
8 20 Left Front Power Window Switch/Motor, Power Window Control Unit (del Sol)
20 Right Front Power Window Motor
9 10 Right High Beam Headlight, Daytime Running Lights Resistor
10 10 Left High Beam Headlight, High Beam Indicator Light, Daytime Running Lights Resistor
11 10 del Sol: Auxiliary Light Relay
12 15 except del Sol: PGM-FI, Alternator, Cruise Control, Gauge Assembly, Electrical Load Detection (ELD) Unit, Vehicle Speed Sensor (VSS)
13 7,5 Power Mirrors, Anti-Lock Brake System, Air Delivery, Blower Motor Relay, Rear Window Defogger Relay, Radiator Fan Relay, Condenser Fan Relay
14 20 Moon Roof Open/Close Relays, Windshield Washer Motor, Rear Window Washer Motor, Integrated Control Unit, Windshield Wiper Motor, Rear Window Wiper Motor, Power Window Relay
15 10 Clock, Gauge Assembly, Hazard Switch, Back-Up Lights, Interlock System, Integrated Control Unit, Roof Unlatched Indicator (del Sol), Shift Lock Solenoid, A/T Gear Position Switch, Master Switch (del Sol)
16 7,5 Daytime Running Lights Control Unit, Option Connector “C”
17 10 Daytime Running Lights Control Unit, Option Connector “B”
18 7,5 PGM-FI, Integrated Control Unit, Engine Control Module (ECM)
19 10 Dash Lights, Dimming Signal, Parking Lights, Tail Lights, License Plate Lights, Console Lights, Option Connector “D”
20
21 10 Right Low Beam Headlight, Auxiliary Light Switch (del Sol)
22 10 Left Low Beam Headlight
23 15 Stereo Radio/Cassette or CD Player, Cigarette Lighter, Option Connector “E”
24 15 PGM-FI, Alternator, Cruise Control, Gauge Assembly, SRS Control Unit, Vehicle Speed Sensor (VSS)
25 10
Relay
R1 Power Window
R2 except del Sol ’94-’95: Turn Signal Hazard

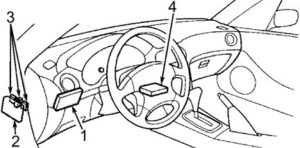

Honda Civic - fuse box diagram - passenger compartment
Honda Civic – fuse box diagram – passenger compartment
  1. Fuse Box
  2. Cruise Control Unit
    Daytime Running Lights Control Unit
  3. Auxiliary Light Relay
    PGM-FI Main Relay
    M/T: Starter Cut Relay
    Turn Signal Flasher

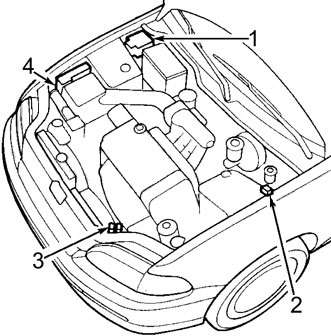

Engine Compartment

Honda Civic - fuse box diagram - engine compartment
Honda Civic – fuse box diagram – engine compartment
  1. Fuse Box
  2. Daytime Running Lights Resistor
  3. A/C Compressor Clutch Relay
    A/C Condenser Fan Relay
  4. with ABS: Relay Box

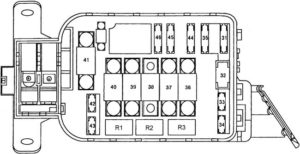

Engine Compartment Fuse Box

Honda Civic - fuse box diagram - engine compartment fuse box
Honda Civic – fuse box diagram – engine compartment fuse box
No. A Circuits
31 15 PGM-FI Electronic Control Unit, PGM-FI Main Relay
32 7,5 PGM-FI Electronic Control Unit / Engine Control Module (ECM), Clock, Stereo Radio/Cassette Player
33 15 Radiator Fan Relay
34 30 Rear Window Defogger
15 Rear Window Defogger
35 20 Condenser Fan Motor, A/C Compressor Clutch
36 50 Power Distribution To Fuse No. 1, 3 & 6, Power Windows, Option Connector “A”
37 30 Blower Motor
38
39 50 Ignition Switch (Bat)
40 40 Combination Light Switch, Fuse No. 17, Daytime Running Lights
41 80 Power Distribution (Main Fuse)
42 20 Horns, Brake Lights, Key Interlock Solenoid, Cruise Control, Engine Control Module (ECM)
15 Horns, Brake Lights, Key Interlock Solenoid
43 10 Turn Signal Lights, Turn Signal/Hazard Relay, Hazard Warning Switch
44
45
46
Relay
R1 Rear Window Defogger
R2 Blower Motor
R3 Radiator Fan

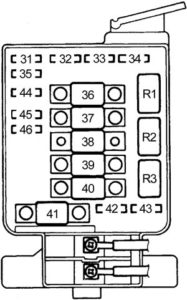

Engine Compartment Fuse Box (’94-’95)

Honda Civic - fuse box diagram - engine compartment fuse box
Honda Civic – fuse box diagram – engine compartment fuse box
No. A Circuits
31 15 PGM-FI Main Relay
32 7,5 Engine Control Module (ECM), Clock, Stereo Radio/Cassette Player
33 15 Radiator Fan Relay
34 30 Rear Window Defogger
15 del Sol: Rear Window Defogger
35 20 Condenser Fan Motor, A/C Compressor Clutch
36 50 Power Distribution To Fuse Nos. 1, 3 & 6, Power Windows, Option Connector “A”
37 30 Blower Motor
38
39 50 Ignition Switch (Bat)
40 40 Combination Light Switch, Fuse No. 17
41 80 Power Distribution (Main Fuse)
42 20 Horns, Brake Lights, Key Interlock Solenoid
15 del Sol: Horns, Brake Lights, Key Interlock Solenoid
43 10 Turn Signal Lights, Turn Signal/Hazard Relay
44
45
46
Relay
R1 Radiator Fan
R2 Blower Motor
R3 Rear Window Defogger

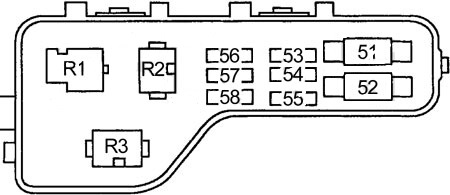

Engine Compartment Relay Box (with ABS)

Honda Civic - fuse box diagram - engine compartment relay box
Honda Civic – fuse box diagram – engine compartment relay box
No. A Circuits
51 50 ABS Pump Motor
52
53
54 15 ABS Control Unit (+B2)
55 20 ABS Control Unit (+B1)
56
57 7,5 ABS Control Unit
58
Relay
R1 ABS Pump Motor
R2 Rear ABS Fail-Safe
R3 Front ABS Fail-Safe

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
