Ford Windstar (1998) – fuse box diagram

Ford Windstar (1998) – fuse box diagram

Year of production: 1998

Main fuse panel under instrument panel

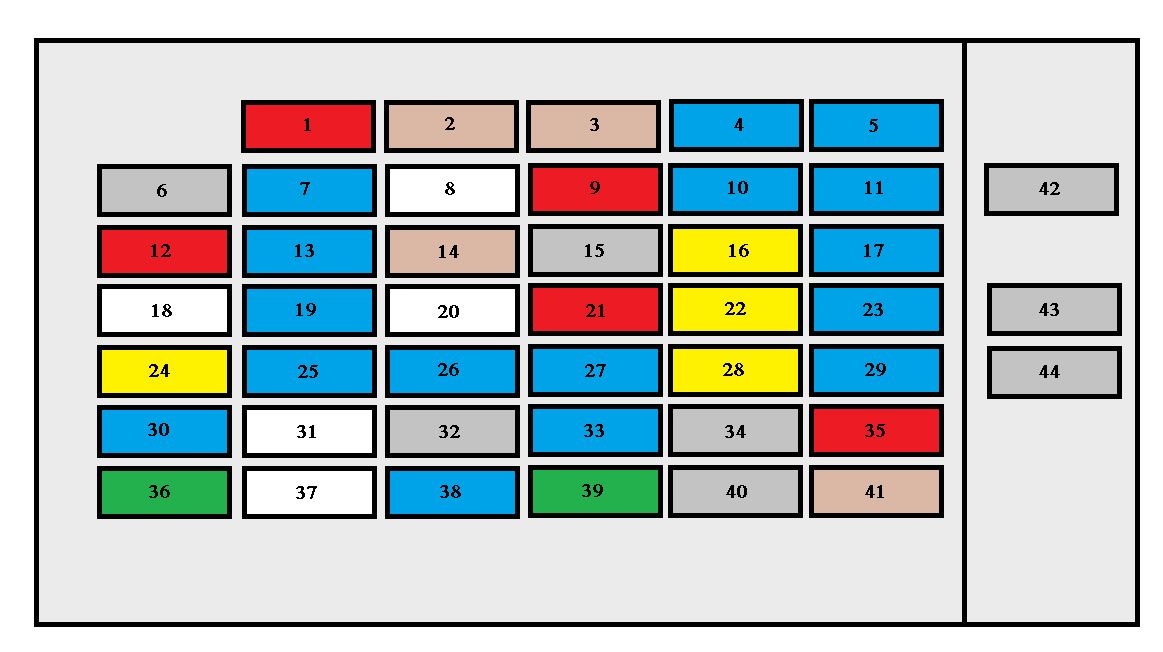

Ford Windstar – fuse box diagram – instrument panel
Ford Windstar – fuse box diagram – instrument panel
Fuse Name Ampere rating [A] Circuit protected
1 Power Mirror 10 Data link Connector (DLC)/Power Mirrors
2 Prove Out 10 Start interrupt relay/GEM
3 Dimmer Illumination 5 Instrument illumination
4 Headlamp 15 LH headlamp (low Beam)
5 Trailer Tow 15 Trailer park lamps
6 Not used
7 Stoplamp 15 Brake On/Off (BOO) switch, stoplamps, trailer RH and LH relay, brake shift interlock, RAP module, speed control module, trailer electric brake module, ABS module, PCM
8 Audio/Amp 10 Radio amplifier, subwoofer amplifier
9 Park Lamps 10 ParkLamps, side marker lamps, license lamps, trailer park lamp relay, electric brake module
10 Headlamp 15 RH headlamp (Low beam)
11 Fusing 15 I/P fuses 3 and 9
12 Run/Acc 10 GEM, RAP module, auxiliary warning module, overhead console
13 Audio 15 Radio, CD disk changer, remote headphone
14 Run/Start 5 Instrument cluster, auxiliary warning module, air bag
15 Not used
16 Horn 20 Horns
17 Fog lamp 15 Front fog lamps
18 Front wiper 25 Wiper relays, wiper, washer pump
19 GEM 15 GEM, RAP module
20 Ignition 25 Ignition coil, ignition capacitor, PCM power relay
21 Run 10 Shiftlock actuator, rear window defrost, GEM, air bag module, A/C heater control switch, blend door actuator
22 Power Access 20 Rear cigar lighter, power plug
23 Flash to Pass 15 Flash to pass
24 Rear wiper 20 Rear wiper, rear washer pump
25 Hazards 15 Instrument cluster, turn signal lamps
26 Trailer 15 Trailer turn, stop, hazard lamps
27 Turn Lamps 15 Electronic flasher
28 Front Cigar 20 Front cigar lighter
29 Interior illumination 15 Interior lamps, battery saver relay, delayed accessory relay
30 Speed control 15 ABS module, speed control module, brake pressure switch
31 Load Leveling 10 Rear air suspension
32 Not used
33 ABS 15 ABS lamp relay, back-up lamps, GEM, RAP module, day, night mirror
34 Not used
35 Not used
36 Blower 30 Front blower motor
37 Power Door Locks 20 Power door lock
38 High Beam 15 LH and RH high beams
39 Not used
40 Not used
41 Autolamps 5 Autolamp relay, day, night mirror

Main fuse and relay panel in engine compartment

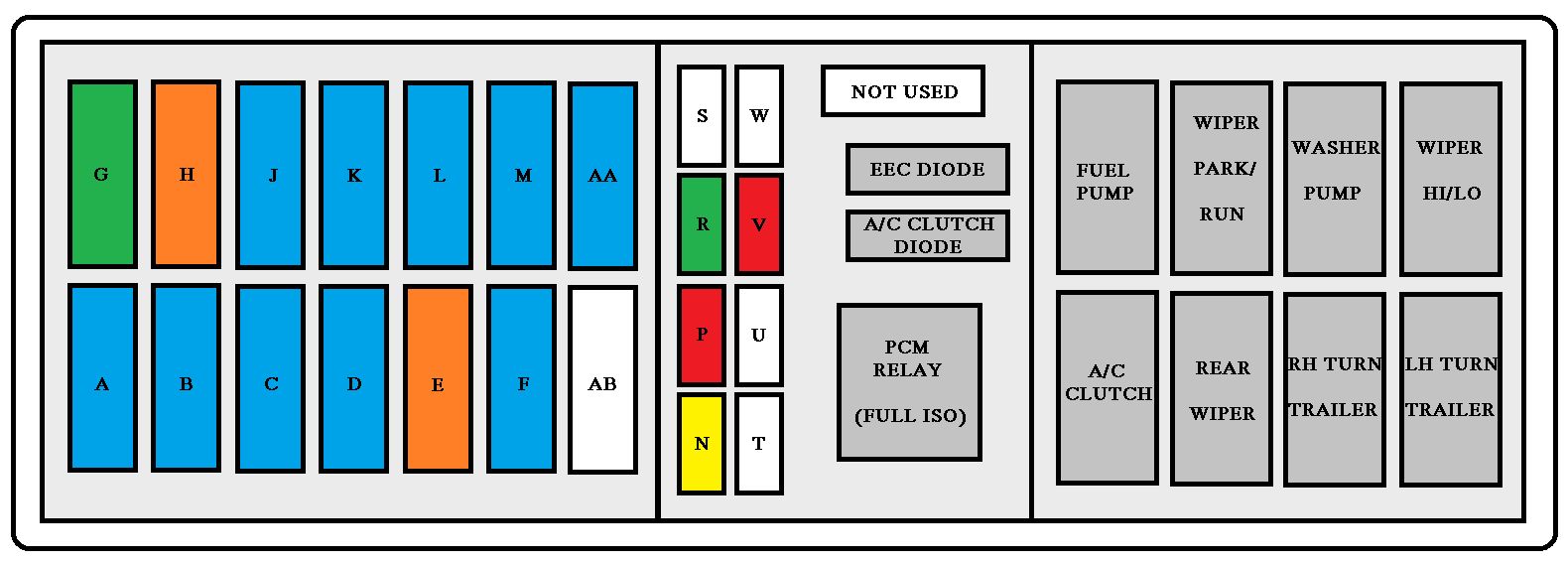

Ford Windstar – fuse box diagram – engine compartment
Ford Windstar – fuse box diagram – engine compartment
Fuse Name Ampere rating [A] Circuit protected
A Trailer tow 50 Trailer towing
B Fan-Hi 60 Engine cooling fans (HI speed)
C Start 60 Starter motor solenoid, ignition switch, I/P fuse panel (fuses 2, 30, 36)
D Ignition 60 Ignition switch, I/P fuse panel (fuses 8, 12, 14, 18, 20, 21, 24, 27, 33)
E Rear blower 40 Auciliary blower motor
F Seat 60 Power seats
G Windows 30 CB Power windows
H Fan-Lo 40 Engine cooling fans (LO speed)
J Battery 60 Power accessory, I/P fuse panel (fuses 1, 7, 13, 19, 25, 31, 37)
K Lights 60 Headlamps, I/P fuse panel (fuses 10, 11, 23, 29, 35, 41)
L ABS 60 ABS
M Heated backlight 60 Heated backlight, I/P fuse panel (fuses 22, 28, 16)
N Fusel 20 Fusel pump
P Air bag 10 Air bag module
R PCM 30 PCM
S Not used
T Not used
U Not used
V Trans light 10 Transmission control switch, canister vent solenoid
W Not used
AA Air Ride 60 Air ride suspension
AB Not used
Diode Circuit protection
D1 Hood switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
