Eagle Summit (1994 – 1996) – fuse box diagram

10 July 2019 admin Eagel, Summit 0

Eagle Summit (1994 – 1996) – fuse box diagram

Year of production: 1994, 1995, 1996

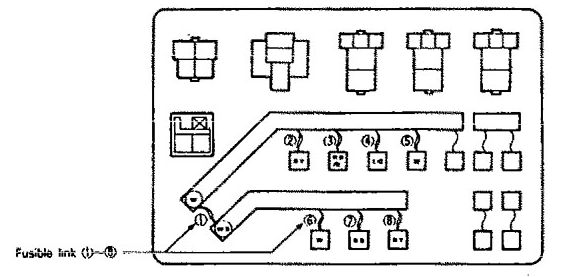

Relay box in engine compartment

Eagle Summit – fuse box diagram – engine compartment (relay box)
Eagle Summit – fuse box diagram – engine compartment (relay box)
No. Circuit Housing color A
1 Fusible link No.  (6), (7), (8) <when the engine is stopped> and Fusible link No, (2), (3), (4), (5), (9) dedicated fuse No. (1) <after start of the engine> circuit Black 80
2 MFI circuit Blue 20
3 Headlight, taillight and generator circuit Pink 30
4 Radiator fan motor, condenser fan motor and A/C compressor circuit Pink 30
5 Ignition switch circuit Green 40
6 Multi-purpose fuse (in the junction block) No. (1), (6), (8), (13), (14) Green 40
7 Power window circuit Pink 30
8 Defogger circuit Blue 20
9 ABS circuit Yellow 60

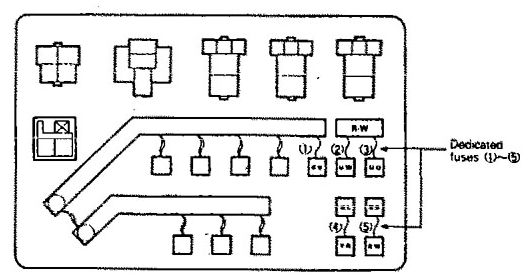

Eagle Summit – fuse box diagram
Eagle Summit – fuse box diagram
Power supply circuit No A Housing color Circuit
Battery 1 10 Red Hazard light circuit
Tailight relay (Battery) 2 10 Red Tailight and illumination circuit
3 — — —
Headlight relay (Battery) 4 10 Red Upper beam indicator circuit
Battery 5 10 Red ABS circuit

Dedicated fuse (6) – (7) (A/C compressor clutch relay bracket in engine compartment)

Power supply circuit No A Housing color Circuit
Battery 6 10 Red A/C compressor
Condenser fan motor relay (Battery) 7 20*1 Yellow Condenser fan motor circuit
25*2
*1: 1.5L engine
*2: 1.8L engine

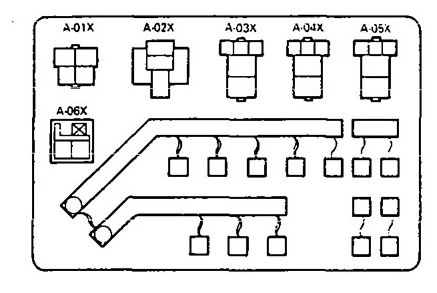

Eagle Summit – fuse box diagram – relay engine compartment
Eagle Summit – fuse box diagram – relay engine compartment
No Name
A-01X Generator relay
A-02X —
A-03X Radiator fan motor relay
A-04X Headlight relay
A-05X Tailight relay
A-06X IOD or storage connector

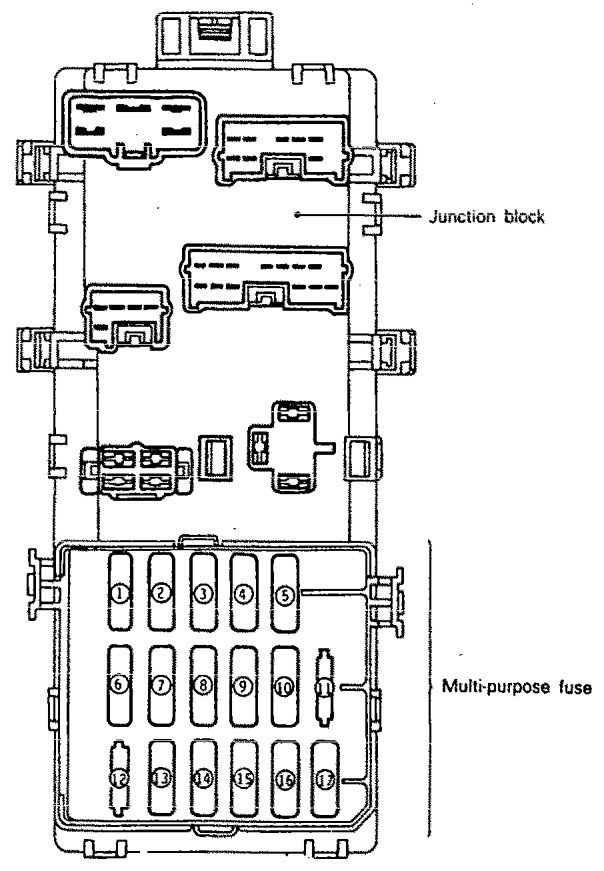

Multi-Purpose Fuse Block

Eagle Summit – fuse box diagram
Eagle Summit – fuse box diagram
Power supply circuit No. A Housing color Load circuit
Battery 1 20 Yellow Blower motor
Ignition switch IG1 2 10 Red Back-up light, buzzer assembly and combination meter <3A/T>, SRS diagnosis unit
3 10 Red Combination meter, buzzer assembly and auto-cruise control main switch
ACC 4 15 Blue Cigarette lighter and remote controlled mirror
5 10 Red Clock, radio and tape player and auto-cruise control unit
Battery 6 15 Blue Stop light
Ignition switch IG1 7 10 Red Turn signal and hazard flasher unit, SRS diagnosis unit
Battery 8 15 Blue Door lock control relay
Ignition switch ACC 9 10 Red Horn
10 15 Blue Wiper and washer motor
— 11 — — —
Battery 12 — — —
13 — — —
14 10 Red Dome light, luggage compartment light, clock, radio and tape player, combination meter, door lock control relay, engine control module, transaxle control module
Ignition switch IG2 15 10 Red Blower motor relay, defogger relay, power window relay, automatic compressor control unit, ABS power relay, ABS valve relay and DRL control unit, buzzer assembly, auto-cruise control unit and automatic seat belt control unit
16 — — —
17 10 Red Cobination meter (4A/T> and transaxle control module

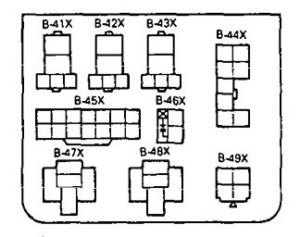

Passenger compartment relay box

Eagle Summit – fuse box diagram – passenger compartment relay box
Eagle Summit – fuse box diagram – passenger compartment relay box
Connector No. Name
B-41X ABS power relay
B-42X Power window relay
B-43X Horn relay
B-44X Door lock control unit
B-45X J/C (for ground circuit)
B-46X —
B-47X Defogger relay
B-48X Starter relay
B-49X —
— —
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
