Ford Ranger mk2 (2006 – 2011) – fuse box (EU version)

Ford Ranger mk2 (2006 – 2011) – fuse box (EU version)

Year of production: 2006, 2007, 2008, 2009, 2010, 2011

Central fuse box

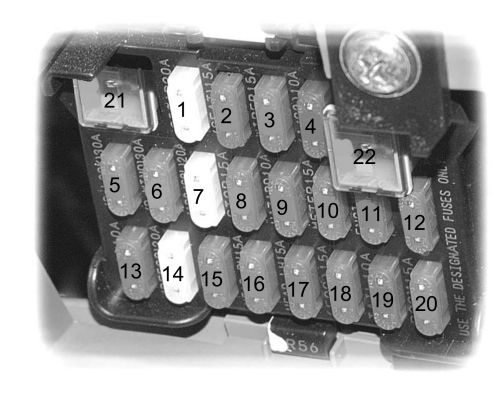

Ford Ranger mk2 – central fuse box
Ford Ranger mk2 – central fuse box
Fuse Ampere rating [A] Colour Circuits protected
1 20 yellow Cigar lighter, audio, electric exterior mirrors, auxiliary power socket
2 15 blue Heated seat
3 15 blue Windscreen wipers and washers
4 10 red Air conditioning, ABS relay
5 30 pink Central locking
6 30 pink Electric windows
7 20 yellow ABS solenoid
8 15 blue Brake lights, horn
9 10 red Hazard warning flashers
10 15 blue Instrument cluster, reversing lamps, direction indicators, remote free-wheel (RFW) system
11 15 blue Engine management systems
12 Not used
13 10 red Air conditioning magnetic clutch
14 20 yellow Heated rear window
15 10 red Rear fog lamp
16 15 blue Right-hand headlamp
17 15 blue Left-hand headlamp
18 15 blue Front fog lamp
19 10 red Rear lamps, side lamps, number plate lamp
20 15 blue Interior lamps, warning system
21 Not used
22 30 pink Electric windows

Auxiliary fuse box

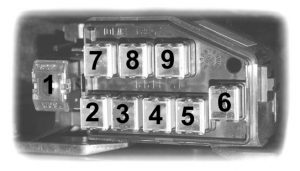

Ford Ranger -fuse-box-diagram - auxiliary box
Ford Ranger -fuse-box-diagram – auxiliary box
Fuse Ampere rating Colour Circuits protected
1 80 For protection of all circuits
2 60 Glow plug
3 40 Engine management systems, instrument cluster, cigar lighter1, electric windows1
4 60 Headlamps
5 20 Injectors, fuel injection system
6 40 ABS motor, hazard warning lamps, brake lamps
7 30 Fuel warmer
8 60 Air conditioning, windscreen washers and wipers
9 60 Air conditioning, heated rear window1or central locking1or ABS solenoid1or electric windows1or tail lamps or fog lamps1
1Some variants

Inclinometer and compass fuse

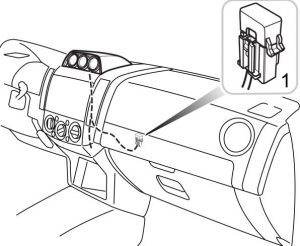

Ford Ranger mk2 – Inclinometer and compass fuse
Ford Ranger mk2 – Inclinometer and compass fuse
Fuse Ampere rating Colour Circuits protected
1 2 For protection of all inclinometer and compass circuits

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
