Ford Mustang (1987 – 1993) – fuse box diagram

Ford Mustang (1987 – 1993) – fuse box diagram

Year of production: 1987, 1988, 1989, 1990, 1991, 1992, 1993

Fuse box

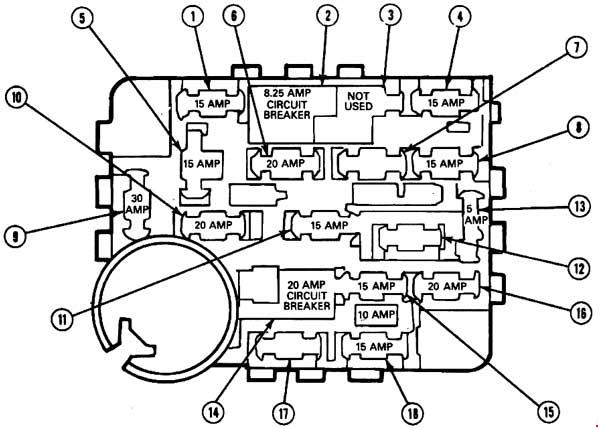

Ford Mustang – fuse box diagram
Ford Mustang – fuse box diagram
Fuse Ampere Rating [A] Description
1 15 Stoplamps, Hazard Warning Lamps, Speed Control
2 8.25 Circuit Breaker: Windshield Wiper, Windshield Washer Pump, Interval Wiper, Washer Fluid Level Indicator
3
4 15 Tail Lamps, Parking Lamps, Side Marker lamps, Instrument Cluster Illumination Lamps, License Lamps
5 15 Turn Signal Lamps, Backup Lamps, Fluids Module, Heated Rear Window Relay
6 20 A/C Clutch, Heated Rear Window Control, Lugagge Compartment Lid Release, Speed Control Module, Clock/Radio Display, A/C Throttle Positioner, Day/Night Illumination Relay
7
8 15 Courtesy Lamps, Key Warning Buzzer, Fuel Filler Door Release, Radio, Power Mirror
9 30 Heater Blower Motor
10 20 Flash-to-Pass, Low Oil Warning Relay
11 15 Radio, Tape Player, Premium Sound, Graphic Equalizer
12 15 Air Bag system
13 5 Instrument Cluster Illumination Lamps, Radio, Climate Control, Ash Receptacle Lamps, Floor “PRNDL” Lamp
14 20 Circuit Breaker: Power Windows 15 Amp Fuse
15 15 Fog Lamps
16 20 Horn, Cigar Lighter
17
18 15 Warning Indicator Lamps, Throttle Solenoid Positioner, Low Fuel Module, Dual Timer Buzzer, Tachometer, Engine Idle Track Relay, Fluid Module/Display

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
