Ford Mustang (1994 – 1998) – fuse box diagram

Ford Mustang (1994 – 1998) – fuse box diagram

Year of production: 1994, 1995, 1996, 1997, 1998

Passenger Compartment Fuse Box

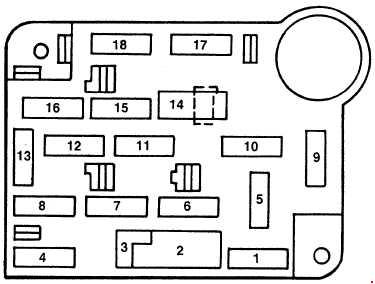

Ford Mustang – fuse box diagram – passenger compartment
Ford Mustang – fuse box diagram – passenger compartment
Fuse Ampere Rating [A] Description
1 15 Turn signal lamps
Back-up lamps
Airbag module
DRL module
Overdrive cancel
Brake shift solenoid
Heated backlite relay coil
Conv. top relay coil
Ilium, entry module (shut-off)
2 30 Windshield wiper and washer systems
4 10 Airbag module (aux. pwr.)
5 15 Headlamp switch
Exterior lamps
Cluster ilium.
6 15 Clock (ilium.)
Speed control amp.
Air conditioning clutch coil
RKE module (shut-off)
Anti-theft module (shut-off)
7 10 ABS
8 10 Chime for keys in ignition
Courtesy lamps
Engine compartment lamp
Glove compartment lamp
Power mirrors
Radio (MCM)
Instrument cluster (MCM)
Clock
Trunk lamp
Anti-theft (door open sig)
9 15 Hazard warning
Stoplamps
Brake shift interlock sol.
10 15 IMRC (Cobra only)
20 Heated oxygen sensors
11 15 Radio
12 20 Circuit Breaker:
Deck lid release
Door locks
13 10 Instrument panel
Illumination lamps
PRNDL ilium.
Ashtray ilium
14 20 Circuit Breaker: Power windows
15 10 Low oil module
Low coolant module
Safety belt chime
Cluster warning lamps
Cluster gauges
16 20 Flash-to-pass
Fog lamps
Anti-theft module
Low beams
Ext. lamps
17 30 Air conditioning and heater blower motor
18 20 Generator warning lights
EEC pwr. relay coil

Engine Compartment Fuse Box

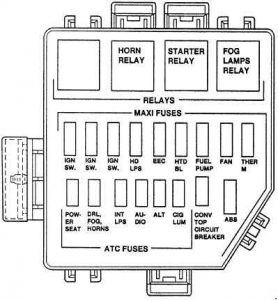

Ford Mustang – fuse box diagram – engine compartment
Ford Mustang – fuse box diagram – engine compartment
Number Ampere Rating [A] Description
IGN SW 40 Turn signal lamps
Backup lamps
Air bag module
DRL module
Overdrive cancel
Brake shift solenoid
Heated backlight relay coil
Convertible top relay coil
Illuminated entry module (shut-off)
HEGO (4.6L only)
ABS
Low oil module
Low coolant module
Safety belt chime
Cluster warning lamps
Cluster gauges
Transmission shift module (4.6L only)
Generator warning lights
EEC power relay coil
Ignition coil
TFI module (4.6L only)
Starter relay
IGN SW 40 Windshield washer and wiper systems
Clock (illumination)
Speed control amp.
Air conditioning clutch coil
RKE module (shut-off)
Anti-theft module (shut-off)
Radio
Power windows
IGN SW 40 Air conditioning and heater blower motor
HD LPS 50 Headlamps
Air bag module (aux. pwr.)
Chime for key in ignition
Courtesy lamps
Engine compartment lamp
Glove compartment lamp
Power mirrors
Radio (MCM)
Instrument cluster (MCM)
Clock
Trunk lamp
Anti-theft (door open sig.)
Flash-to-pass
Low beams
Ext. lamps
Deck lid release
Door locks
EEC 20 EEC power
HTD BL 40 Rear window defrost
Fuel Pump 20 Electric fuel pump
Fan 60 Elec. drive fan
ABS 60 Anti-lock brakes
Power Seats 25 Power seats
DRL 20 Daytime running lights
Int. Lamps 25 Interior lamps
Audio 25 Radio amplifier
Subwoofer amplifier
ALT 20 Generator regulator
Cigar Lighter 30 Cigar lighter
Powerpoint
Convertible Top 30 Circuit Breaker: Convertible top
Thermactor 30 Thermactor (Cobra models)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
