Ford Mustang (1983 – 1986) – fuse box diagram

Ford Mustang (1983 – 1986) – fuse box diagram

Year of production: 1983, 1984, 1985, 1986

Fuse box

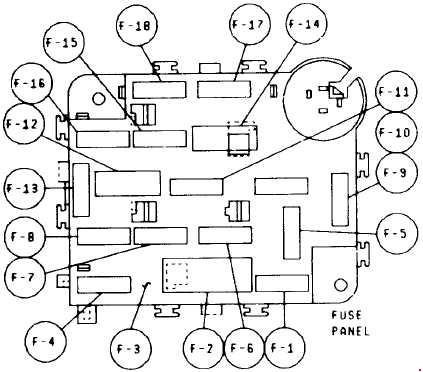

Ford Mustang – fuse box diagram
Ford Mustang – fuse box diagram
Fuse Ampere Rating [A] Description
1 15 Stop Lights, Hazard Warning Lamps, Speed Control
2 6 Circuit Breaker: Windshield Wiper/Washer System
3
4 10 Exterior Lights, Instrument Illumination, Upshift Relay Coil
5 15 Turn Signal and Back-up Lights
6 20 Air Conditioning Clutch, Heated Rear Window Relay Coil, Trunk Release, Speed Control, Clock, Lights out Warning
7
8 15 Courtesy Lights, Ignition Key Warning Buzzer, Fuel Filler Door Release
9 15 Heater
30 Air Conditioning System
10 20 Flash to Pass
11 15 Radio, Premium Sound
12 20 Circuit Breaker: Power Door Locks
13 5 Instrument Illumination
14 20 Circuit Breaker:Power Window
15
16 20 Horn, Cigar Lighter, Clock
17
18 10 Carburetor Circuits, Dual Timer Buzzer, Tachometer, Turbo Boost Indicators, Warning Indicators, Low Fuel Warning

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
