Ford Galaxy (1995 – 2006) – fuse box diagram

Ford Galaxy (1995 – 2006) – fuse box diagram

Year of production: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Type 1

Passenger Compartment Fuse Box

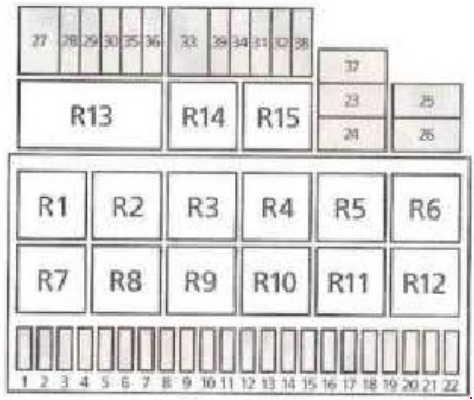

Ford Galaxy – fuse box diagram – passenger compartment (type 1)
Ford Galaxy – fuse box diagram – passenger compartment (type 1)
Fuse Ampere Rating [A] Description
1 10 Dipped beam left-hand side, headlight levelling left-hand side, instrument cluster
2 10 Dipped beam right-hand side, headlight levelling right-hand side, instrument cluster
3 3 Number plate light, parking lights
4 20 Rear screen wiper, 2nd heat exchanger
5 10 Wiper motor, heated washer jets
6 20 Heater blower, air conditioning
7 5 Tail light right-hand side, chime, right side marker light
8 5 Tail light left-hand side, chime, left side marker light
9 20 Heated rear screen
10 15 Exterior lighting switch, fog lamps, rear fog lamps
11 10 Main beam left-hand side, main beam control light
12 10 Main beam right-hand side
13 10 Horn
14 15 Reversing lights, automatic transmission, interior lights
15 10 EWS or engine control unit, crankcase heater
3 EWS or engine control unit, AGR valve, VMV valve, EWS control unit
16 3 Digital clock, front interior lights, instrument cluster
17 10 Direction indicator
18 10 Fuel shut-off switch, engine control unit or fuel pump, Hego-sensor
19 30 Elec-blower
20 10 Brake light switch, brake lights, trailer coupling
21 10 Interior lights front/rear, digital clock, vanity mirror lights, luggage compartment light, radio, instrument cluster
22 10 Cigar lighter
23 7,5 Cooling blower, air conditioning
24 30 Wiper motor
25 60 Preheat system
3 Engine control unit
26 5 Hego sensor heater
27 50 Heated windscreen
28 30 ABS – hydraulic unit
29 30 ABS – valves
30 10 Central locking
31 10 Horn (anti-theft alarm system)
32 10 Hazard flasher (anti-theft alarm system)
33 30 Blower auxiliary heating
34 25 Rear blower air conditioning
35 20 Permanent plus (trailer coupling)
36 10 Telephone
37 30 Electrically operated windows
38 20 Electrically operated seats
39 25 Front blower air conditioning
Relay
R1 Auxiliary heating
R2 Rear screen wiper
R3 Supply relay
R4 Relief relay
R5
R6 Direction indicator warning light
R7 Headlight washer
R8 Wiper/washer system (front)
R9 Chime
R10 Jumper for rear fog lights
R11 Horn
R12 Fuel pump (petrol)
Glow plugs (diesel)
R13 Light relay
R14 Heated rear screen
R15 Wiper relief relay

Additional relay box (under the instrument panel)

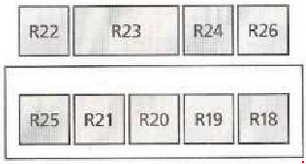

Ford Galaxy – fuse box diagram – addittional relay box
Ford Galaxy – fuse box diagram – addittional relay box
Number Relay
18 Auxiliary heating
19 Daytime running light
20 Freewheel lock
21 Rear vent windows
22 Heated front screen
23 Servotronic 4×4
24 Window lifter relay
25 Cut-off relay
26 Warning timer unit

Engine compartment fuse box

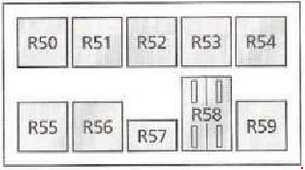

Ford Galaxy – fuse box diagram – engine compartment fuse box
Ford Galaxy – fuse box diagram – engine compartment fuse box
Number Ampere Rating [A] Description
57 30 Secondary blower
58 40 Cooling blower motor
59 30 Cooling blower castor
40
Relay
50 3rd blower position
51 Full throttle cut-off
52 2nd blower position
53 Deceleration relay
54 1st blower position
Water pump protection diodes
55 Automatic transmission
56 Secondary blower

Type 2

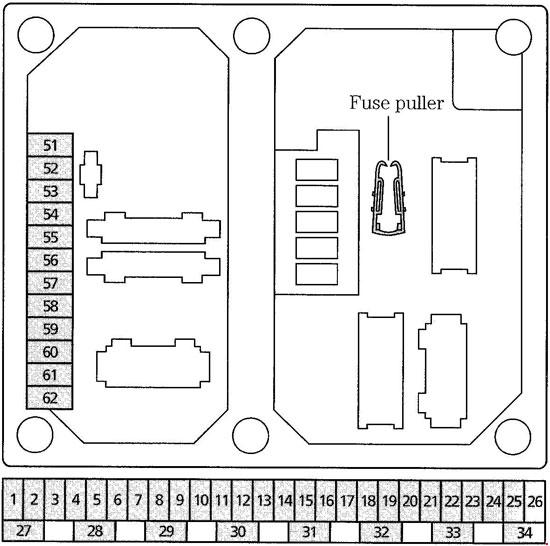

Ford Galaxy – fuse box diagram – type 2
Ford Galaxy – fuse box diagram – type 2
Fuse Ampere Rating [A] Description
1 20 Heated front seats
2 10 Electrically operated windows, electrically operated and heated mirrors, electrically operated rear vent windows
3 5 Digital dock,glove compartment light, sunroof, parking aid, thermo switch outside temperature, ABS, airconditioning Speed control, navigation system, central junction box
4 10 Engine management, engine immobilisation system, reversing light
5 15 Reversing light, automatic transmission, 4-wheel drive
6 10 Horn
7 25 Cigar lighter
20
8 30 Auxiliary heating, additional battery, trailer coupling
9 30 ABS
10 30 ABS
11 20 Headlamp washer
12 15 Digital clock, central locking, rear wiper, sunroof
13 3 Engine management, fuei shut-off relay
14 10 Fuel supply (diesel)
20 Fuel pump, ignition relay
15 30 Cooling fan extended run (2.8 and diesel)
16 30 Thermo switch, cooling fan speed 1
17 10 Automatic transmission
30 Glow plugs (diesel 66kw)
18 5 Thermo switch, cooling fan speed 2, air conditioning, Instrument panel, cooling fan extended run
19 5 Central locking, telephone, instrument panel, diagnosis, radio, air conditioning, parking aid
20 10 Brake lights
21 25 Air conditioning
30
22 25 Air conditioning
30
23 10 Radio, CD changer
24 25 Booster heater (diesel)
25 3 Radio, telephone, seat belt warning tone, Central junction box
26 30 Starter, automatic transmission, ignition
27 25 Cooling fan extended run, air conditioning, rear and front blower, heated front screen, auxiliary heating
28 10 Water pump (V6), thermo switch coolant, ABS, Cooling fan extended run, air conditioning, wiper switch
29 5 Front wiper, heated washer jets, blower relay, Air conditioning, central junction box, auxiliary heating, heated front and rear screen, heated washer jets
30 3 Number plate light
31 15 Fron fog lights
32 3 Relay ignition, fuel pump, engine management, fuel pump shut-off relay, glow plugs (diesel)
33 25 Front screen wiper
Auxiliary heating, additional battery, luggage compartment light, trailer coupling
34 25 Heater blower
Central fuse box (under the instrument panel level 1)
51 20 Heated rear screen, heated mirrors
52 20 Direction indicators
53 10 Consumer cut off relay (interior lights)
54 10 Alarm horn
55 5 Power supply on board electronics
56 5 Parking light right hand side
57 5 Parking light left hand side
58 10 Headlamp levelling, Daytime running lights (Scandinavia)
59 10 Dipped beam left hand side
60 10 Dipped beam right hand side
61 10 Main beam left hand side
62 10 Main beam right hand side

Additional fuses (under drivers seat)

Number Ampere Rating [A] Description
76 15 Luggage compartment sockets
77 25 Additional battery (if fitted)
30
Relay
20 Auxiliary heating

Central fuse box (under the instrument panel, level 2)

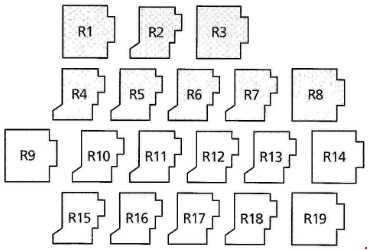

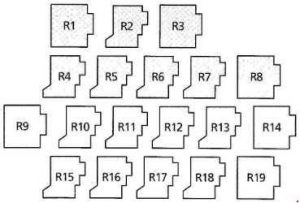

Ford Galaxy – fuse box diagram – central fuse box – under the instrument panel – level 2
Ford Galaxy – fuse box diagram – central fuse box – under the instrument panel – level 2
Number Circuits Protected
1 Cooling fan level 2 (2.0 i and 2.3 i DOHC engines)
Electrically operated mirrors (2.8 i CD-V6 engine)
2 Cooling fan level 1 (2.0 i and 2.3 i DOHC engines)
Electrically operated mirrors (2.8 I CD-V6 engine)
3 Inverter relay (2.0 i and 2.3 i DOHC engines)
Radio telephone (2.8 i CD-V6 and turbo diesel engines)
Catalytic converter (2.8 i CD-V6 engine)
4 Auxiliary heating, air conditioning
Belt warning buzzer (2.8 i CD-V6 engine)
5 Engine cooling fan (2.8 i CD-V6 and turbo diesel engines)
6 Automatic transmission
7 Auxiliary heating, cooling fan level 2
8 Headlamp washer
9 Daytime running lights (Scandinavia)
10 Horn
11 Full throttle shut off
12 Air conditioning
13 Blocking diode (2.8 i CD-V6 and turbo diesel engines)
14 Engine immobilisation system
15 Switch recirculated air (air conditioning and auxiliary heating)
16 Electrically operated rear vent windows
17 Auxiliary heating
18 Cooling system
Radio telephone (2.8 i CD-V6 engine)
19 Blocking diode
Diesel relay (turbo diesel engine)

Central fuse box (under the instrument panel, level 3)

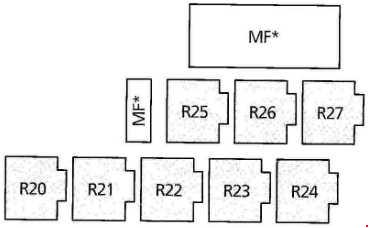

Ford Galaxy – fuse box diagram – central fuse box – under the instrument panel – level 3
Ford Galaxy – fuse box diagram – central fuse box – under the instrument panel – level 3
Number Ampere Rating [A] Description
* 50 Heated front screen
* 30 Electrically operated windows, electrically operated rear vent windows
* 80 Glow plugs (diesel engine)
* 50 Glow plugs (diesel engine)
* 30 Cooling fan level 2
* 40 Cooling fan
* 40 Cooling fan
Relay
20 Auxiliary heating
21 Wiper motor
22 Secondary air injection
Glow plug relay – stage 2 (turbo diesel engine)
23 Heated front screen
24 Fuel pump (petrol engines)
Glow plug relay (turbo diesel engine)
25 Air conditioning (2.0 i and 2.3 i DOHC engines)
Glow plug relay – stage 1 (turbo diesel engine)
Cooling fan (2.8 i CD-V6 engine)
26 Starter power relay
* The location of the maxifuses depends on the model.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
