Ford Fusion (from 2013) – fuse box diagram Europe Version)

Ford Fusion (from 2013) – fuse box diagram Europe Version)

Year of production: 2013, 2014, 2015, 2016, 2017, 2018

Power Distribution Box

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

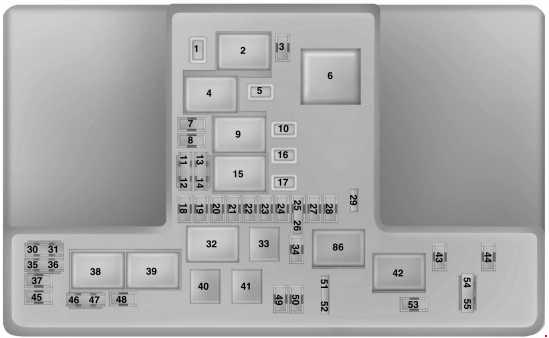

Ford Fusion – fuse box diagram – power distribution box
Ford Fusion – fuse box diagram – power distribution box
Number Ampere ratting [A] Description
1 30 2015-2018: Panoramic moonroof
25 2013-2014: Wiper motor #2
3 15 Rain sensor
5 20 Power point 3 – Back of console
7 20 Powertrain control module – vehicle power 1
Powertrain control module power
8 20 Powertrain control module – vehicle power 2
Emission components
10 20 Power point 1 – driver front
11 15 Powertrain control module – vehicle power 4
Ignition coils
12 15 Powertrain control module – vehicle power 3
Non-emission components
13 10 2013-2016: Powertrain control module – vehicle power 5 (except Hybrid)
14 10 2013-2016: Powertrain control module – vehicle power 6 (except Hybrid)
16 20 Power point 2 – console
17 20 Hybrid (2013-2016): Transmission oil
18 10 except Hybrid:
2013-2014: Powertrain control module – keep alive power
Hybrid:
Powertrain and hybrid powertrain control module keep alive power
Battery module
19 10 Run-start electronic power assist steering
20 10 2017-2018: Adaptive cruise control
2013-2016: Run/start lighting
21 15 except Hybrid:
Run/start transmission control
Transmission oil pump start/stop
Hybrid:
2013-2014: Run/start hybrid powertrain control module
2015-2018:
Run-start transmission switch
HEV inverter
22 10 except Hybrid: Air conditioner clutch solenoid
23 15 Run-start
Blind spot information system
Rear view camera
Heads-up display
Voltage stability module
Gear shift actuator
Adaptive cruise control
24 10 Hybrid: Run-start transmission oil pump
25 10 Run-start anti-lock brake system
26 10 Run-start powertrain control module
27 10 Hybrid: Fuel door solenoid
28
29 5 except Hybrid:
2015-2018: Mass air flow monitor (except Hybrid)
15 Hybrid:
2013-2016: Hybrid content vehicle power 5
30
31
34
35 15 Hybrid: Charger fan
36 15 Hybrid: Battery electric control module fan
37
43
44
45 5 Hybrid: Vacuum pump monitor
46 10 except Hybrid:
2013-2014: Alternator
Hybrid: Charge port light ring
47 10 except Hybrid:
2013-2014: Brake on/off switch
Hybrid: Brake on/off switch
48 20 except Hybrid:
2013-2014: Horn
Hybrid: Horn
49 5 except Hybrid:
2013-2014: Mass air flow monitor
Hybrid:
2015-2018: Air flow monitor
50 20 except Hybrid:
2015-2018: Horn
15 Hybrid:
2017-2018:
Hybrid content vehicle power 5
Battery energy control module fan
51 15 Hybrid:
Hybrid content vehicle power 1
Hybrid powertrain control module
52 15 Hybrid:
Hybrid content vehicle power 2
Battery energy control module
53 10 2013-2016: Power seats
54 10 except Hybrid:
2015-2018: Brake on off switch
Hybrid:
Hybrid content vehicle power 3
Coolant pump
55 10 except Hybrid:
2015-2018: ALT sensor
Hybrid:
Hybrid content vehicle power 4
Air conditioning compressor
Positive temperature coefficient heater (PHEV)
Humidity sensor (PHEV)
Relay
2 Starter relay
4 Blower motor relay
6
9 Powertrain control module relay
15 Run-start relay
32 except Hybrid: Electric fan 1 relay
Hybrid: Cooling fan relay
33 except Hybrid: A/C clutch relay
38 except Hybrid: Electric fan 2 relay
Hybrid: Vacuum pump #1 relay
39 except Hybrid: Electric fan coil 2 and 3 relay
Hybrid: Vacuum pump #2 relay
40 except Hybrid:
2015-2018: Horn relay
2013-2014: Fuel pump relay
Hybrid: Fuel pump relay
41 except Hybrid:
2013-2014: Horn relay
Hybrid: Horn relay
42 except Hybrid:
2015-2018: Fuel pump coil relay
86

Power Distribution Box – Bottom

There are fuses located on the bottom of the fuse box.

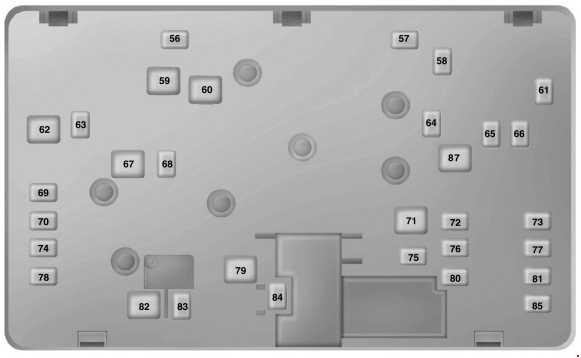

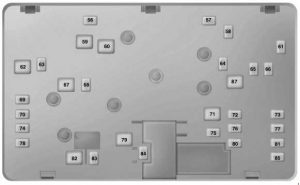

Ford Fusion – fuse box diagram – power distribution box (bottom)
Ford Fusion – fuse box diagram – power distribution box (bottom)
Number Ampere ratting [A] Description
56 30 except Hybrid:
2013-2014: Fuel pump feed
Hybrid: Fuel pump feed
57
58 30 2015-2018: Fuel pump feed
59 30 except Hybrid: Electric fan 3 (1.5L, 1.6L, 2.0L, and 2.5L engines)
40 except Hybrid: Electric fan 3 (2.7L engine)
Hybrid: Vacuum pump relay
60 30 except Hybrid: Electric fan 1 (1.5L, 2.0L, and 2.5L engines)
40 except Hybrid: Electric fan 1 (2.7L engine)
Hybrid: Vacuum pump relay
61
62 50 Body control module 1
63 25 2016-2018: Electric fan 2 (1.5L, 2.0L, and 2.5L engines) (except Hybrid)
30 2017-2018: Electric fan 2 (2.7L engine) (except Hybrid)
2013-2015: Electric fan 2 (1.5L, 1.6L, 2.0L, and 2.5L engines) (except Hybrid)
64 40 Hybrid: Charger B+ output
65 20 Front heated seat
66
67 50 Body control module 2
68 40 Heated rear window
69 30 Anti-lock brake system valves
70 30 Passenger seat
71
72 20 except Hybrid:
2015-2018: Trans oil pump
73 20 except Hybrid:
2015-2018: Rear heated seats
74 30 Driver seat module
75 25 except Hybrid:
2015-2018: Wiper motor 1
20 Hybrid:
2017-2018: Transmission oil pump
76 20 except Hybrid:
2013-2014: Transmission oil pump #2 stop/start
Hybrid:
2015-2016:
Transmission oil pump.
iShifter
2017-2018: e-Shifter (transmission range control module).
30 except Hybrid:
2015-2016: Power lift-gate module
77 30 2015-2018: Climate control seat module
78
79 40 Blower motor
80 25 2015-2018: Wiper motor 2
81 40 Inverter
82 60 except Hybrid:
2013-2014: Anti-lock brake system pump
Hybrid: Anti-lock brake system pump
83 20 except Hybrid:
2015-2018: TRCM shifter
25 except Hybrid:
2013-2014: Wiper motor #1
Hybrid: Wiper motor #1
84 30 except Hybrid: Starter solenoid
85
87 60 except Hybrid:
2015-2018: Anti-lock brake system pump

Passenger Compartment Fuse Panel

The fuse panel is located under the instrument panel to the left of the steering column.

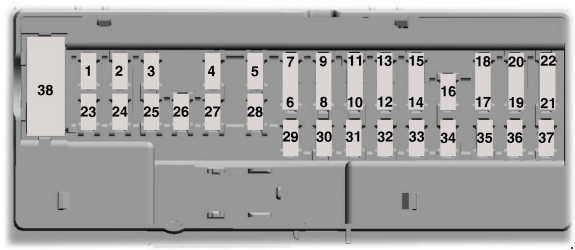

Ford Fusion – fuse box diagram – passenger compartment fuse box
Ford Fusion – fuse box diagram – passenger compartment fuse box
Number Ampere ratting [A] Description
1 10 Lighting (ambient, glove box, vanity, dome, trunk)
2 7,5 Lumbar
3 20 Driver door unlock
4 5 Not used (spare)
5 20 Subwoofer amplifier
5 20 Not used (spare)
6 10 Not used (spare)
7 10 Not used (spare)
8 10 Not used (spare)
9 10 Not used (spare)
10 5 Keypad
Cellphone passport module
11 5 Not used (spare)
12 7,5 Climate control
Gear shift
13 7,5 Steering wheel column lock
Cluster
Datalink logic
14 10 2017-2018: Extended power module
2015-2016: Battery electronic control module
2013-2014: Traction battery control module (Hybrid)
15 10 Datalink gateway module
16 15 Child lock
Decklid-liftglass release
17 5 Not used (spare)
18 5 Push button stop start switch
19 7,5 2017-2018: Extended power module
2015-2016:
Passenger airbag disabled indicator
Transmission range
5 2013-2014:
Passenger airbag disabled indicator
Transmission range
20 7,5 2015-2018: Adaptive headlamp
21 5 Humidity and in-car temperature sensor
22 5 2013-2016: Occupant classification sensor
2017-2018: Pedestrian sounder (only Hybrid
23 10 Delayed accessory (power inverter logic, moonroof logic, driver master switch)
24 20 2015-2018: Central lock unlock
30 2013-2014: Central lock unlock
25 30 Driver door (window, mirror)
26 30 Front passenger door (window, mirror)
27 30 Moonroof
28 20 Amplifier
29 30 Rear driver side door (window)
30 30 Rear passenger side door (window)
31 15 Not used (spare)
32 10 Global positioning system
Display
Voice control
Radio frequency receiver
Adaptive cruise control
33 20 Radio
Active noise control
34 30 Run-start bus (fuse 19,20,21,22,35,36, 37, circuit breaker)
35 5 2013-2016: Restraints control module
36 15 Auto-dimming rear view mirror
Continuous control damping suspension
All-wheel drive relay
Rear heated seats
37 20 Heated steering wheel
All wheel drive
38 30 Not used (spare)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
