Ford Figo (from 2010) – fuse box diagram (India version)

Ford Figo (from 2010) – fuse box diagram (India version)

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016

Fuse labels

Labels Description
See Owner's handbook See Owner’s handbook
Airbag Airbag
ABS ABS
Dipped beam Headlamp dipped beam
Main beam or headlamps Headlamp main beam
Dipped beam or parking lamp switch Lighting control
Rear window wiper Windscreen wipers
Heated rear window Heated rear window
Air conditioning, heater blower motor Blower motor
Air conditioning Air conditioning
Horn Horn
Engine management, electronic module Engine management or electronic module
Fuel pump Fuel pump
Battery sensing Battery and charging system
Instrument cluster Instrument cluster, battery saver, number plate lamp
Side and tail lamps Side and tail lamps
Central locking and alarm horn Central locking
Hazard warning flashers and direction indicators Hazard warning flashers and direction indicators
Ignition Ignition
Brake lamps Brake lamps
Reversing lamp Reversing lamp

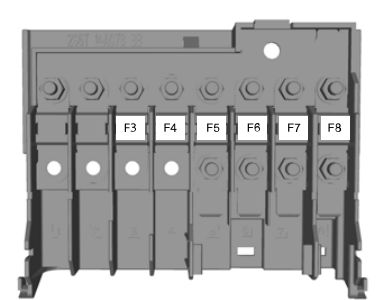

Engine junction box

Ford Figo – fuse box diagram – engine junction
Ford Figo – fuse box diagram – engine junction
Fuse Ampere rating [A] Circuits protected
F1 Not used
F2 Not used
F3 60 Diesel glow plug relay
F4 40 Cooling fan and AC (Duratec – Petrol)
50 Cooling fan and AC (Duratorq – Diesel)
F5 60 PJB busbar BB1
F6 60 Ignition Relay
F7 60 PJB busbar BB4
F8 60 PJB busbar BB5

Passenger junction box

Ford Figo – fuse box diagram – passenger junction
Ford Figo – fuse box diagram – passenger junction
Fuse Ampere rating [A] Circuits protected
F1 Not used
F2 Not used
F3 Not used
F4 10 Air conditioning clutch
F5 20 ABS valve
F6 7,5 Power mirrors
F7 10 Electric decklid release
F8 Not used
F9 10 Head lamp low (dipped) beam – LHS
F10 10 Head lamp low (dipped) beam – RHS
F11 Not used
F12 15 Powertrain control module fuse
F13 20 Heated oxygen sensor – Petrol
Powertrain control module – Diesel
F14 Not used
F15 20 Fuel pump
F16 3 Powertrain control module power
F17 15 Lighting switch
F18 15 Onboard diagnotics/radio
F19 Not used
F20 7,5 Instrument cluster
F21 Not used
F22 7,5 Park/tail lamp – LHS
F23 7,5 Park/tail lamp – RHS
F24 20 Power door locks (BFC)
F25 15 Turn/hazard lamp
F26 20 Heated back window
F27 15 Horn
F28 3 Alternator
F29 20 Front power outlet connector
F30 15 Ignition switch
F31 7,5 Cargo/dome Lamp
F32 10 Driver door unlock power (BFC)
F33 7,5 License plate lamp
F34 3 Rear window heater switch
F35 Not used
F36 10 Turn/hazard flasher
F37 3 ABS module
F38 7,5 HVAC control panel/Thermistor assy/BFC
F39 7,5 Air bag module
F40 10 Light/dimmer switch
F41 7,5 Instrument cluster
F42 Not used
F43 Not used
F44 3 Radio/Instrument cluster
F45 15 Stop lamps
F46 20 Front wiper
F47 10 Rear wiper park position
F48 7,5 Back up lamp
F49 Not used
F50 20 Fog lamps
F51 Not used
F52 10 High beam – LHS
F53 10 High beam – RHS
F54 Not used
F55 Not used
F56 Not used
F57 30 Front power windows
F58 30 Heated blower motor
F59 30 Starter motor
F60 30 ABS Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
