Ford Fiesta (2002 – 2008) – fuse box diagram (EU version)
Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008

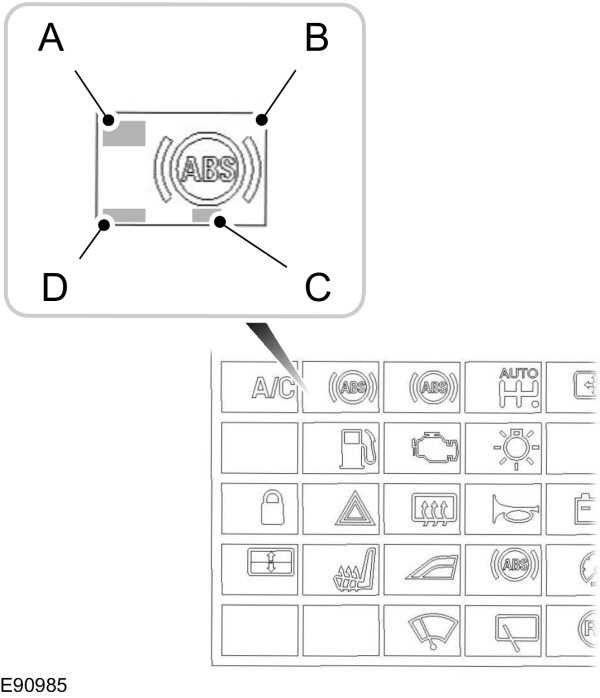

Fuse label
Fuse labels
A – Fuse number
B – Circuits protected
C – Location (L = left and R = right)
D – Fuse rating (Amperes)
| Symbol | Description |
 |
See Owner’s handbook |
 |
Airbag |
 |
ABS |
 |
Headlamp dipped beam |
 |
Headlamp main beam |
 |
Fog lamps |
 |
Lighting control |
|
Windscreen wipers |
 |
Rear window wiper |
 |
Heated windscreen |
 |
Heated rear window |
 |
Heated exterior mirrors |
 |
Electric exterior mirrors |
 |
Electric windows |
 |
Not used |
 |
Heated seats |
 |
Blower motor |
 |
Air conditioning |
 |
Cigar lighter |
 |
Horn |
 |
Daytime running lamps |
 |
Automatic transmission or Durashift EST |
 |
Engine management (diesel) or catalytic converter |
 |
Starter motor |
 |
Audio system and diagnostic connector |
 |
Engine management or electronic module |
 |
Fuel pump |
 |
Auxiliary heater, glow plugs and fuel injection pump relay |
 |
Battery and charging system |
 |
Instrument cluster, battery saver, number plate lamp, generic electronic module (GEM) |
 |
Side and tail lamps |
 |
Central locking and alarm horn |
 |
Hazard warning flashers and direction indicators |
 |
Ignition |
 |
Trailer towing module |
 |
Durashift EST |
 |
Brake lamps |
 |
Reversing lamp |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
