Ford Expedition (U324; 2009 – 2014) – fuse box diagram

Ford Expedition (U324; 2009 – 2014) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013, 2014

Passenger compartment fuse panel

The fuse panel is located under the right-hand side of the instrument panel.

Ford Expedition - fuse box diagram - passenger compartmen
Ford Expedition – fuse box diagram – passenger compartmen
A Description
1 30 Driver window
2 15 Driver side memory module
3 15 Audio rear seat controls,
Satellite radio,
SYNC®
4 30 Not used (spare)
5 10 Keypad illumination,
3rd row seat enable,
Brake shift interlock (BSI),
Smart fuse panel logic power
6 20 Turn signals
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Interior lights
10 15 Switch backlighting,
Puddle lamps
11 10 Not used (spare)
12 7.5 Power mirror switch,
Driver seat memory switch
13 5 Not used (spare)
14 10 Power liftgate module – keep-alive power
15 10 Climate control,
Global positioning satellite module
16 15 Not used (spare)
17 20 Door locks,
Liftgate release,
Liftglass release
18 20 Second row heated seats
19 25 Rear wiper
20 15 Adjustable pedals,
Datalink
21 15 Fog lamps
22 15 Park lamps
23 15 High beam headlamps
24 20 Horn
25 10 Demand lamps,
Glovebox,
Visor
26 10 Instrument panel cluster
27 20 Ignition switch
28 5 Radio
29 5 Instrument panel cluster
30 5 Not used (Spare)
31 10 Not used (spare)
32 10 Airbag module
33 10 Not used (spare)
34 5 Not used (Spare)
35 10 Rear park assist,
4×4,
rear video camera,
2nd row heated seats
36 5 Passive anti-theft system
37 10 Climate control
38 20 Subwoofer
39 20 Radio
40 20 Navigation amplifier
41 15 Power windows,
Power vents,
Power moon roof,
Auto dimming rear view mirror,
110V AC power point
42 10 Not used (spare)
43 10 Rear wiper logic,
Rain sensor
44 10 Trailer tow battery charge relay coil
45 5 Front wiper logic
46 7.5 Climate control,
Auxiliary relay control
47 30 Power windows,
Moon roof
48 Delayed accessory relay

Power distribution box

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

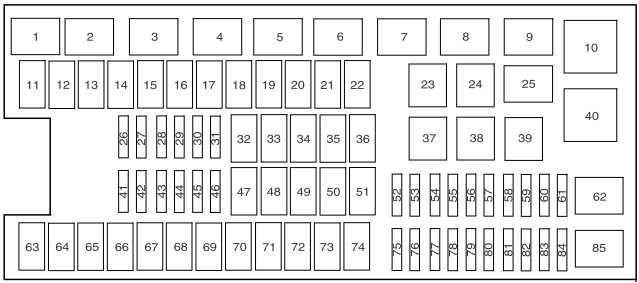

Ford Expedition - fuse box diagram - power distribution box
Ford Expedition – fuse box diagram – power distribution box
A Description
1 Powertrain control module relay
2 Starter relay
3 Blower motor relay
4 Trailer tow battery charge relay
5 Fuel pump relay
6 Electronic fan 1 relay
7 Rear window defroster/heated mirror relay
8 Electronic fan 3 relay
9 Run/start relay
10 Rear air suspension relay
11 40 Power running board
12 40 Run/start, relay
13 30 Starter relay
14 40 Electronic fan
15 Not used
16 40 Electronic fan
17 Not used
18 30 Trailer brake
19 60 Rear air suspension relay feed
20 20 4×4 module
21 30 Trailer tow battery charge relay
22 30 Passenger power seat
23 A/С clutch relay
24 Trailer tow park lamp relay
25 Not used
26 Not used
27 20 4×4
28 25 Trailer tow park lamp relay
29 20 Backup lamps,
Integrated wheel end solenoid
30 10 A/С clutch relay
31 Not used
32 40 Blower motor relay
33 40 110 volt AC power point
34 30 Auxiliary blower motor
35 30 Powertrain control module relay
36 30 Power liftgate
37 Trailer tow left hand stop/turn relay
38 Trailer tow right hand stop/turn relay
39 Backup lamps relay
40 Electronic fan 2 relay
41 10 Powertrain control module keep-alive power
42 Not used
43 5 Brake on/off switch
44 20 Fuel pump relay
45 25 Trailer tow stop/turn lamps relay
46 Not used
47 Not used
48 30 Rear air suspension module
49 Not used
50 30 Front wiper motor relay
51 40 Rear window defroster/heated mirror relay
52 10 Anti-lock brake system run/start feed
53 10 Rear air suspension module
54 Not used
55 5 Fuel pump relay coil run/start feed
56 30 Passenger compartment fuse panel R/S feed
57 10 Blower motor relay coil
58 15 Trailer tow backup lamps
59 15 Heated mirrors
60 Not used
61 Fuel pump diode
62 Not used
63 25 Electronic fan
64 30 Moon roof
65 20 Auxiliary power point (instrument panel)
66 20 Auxiliary power point (rear of center console)
67 40 Front row climate controlled seats
68 60 Anti-lock brake system valves
69 60 Anti-lock brake system pump
70 30 Third row power fold seat
71 20 Auxiliary power point/cigar lighter
72 20 Auxiliary power point (right rear quarter panel)
73 Not used
74 30 Driver power seat
75 20 Vehicle power 1 – powertrain control module
76 20 Vehicle power 2 – powertrain control module
77 15 Vehicle power 4 – ignition coils
78 Not used
79 20 Vehicle power 3 – powertrain control module
80 Not used
81 Not used
82 Not used
83 Not used
84 Not used
85 Wiper motor relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
