Ford E-Series E-150 E150 E 150 (1998 – 2001) – fuse box diagram

Ford E-Series E-150 E150 E 150 (1998 – 2001) – fuse box diagram

Year of production: 1998, 1999, 2000, 2001

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by the brake pedal.

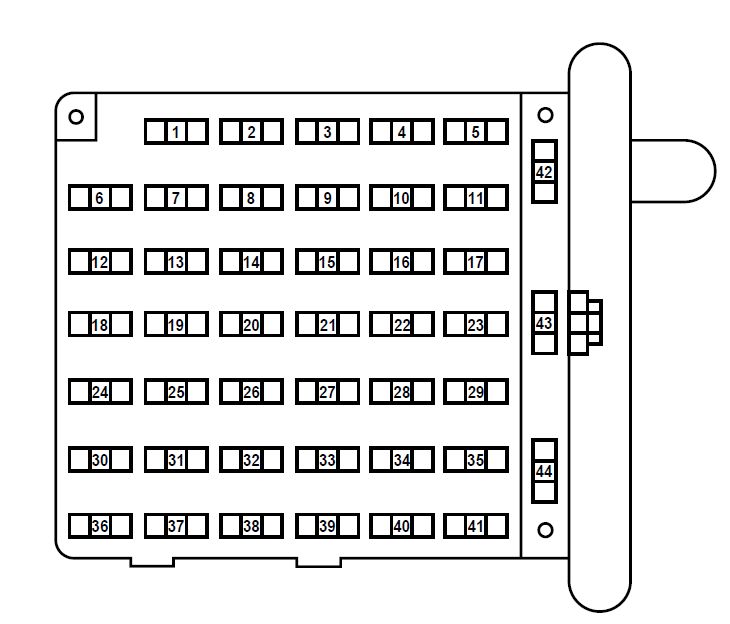

Ford E-series E-150 – fuse box diagram - passenger compartment
Ford E-series E-150 – fuse box diagram – passenger compartment
Fuse/relay location Ampere rating [A] Description
1 20 RABS/4WABS Module
2 15 Brake Warning Diode/Resistor, Instrument Cluster, Warning Chime, 4WABS Relay, Warning Indicators
3 15 Main Light Switch, RKE Module, Radio
4 15 Power Locks w/RKE, Illuminated Entry, Warning Chime, Modified Vehicle, Power Mirrors, Main Light Switch, Courtesy Lamps
5 20 RKE Module, Power Lock Switches, Memory Lock, Power Locks with RKE
6 10 Shift Interlock, Speed Control, DRL Module
7 10 Multi-Function Switch, Turn Signals
8 30 Radio Capacitor(s), Ignition Coil, PCM Diode, PCM Power Relay, Fuel Heater, Glow Plug Relay (Diesel)
9 30 Wiper Control Module, Windshield Wiper Motor
10 20 Main Light Switch, (External Lamps) Multi-Function Switch (Flash-to-pass)
11 15 Brake Pressure Switch, Multi-Function Switch (Hazards), RABS, Brake Pedal Position Switch
12 15 Transmission Range (TR) Sensor, Auxiliary Battery Relay
13 15 Blend Door Actuator, Function Selector Switch
14 5 Instrument Cluster (Air Bag and Charge Indicator)
15 5 Trailer Battery Charge Relay
16 30 Power Seats
17 Not Used
18 Not Used
19 10 Air Bag Diagnostic Monitor
20 5 Overdrive Cancel Switch
21 30 Power Windows*
22 15 Memory Power Radio
23 20 Cigar Lighter, Data Link Connector (DLC)
24 5 Illuminated Entry Module
25 10 Left Headlamp (Low Beam)
26 Not Used
27 5 Radio
28 25 Power Plug
29 Not Used
30 15 Headlamps (High Beam Indicator), DRL
31 10 Right Headlamp (Low Beam), DRL
32 Not Used
33 Not Used
34 10 Transmission Range (TR) Sensor
35 Not Used
36 5 (Cluster, A/C, Illumination, Radio), Steering Column Assembly
37 Not Used
38 10 Air Bag Diagnostic Monitor
39 Not Used
40 30 Modified Vehicle
41 30 Modified Vehicle
42 Not Used
43 20 CB Power Windows*
44 Not Used
*Either fuse 21 or circuit breaker 43 will be present for power
windows

Power distribution box

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

Ford E-series E-150 – fuse box diagram – power distribution box
Ford E-series E-150 – fuse box diagram – power distribution box
Fuse/relay location Ampere rating [A] Description
1 Not Used
2 Not Used
3 Not Used
4 10 PCM Keep Alive Memory, Instrument Cluster
5 10 Right Trailer Turn Signal
6 10 Left Trailer Turn Signal
7 Not Used
8 60 I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28
9 30 PCM Power Relay, Engine Compartment Fuse 4
10 60 Auxiliary Battery Relay, Engine Compartment Fuses 14, 22
11 30 IDM Relay (1998 1/2 Vehicles)
12 60 Engine Compartment Fuses 26, 27
13 50 Blower Motor Relay (Blower Motor)
14 30 Trailer Running Lamps Relay, Trailer Backup Lamps Relay
15 40 Main Light Switch
16 50 RKE Module, Auxiliary Blower Motor Relay
17 30 Fuel Pump Relay, IDM (Diesel)
18 60 I/P Fuses 40, 41
19 60 4WABS Module
20 20 Electric Brake Controller
21 50 Modified Vehicle Power
22 40 Trailer Battery Charge Relay (Modified Vehicles Only)
23 60 Ignition Switch
24 Not Used
25 20 NGV Module
26 10 Generator/Voltage Regulator (Diesel Only)
27 15 DRL Module, Horn Relay
28 PCM Diode
29 Not Used
A Not Used
B Not Used
C Trailer Backup Lamps Relay
D Trailer Running Lamps Relay
E Trailer Battery Charge Relay
F IDM Relay
G PCM Relay
H Blower Motor Relay
J Horn Relay
K Fuel Pump Relay, IDM Relay (Diesel)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
