Year of production: 2013, 2014, 2015, 2016

Fuse box in engine compartment

Fuse Circuit protected Ampere rating [A]
1 EPS 70
Booster Motor 40
ABS/VSA Motor 30
ABS/VSA FSR 30
WIPER 30
MAIN Fuse 100
2 IG MAin 50
Fuse Box Main 60
Fuse Box Main 2 60
Headlight Main 30
ST/MG SW*1 30
 Rear Defogger 30
Blower 40
Sub Fan Motor 20
3
4 IG Coil 2 15
5 Starter DIAG, ST MG 7,5
6 IG Coil 1 15
7
8
9
10
11 Oil Level 7,5
12 Fog lights 20
13 IMA1 7,5
14 Hazard 10
15 FI Sub 15
16 IG Coil 20
17 Stop 15
18 Horn 10
19 IMA2 10
20 Right Headlight Low Beam*1 10
Right Headlight Low Beam (HID)*2 15
21 IGP 15
22 DBW 15
23 Left Headlight Low Beam*1 10
Left Headlight Low Beam(HID)*2 15
24 Booster SOL 15
25 MG Clutch 7,5
26 WASHER 7,5
27 SMALL 20
28 Interior Lights 7,5
29 Backup 10

*1:Models with halogen bulb low beam headlights

*2:Models with discharge headlights

Relay

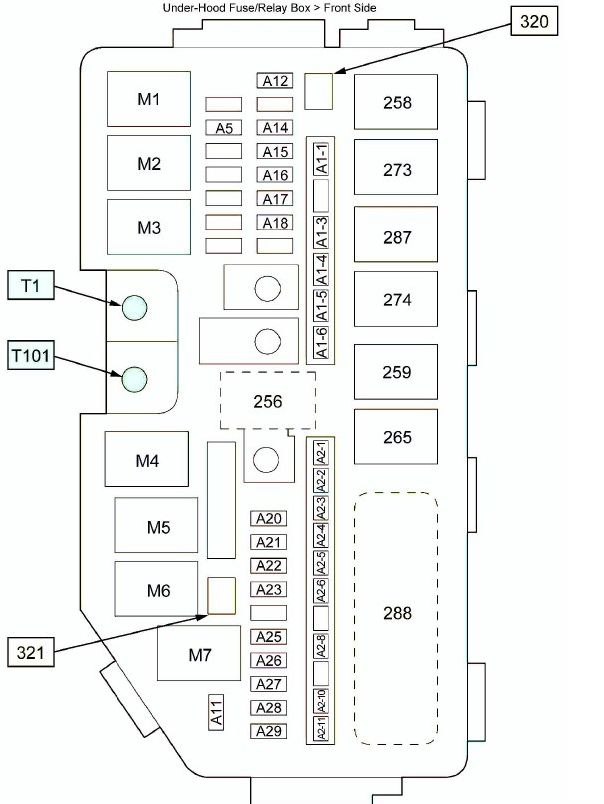

Acura ILX – wiring diagram – fuse box diagram – engine compartment (front side)
Position Description
M1 Blower Motor Relay
M2 Starter Cut Relay 1
M3 A/C Condenser Fan Relay
M4 Ignition Coil Relay
M5 Starter Cut Relay 2
M6 PGM-FI Subrelay
M7 Rear Window Defogger Relay
256 ELD
258 Fan Control Relay
259 Fog Light Relay
265 Horn Relay
273 Radiator Fan Relay
274 NC Compressor Clutch Relay
287 Windshield Wiper Motor Relay
288 Relay Circuit Board
320 Diode D
321 Diode C

Connector

Position Connector name Connector type
T1 T1 Component Connector
T101 T101 Component Connector

Interior fuse box

Fuse Circuit protected Ampere rating [A]
1
2 ACG 15
3 SRS 10
4 Fuel pump 15
5 Meter 7,5
6 Power Window 7,5
7 VB SOL* 7,5
8 Door Lock Motor 2 (Unlock) 15
9 Door Lock Motor 1 (Unlock) 15
10
11 Moonroof 20
12 Driver’s Power Seat Sliding* 20
13 Driver’s Power Seat Reclining* 20
14 Seat Heaters* 15
15 Driver’s Door Lock Motor (Unlock)
16
17
18
19 ACC 7,5
20 ACC Key Lock 7,5
21 Daytime Running Lights 7,5
22 HAC 7,5
23 HYBRID A/C 7,5
24 ABS/VSA 7,5
25 ACC 7,5
26
27 Accessory Power Socket 20
28
29 ODS 7,5
30 Driver’s Door Lock Motor (Lock) 10
31 SMART 10
32 Door Lock Motor 2 (Lock) 15
33 Door Lock Motor 1 (Lock) 15
34 Small Lights 7,5
35 Illumination 7,5
36
37 Premium Audio* 20
38 Left Headlight High Beam 10
39 Right Headlight High Beam 10
40 TPMS* 7,5
41 Door Lock 20
42 Driver’s Power Window 20
43 Rear Passenger’s Side Power Window 20
44 Front Passenger’s Side Power Window 20
45 Rear Driver’s Side Power Window 20
46

* Not available on all models



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
