Fiat Punto Classic (2005 – 2011) – fuse box diagram
Year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011

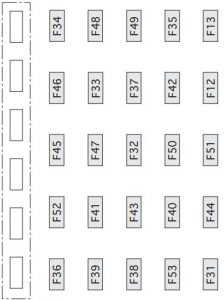

Fuse box on the dashboard
| Numbers | Ampers | Lights |
| F12 | 10 | Right dipped-beam headlight |
| F13 | 10 | Left dipped-beam headlight, headlight aiming device, Headlight aiming device |
| F31 | 7,5 | Reversing light, Manual climate control, Engine compartment ECU remote switch coils, Parking assistance control unit |
| F32 | 15 | Light system |
| F33 | — | — |
| F34 | — | — |
| F35 | 10 | Water in diesel fuel filter sensor (diesel versions), Electric power steering |
| F36 | 15 | Subwoofer system |
| F37 | 10 | Instrument panel and warning lights (ignition switch powered), Brake lights, Additional brake light (third stop light) |
| F38 | 20 | Door locking system |
| F39 | 10 | Boot, Ceiling light, + 30 utilities (sound system, cellular phone presetting, EOBD diagnostic socket) |
| F40 | 25 | Heated rear window |
| F41 | 7,5 | Heated rearview mirrors |
| F42 | 7,5 | ABS control unit (ignition switch powered), Brake pedal switch |
| F43 | 30 | Windscreen/rear window washer pump, Windscreen wiper |
| F44 | 20 | Cigar lighter |
| F45 | 15 | Front heated seats |
| F46 | 15 | Sunroof |
| F47 | 20 | Left front power window |
| F48 | 20 | Right front power window |
| F49 | 7,5 | + 15 utilities (sound system, Cruise Control, ASR system cut-out control, cellular phone presetting, dashboard control lights, heated seat switch, ESP system sensors, rain sensor, fastened seat belt warning light) |
| F50 | 7,5 | Air bag system |
| F51 | 7,5 | Dashboard instrument lights, Cigar lighter, Number plate light |
| F52 | 15 | Heated rear window, Rear window wiper |
| F53 | 10 | Hazard lights, Direction indicators, Instrument panel and warning lights (battery powered) |
Fuse box in engine compartment
| Numbers | Ampers | Lights |
| F01 | 70 | Dashboard power: standard functions |
| F02 | 40 | Dashboard power: optional functions |
| F03 | 20 | Ignition switch |
| F04 | 60 | ABS/ESP system |
| F05 | 60 | Electric power steering |
| F06 | 30 | One-speed radiator fan (1.28V version with heater) Radiator fan first speed (1.28V versions with manual climate control system) |
| F07 | 50 | Radiator fan second speed (1.28V version with manual climate control system) |
| F08 | 30 | Passenger compartment fan |
| F09 | 20 | Headlight washer |
| F10 | 15 | Horn |
| F11 | 10 | Engine control system secondary loads, Glow plug control unit, Petrol fume recirculation solenoid valve, Tachometer generator, Lambda sensor |
| F14 | 10 | Right main-beam headlight |
| F15 | 10 | Left main-beam headlight |
| F16 | 7,5 | Engine control unit (ignition switch powered), Engine cooling system relay |
| F17 | 10 | Engine control unit (power) |
| F18 | 7,5 | Engine control unit (+battery), Engine cooling system relay |
| F19 | 7,5 | Manual climate control compressor |
| F20 | 20 | Heated diesel fuel filter |
| F21 | 15 | Fuel pump |
| F22 | 20 | Ignition coils, Injectors, Fuel pump (1.28V version) |
| F24 | 7,5 | 15/54 electric power steering control unit |
| F30 | 15 | Fog lights |
| F54 | 60 | Glow plug heating system |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
