Fiat Doblo (Classic) (from 2004) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

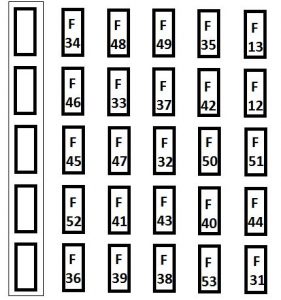

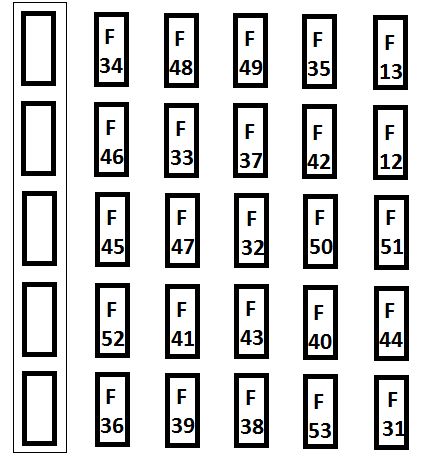

Fuse box under dashboard
| Device protected | Fuse | Ampere rating [A] |
| Right-hand dipped beam | F12 | 10 |
| Left-hand dipped beam | F13 | 10 |
| Boot | F42 | 10 |
| Hazard lights | F53 | 10 |
| Front fog lights | F30 | 15 |
| Dashboard instrument lights | F51 | 7,5 |
| Light system | F32 | 15 |
| Ceiling light | F42 | 10 |
| Instrument panel and warning lights (ignition switch powered) | F37 | 10 |
| Instrument panel and warning lights (battery powered) | F53 | 10 |
| Reversing light | F31 | 7,5 |
| Brake lights | F37 | 10 |
| Number plate light | F51 | 7,5 |
| Additional brake light (third stop light) | F37 | 10 |
| Cigar lighter | F44 | 20 |
| Air bag | F50 | 7,5 |
| Right front power window | F48 | 20 |
| Left front power window | F47 | 20 |
| Door locking system | F38 | 20 |
| ABS control unit (ignition switch powered) | F42 | 7,5 |
| Manual climate control enable control | F31 | 7,5 |
| Headlight beam adjuster | F13 | 10 |
| Heated rear window | F40 | 30 |
| Windscreen-rear window washer pump | F43 | 30 |
| Supplementary power socket | F44 | 20 |
| Heated seats | F45 | 15 |
| + 30 services (sound system, cellular telephone, diagnostic socket) | F39 | 10 |
| +15 services (sound system, cellular telephone, dashboard control lighting, electrical mirrors, trailer, heated seat control lighting) | F49 | 7,5 |
| Heated rearview mirrors | F41 | 7,5 |
| Pump system relay | F31 | 7,5 |
| Fan system relay passenger compartment heater | F31 | 7,5 |
| Safet belt buzzer muting relay | F49 | 7,5 |
| Windscreen wiper | F43 | 30 |
| Rear window wiper | F52 | 15 |
| Subwoofer system | F39 | 15 |
| Spare | F35 | — |
| Spare | F33 | — |
| Spare | F34 | — |
| Spare | F46 | — |

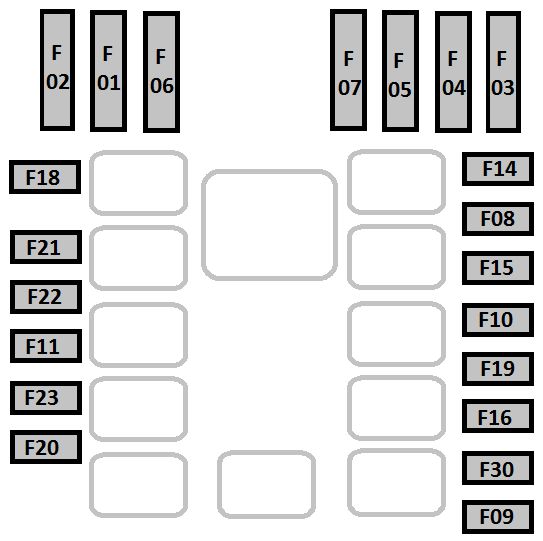

Fuse box in engine compartment
| Device protected | Fuse | Ampere rating [A] |
| Right-hand main beam | F14 | 10 |
| Left-hand main beam | F15 | 10 |
| Front fog lights | F30 | 15 |
| Dashboard control unit power: optional functions | F02 – MAXI FUSE | 40 |
| Dashboard control unit power: standard functions | F01 – MAXI FUSE | 70 |
| ABS power (pump) | F04 – MAXI FUSE | 40 |
| Ignition coils | F22 | 20 |
| Engine control system secondary loads | F11 | 15 |
| Engine control unit (+battery) | F18 | 7,5 |
| Engine control unit (power) | F17 | 10 |
| Engine control unit (ignition switch powered) | F16 | 7,5 |
| Glow plug control unit | F11 | 15 |
| Horn | F10 | 15 |
| Ignition switch | F03 – MAXI FUSE | 20 |
| Manual climate control compressor | F19 | 7,5 |
| Petrol fume recirculation solenoid valve | F11 | 15 |
| Tachometer generator | F11 | 15 |
| Injectors | F22 | 20 |
| One-speed radiator fan | F06 – MAXI FUSE | 30 |
| Fuel pump | F22 | 20 |
| Fuel pump | F21 | 15 |
| ABS power (valve) | F05 – MAXI FUSE | 30 |
| Radiator fan first speed (versions with manual climate control system) | F06 – MAXI FUSE | 30 |
| Radiator fan first speed (1.3 -1.9 Multijet versions) | F06 – MAXI FUSE | 40 |
| Radiator fan second speed (1.4 – 1.6 versions with manual climate control system) | F07 – MAXI FUSE | 60 |
| Radiator fan second speed (1.3 -1.9 Multijet versions) | F07 – MAXI FUSE | 40 |
| Lambda sensors (oxygen sensors) | F11 | 15 |
| Engine cooling system relay | F18 | 7,5 |
| Engine cooling system relay | F16 | 7,5 |
| Passenger compartment fan | F08 | 30 |
| Spare | F09 | — |
| Spare | F23 | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
