Dodge Stratus (2005 – 2006) – fuse box diagram

Year of production: 2005, 2006

Underhood Fuses (Power Distribution Center)

A Power Distribution Center is located in the engine compartment; near the air cleaner.

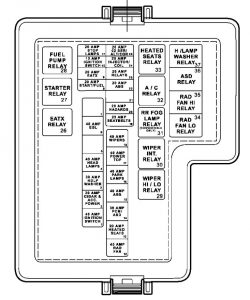

Dodge Stratus - fuse box - power distribution
Dodge Stratus – fuse box –
power distribution

Interior Fuses

The fuse access panel is behind the end cover at the left side of the instrument panel.

Cavity Fuse Circuits
1 30 Blower Motor
2 10 Right High Beam Headlight, High Beam Indicator
3 10 Left High Beam Headlight
4 15 Power Door Lock Switch Illumination, Transmission Range Switch, Daytime Running Light Module (Canada), Power Windows, Anti-lock Brake System Module
5 10 Power Door Lock and Door Lock Arm/Disarm Switches, Vanity, Reading, Map, Rear Seating, Ignition, and Trunk Lights, Illuminated Entry, Radio, Power Antenna, Data Link Connector, Body Control Module, Power Amplifier
6 10 Heated Rear Window Indicator
7 20 Instrument cluster illumination, Park and tail Lights
8 20 Power Receptacle, Horns, Ignition, Fuel, Star
9 15 Power Door Lock Motors (Body Control Module)
10 20 Daytime Running Light Module (Canada)
11 10 Instrument Cluster, Transmission Control, Park/Neutral Switch, Body Control Module
12 10 Left Low beam Headlight
13 20 Right Low Beam Headlight, Fog Light Switch
14 10 Radio
15 10 Turn Signal and Hazard Flashers, Wiper Switch, Seat Belt Control Module, Wiper Relays, Rear Window Defroster Relay
16 10 Airbag Control Module
17 10 Airbag Control Module
18 20 Power Seat Switch, Remote Trunk Release
19 30 Power Windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
