Dodge Mirada (1980 – 1983) – fuse box diagram
Year of production: 1980, 1981, 1982, 1983

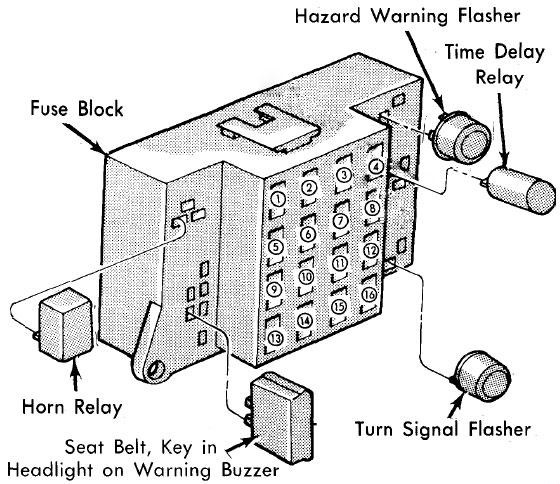

Fuse box
| № |
A |
Protected Component |
| 1 | 20 | Hazard warning flashers |
| 2 | – | – |
| 3 | 30 | Circuit Breaker: Power windows and moon roof |
| 4 | 30 | Air conditioning and heater blower motor, heated rear window relay, deck lid solenoid, illuminated entry sense and cornering lights |
| 5 | 20 | Cluster, tail, side marker, license, opera, dome, turn signal, radio display and cassette lights |
| 6 | 20 | Stop, mirror, map, reading and courtesy lights, key in buzzer, ignition relay, illuminated entry and chimes, ignition switch, trunk, “B” pillar, door lock and front header lights, clock memory and radio memory |
| 7 | 20 | Horn, horn relay, cigar lighter, power antenna and glove box light |
| 8 | 30 | Circuit Breaker: Power seats and door lock solenoids |
| 9 | – | – |
| 10 | – | – |
| 11 | 5 | Brake warning, oil pressure, door ajar, and seat belt lights, voltage limiter, temperature and fuel gauges, low fuel warning indicator, radio capacitor, seat belt buzzer and speed control |
| 12 | – | – |
| 13 | 4 | Air conditioning, heater, cluster, hood, parking brake, defogger, cigar lighter, ash tray, clock, radio and gear selector lights |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
