Mazda 5 (from 2016) – fuse box diagram

Mazda 5 (from 2016) – fuse box diagram

Year of production: 2016, 2017

Fuse block (Engine compartment)

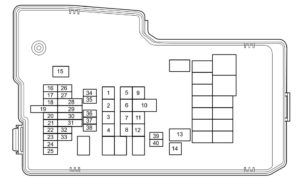

Mazda 5 - fuse box - engine compartment
Mazda 5 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 IG KEY1 50 For protection of various circuits
2 AD FAN 30 Cooling fan
3 GLOW2 HEATER2 30 Air conditioner
4 EGI MAIN 40 Engine control system
5 INJ FAN2
6 ABS P 40 ABS, DSC
7 P.SLIDE L
8 TCM 20 Transaxle control system
9 HEATER1 40 Air conditioner
10 DCDC2
GLOW1 HEATER3 30 Air conditioner
11 BTN 60 For protection of various circuits
12 IG KEY2 40 For protection of various circuits
13 FAN1 30 Cooling fan
AT PUMP
14 P.SLIDE R
15 EHPAS 80 Power assist steering
16 FOG 15 Fog lights*
17 D.LOCK 20 Power door lock
18 P.WIND 20 Power window
19 AT PUMP
TCM
20 HEAD HI 20 Headlight high beam
21 ENG+B 10 Engine control system
22 STOP 10 Brake lights
23 F.WARMER FUEL PUMP 20 Fuel pump
24 HAZARD 10 Hazard warning flasher, Turn signal lights
25 ROOM 15 Overhead lights
26 TAIL 15 Taillights, Parking lights, License plate lights
27 A/C MAG 10 Air conditioner
28 ABS V 20 ABS, Dynamic stability control system
HORN
29 SUN ROOF 20 Moonroof*
AUDIO1
30 H/CLEAN
DCDC3
31 HORN 15 Horn
ABS V
32 TAIL
33 ILLUMI 7,5 Instrument panel illumination
34 ENG INJ 25 Engine control system
35 ENG BAR 15 Engine control system
36
37 M.DEF 7,5 Mirror defroster
38 DEFOG 25 Rear window defroster
39 HEAD LO L 15 Headlight low beam (LH)
40 HEAD LO R 15 Headlight low beam (RH)
* Some models

Fuse block (Passenger’s side)

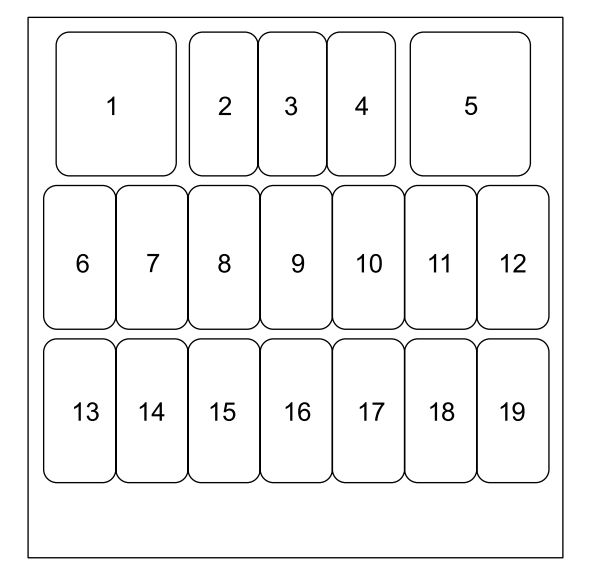

Mazda 5 - fuse box - passenger's side
Mazda 5 – fuse box – passenger’s side
Position Description Fuse rating [A] Protected component
1 P/W 30 Power window
2 M.DEF
3 STARTER 10 Engine control system
4 ENG3 20 Engine control system
5 P/W
6 P.OUTLET 15 Accessory sockets (Cargo compartment)
7 SHIFT/L 5 Transaxle control system
8 CIGAR 15 Accessory sockets (Dashboard)
9 MIRROR 7,5 Power control mirror
10 A/C 10 Air conditioner
11 F.WIP 25 Windshield wipers and washer
12 R.WIP 15 Rear window wiper
13 ENG
14 METER 10 Instrument cluster
15 SAS 10 Air bag
16 S.WARM 15 Seat warmer*
17 ABS/DSC
18 EHPAS 5 Power assist steering
19 ENG2 15 Engine control system
*Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
