Dodge M – Series (1965 – 1974) – fuse box diagram

Dodge M – Series (1965 – 1974) – fuse box diagram

Year of production: 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

Fuse box

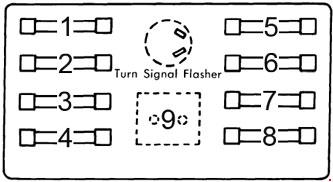

Dodge M-Series - fuse box diagram
Dodge M-Series – fuse box diagram

A
Protected Component
1 6 Alternator Regulator
2 30 Horn
3 15 Turn Signal
4 15 Tail Light, Stop Light, Dome Light, Park Light
5 20 Heater
6 6 Radio
7 2 Instrument Light
8 15 4-Way Flasher, Cigar Lighter
9 8 Circuit Breaker: Axle
  • M300, M375 (’70-’71) — Headlight switch contains integral circuit breaker.
  • M300, M375 (’70-’71) — Wiring loom contains fusible link between ammeter and solenoid.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
