Daewoo Korando – fuse box diagram
Year of production:

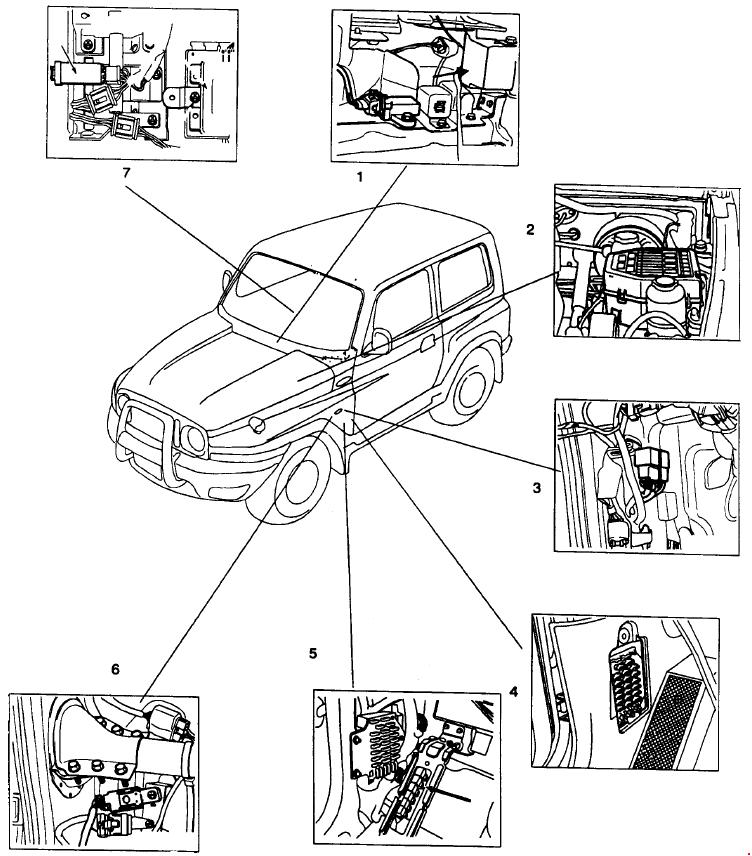

Location
- Automatic Door Lock Relay
- Engine Room Fuse Box
- ABD Motor and Valve Relay
- Interior Fuse Box
- Interior Relay
- Window Auto Down Relay
- Over Voltage Protection Relay: OVPR

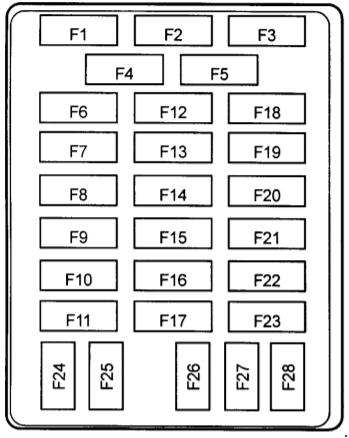

Compartment Fuse Box
| No. |
Circuit Protected |
A |
| F1 | ABS, Automatic Brake Differential ECU | 15 |
| F2 | Transmission Control Unit, ECS Relay, Seat Warmer Unit | 10 |
| F3 | Immobilizer(Diesel), Stop Switch | 10 |
| F4 | AUDIO Switch, AUDIO | 10 |
| F5 | O/SMIRR, C/LIGHTER | 15 |
| F6 | Room Lamp, Door Lamp, Luggage Room Lamp | 10 |
| F7 | Hazard Switch | 15 |
| F8 | Defogger Relay | 20 |
| F9 | STICS Joint Conn. #1, Audio | 10 |
| F10 | Power Relay | 30 |
| F11 | Automatic Brake Differential ECU | 15 |
| F12 | Sun Roof Relay | 20 |
| F13 | Transfer Case Control Unit, Transfer Case unit | 20 |
| F14 | Blower Motor Relay | 30 |
| F15 | Stop Lamp Switch | 15 |
| F16 | Air Conditioner, Door Lock, Seat Warmer Unit | 15 |
| F17 | Power Window Relay, Diagnosis Connector | 10 |
| F18 | Engine Room Relay, Hazard Switch | 15 |
| F19 | Back up Lamp | 10 |
| F20 | Transfer Case, Transfer Case Control Unit, Sun Roof, Auto Dimming Room Mirror | 10 |
| F21 | Speed Sensor, Diagnosis Connector, Joint Conn. #5 | 10 |
| F22 | Diode, Over Voltage Protection Relay, Preheat Control Unit, Shift Lock Relay | 10 |
| F23 | Air Bag Unit | 10 |
| F24 | ECS Relay | 15 |
| F25 | Antenna Motor | 10 |
| F26 | FRT Wiper Relay, Motor | 15 |
| F27 | RR Washer / Wiper Motor | 10 |
| F28 | A/C Relay, Joint Conn. #3 | 10 |

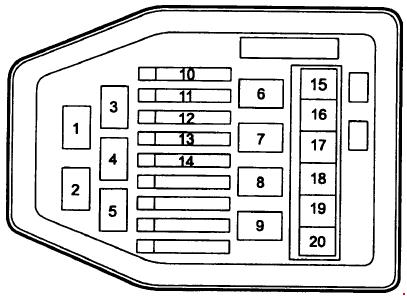

Engine Compartment Fuse Box
| No. |
A |
Circuit Protected |
| 10 | 10 | Horn |
| 11 | 15 | Tail/Rear Fog Lamp |
| 12 | 15 | Head Lamp (HI) |
| 13 | 15 | Head Lamp (LO) |
| 14 | 15 | Front Fog Lamp |
| 15 | 20 | Over Voltage Protection Relay (Gasoline) |
| 16 | 30 | Tail Lamp |
| 17 | 30 | Head Lamp |
| 18 | 30 | Engine |
| 19 | 30 | Ignition Switch |
| 20 | 50 | Battery |
| Relay | ||
| 1 | Tail Lamp | |
| 2 | Horn | |
| 3 | Register (Gasoline) | |
| 4 | Front Fog Lamp | |
| 5 | Condenser Fan | |
| 6 | Compressor (Diesel) Condenser Fan (Gasoline) |
|
| 7 | Condenser Fan | |
| 8 | Head Lamp (HI) | |
| 9 | Head Lamp (LOW) | |

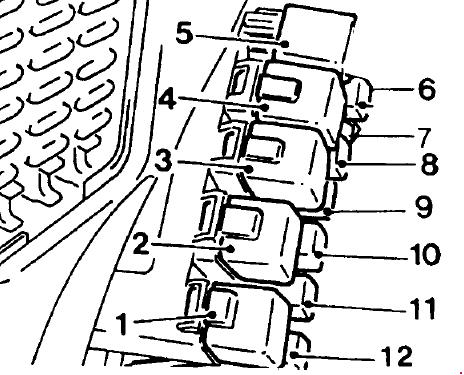

Relay Box
| No. |
Relay |
| 1 | Front Wiper Relay |
| 2 | Automatic Brake Differential 5.0 Ground Relay |
| 3 | Hazard Warning Flasher Relay |
| 4 | Fuel Pump Relay |
| 5 | Shift Lock Relay |
| 6 | Defogger Relay |
| 7 | ECS Relay |
| 8 | Rear Fog Lamp Relay |
| 9 | Power Window Relay |
| 10 | Air Conditioner Relay |
| 11 | Sun Roof Relay |
| 12 | Clutch lnterlock Relay (Manual Transmission) Neutral Relay (Automatic Transmission) |

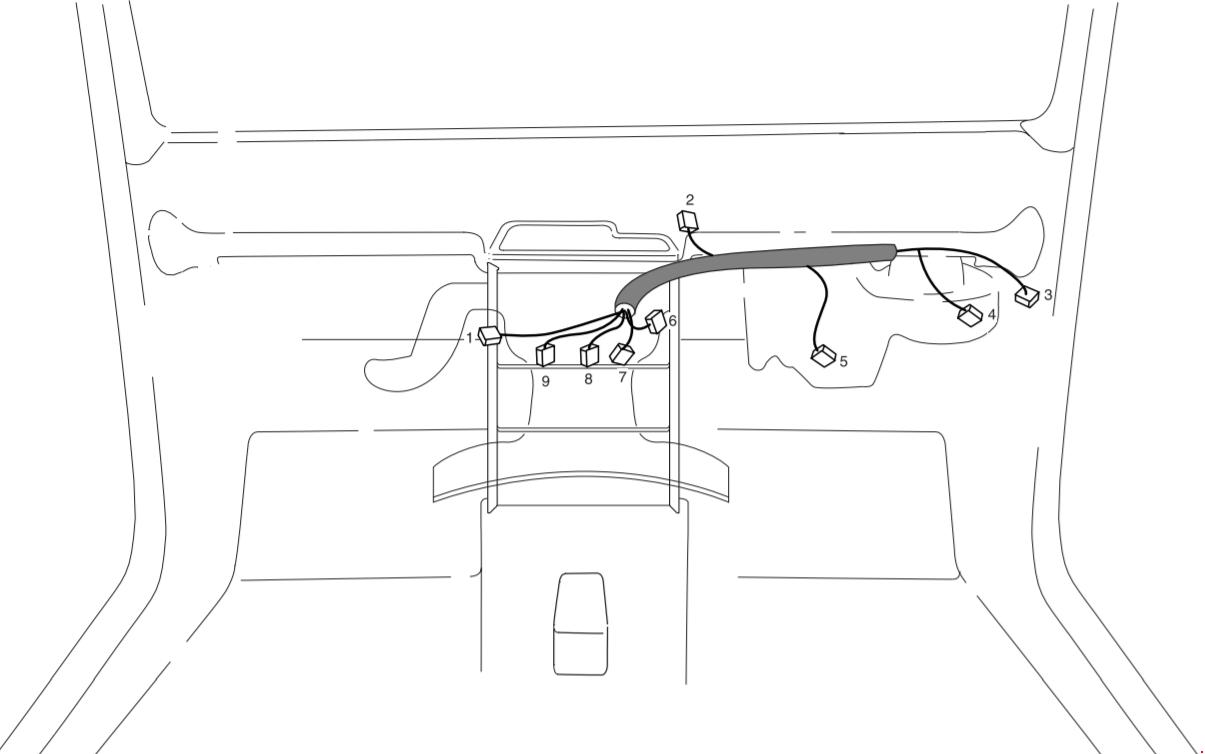

Blower Relay (No. 6)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
