Daewoo Nexia (2009 – 2012) – fuse box diagram

Daewoo Nexia (2009 – 2012) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012

Fuse box diagram

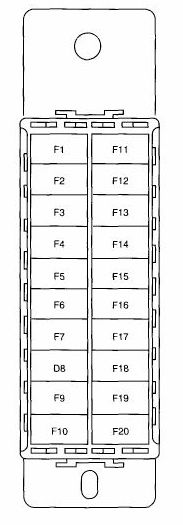

Daewoo Nexia – fuse box diagram

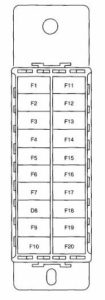

Daewoo Nexia – fuse box diagram
Power supply Classification No. A Protected components
30 BAT(+) Blade Type F1 10 Trunk Lamp, Room Lamp
F2 10 Head Lamp S/W, DLC, Digital Clock, Door Opening Warning Lamp, Key Reminder S/W
F3 15 Hazard Lamp
F4 15 Central Door Locking System, Ani Theft
F5 10 PCM
F6 10 Audio
F7 15 Stop Lamp
Diode D8 Door Contact Switch Driver
15C ACC Blade Type F9 10 Audio, Key Interlock
F10 15 Cigar Lighter
15 IGN 1 ON F11 10 I/P, Digital Clock, Seat belt Warning lamp, DRL
F12 10 Reverse (Back-up) Lamp, Anti-Theft
F13 15 Air Bag
F14 15 Alternator, Injector, VSS (M/T)
Shifting Solenoid (A/T), Carbon Canister Purge Solenoid LEGR, Cam Sensor, O2 Sensor, PCM
F15 15 Ignition Coil (El System)
F16 15 Turn Signal, Electric Outside Rear View Mirror
F17 15 PCM, VGIS (DOHC)
15 IGN 2 ON F18 20 Wiper, Stop Lamp
F19 10 EBCM
A/C Compressor, Cooling Fan Relay
Radiator Cooling Fan Relay A, B
Power Window Relay, Rear Window Defroster Relay Sun Roof
F20 20 Blower Motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
