Dacia Solenza (2004) – fuse box diagram

28 June 2019 admin Dacia, Solenza 0

Dacia Solenza (2004) – fuse box diagram

Year of production: 2004

Passenger compartment

The cockpit fuse box is placed in driving post left side, being attached on the dashboard lateral side.
Dacia Solenza - fuse box diagram - passenger compartment
Dacia Solenza – fuse box diagram – passenger compartment
Fuse [A] Circuit protected
F02 15 Instrument panel, UCE cockpit (ceiling lamp), radio (I.C.)
F03 20 UCE cockpit, climate control panel AC (I.C.)
F04 15 U.C.E. cockpit, diagnostic socket, UCE airbag, anti-starting bushing (DC)
F05 10 U.C.E. injection, fuel pump relay/ ignition coil, instrument panel (DC)
F06 10 Windscreen washer-wiper switch (windscreen washing pump), reverse driving switch, STOP contact (I DC), air conditioning climate control panel.
F07 20 Windscreen wiper switch, UCE cockpit (wiper timer operation), windscreen wiper motor (stopping at fix point).
F08 7,5 Left meeting lights, instrument panel (indicator)
F09 7,5 Right meeting lights
F10 7,5 Left road lights, instrument panel (indicator)
F11 7,5 Right road lights
F12 15 Acoustic warning
F13 25 UCE cockpit(turning lights and hazard), diagnostic socket (IIC)
F14 7,5 Front/rear parking lights, lighting: switches, climate control panel, instrument panel, lighter, radio.
F15 7,5 Front/rear right parking lights
F16 15 Lighter, radio
F17 30 Climate control blower
F19 7,5 Fog lamp, instrument panel (indicator)
F20 25 Rear window defrosting
F21 5 U.C.E. injection
F23 30 Electric left/right window switch
F26 30 Climate control blower
F28 20 Fog projectors
The fusible F26 is used only for vehicles equipped with air conditioning


Engine compartment

Vehicles without air conditioning

The fuse box placed in the engine compartment is attached in front of the left shock absorber column.

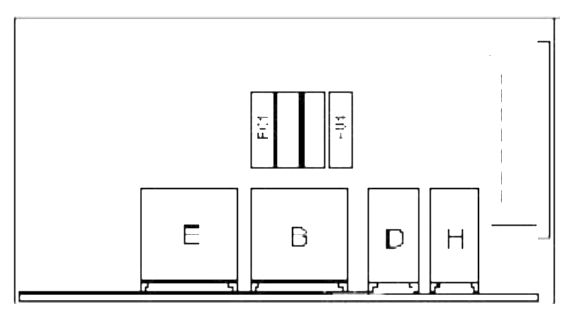

Dacia Solenza - fuse box diagram - engine compartment (without A/C)
Dacia Solenza – fuse box diagram – engine compartment (without A/C)
Fuse [A] Circuit protected
F01 25 Engine cooling fan
F04 30 Injectors, oxygen sensor heating resistance, canister purging valve, injection computer, fuel pump, ignition coil., vehicle speed transducer
B 30 Engine cooling fan
D 30 Injectors, canister purging valve, oxygen sensorheating resistance, injection computer, and vehiclespeed transducer.
E* 30 Fog projectors
H 30 Fuel pump Ignition coil
∗- for vehicles equipped with fog projectors


Vehicles with air conditioning

The fuse box placed in the engine compartment is attached in front of the left shock absorber column,

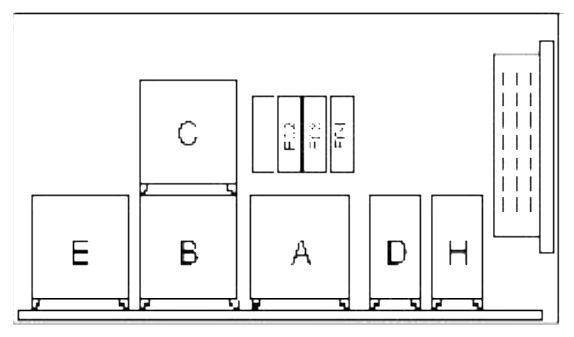

Dacia Solenza - fuse box diagram - engine compartment (with A/C)
Dacia Solenza – fuse box diagram – engine compartment (with A/C)
Fuse [A] Circuit protected
F02 40 Engine cooling fan
F03 7,5 AC compressor
F04 30 Injectors, oxygen sensor heating resistance, canister purging valve, injection computer, fuel pump, ignition coil, vehicle speed transducer
A 30 AC compressor
B 30 Engine cooling fan – 1/st speed
C 40 Engine cooling fan – 2/nd speed
D 30 Injectors, canister purging valve, oxygen sensor heating resistance, injection computer, and vehicle speed transducer
E* 30 Fog projectors
H 30 Fuel pomp, ignition coil
∗- for vehicles equipped with fog projectors
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
