Citroën E-Méhari  (2017 – 2018) – fuse box diagram

Citroën E-Méhari  (2017 – 2018) – fuse box diagram

Year of production: 2017, 2018

Passenger compartment

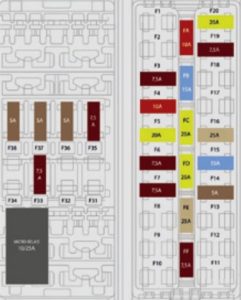

Citroen E-Mehari – fuse box diagram – passenger compartment
Citroen E-Mehari – fuse box diagram – passenger compartment
Description Fuse rating Protected component
F3 7.5A Rear foglamp
F4 10A +12V switched, brake + third brake lamps
F5 20A +12V switched, radio – navigation screen – aerial
F6 7.5A Left-hand brake lamp (GEN1 only)
F7 7.5A Right-hand brake lamp (GEN1 only)
F14 5A +12V switched, front/rear defrosting-cabin fan relay
F15 15A 12V accessory socket
F16 25A Front wiper and screenwash (GEN1 only)
F19 7.5A +12V BAT starting key – dashboard
F20 20A +12V BAT radio – navigation screen – aerial
F35 7.5A +12V switched, switch illumination – diagnostic socket
F36 5A +12V switched, IER telemetry box
F37 5A +12V switched, navigation screen – radio
F38 5A +12V BAT cabin UCE (BCM) – drive selector
FA 10A Spare fuse
FB 15A Spare fuse
FC 20A Spare fuse
FD 20A Spare fuse
FE 25A Spare fuse
FF 7.5A Spare fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
