Year of production: 1998

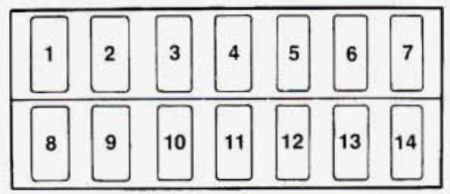

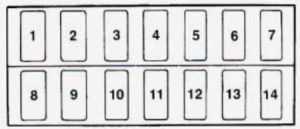

Instrument panel fuse block
This fuse box is under the left side of the instrument panel.
| Fuses | Usage |
| 1 | Empty |
| 2 | Empty |
| 3 | Dome Lamp, Sidemarker Lamps, Parking Lamps, License Plate Lamp, Instrument Panel Illumination |
| 4 | Stoplamps, Horn |
| 5 | Hazard Lamps |
| 6 | Door Lock (Option) |
| 7 | Lighter, Radio |
| 8 | Ignition System, Warning and Indicator Lights, Gages, Four-wheel Drive System (Option) |
| 9 | Turn Signal Flasher, Back-up Lamps |
| 10 | Wiperwasher |
| 11 | Rear Defogger |
| 12 | Heater |
| 13 | Empty |
| 14 | Empty |
Main Fuse Block
The main fuse box in your engine compartment protects all electrical loads.
| Fuses | Usage |
| BATT | All Electrical Load |
| ABS | Anti-Lock Brake System |
| IG | Ignition, Lighter, Radio, WiperNasher, Rear Defogger, Turn Signals, Back-up Lamps, Heater |
| LAMP | Taillamps, Dome Lamp, Stop Lamps, Horn, Hazard Lamps |
| H/L, L | Left Side Headlamp |
| H/L R | Right Side Headlamp |
| FI | Fuel Injection System |
| A/C | Air Conditioning |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
