Year of production: 1993, 1994
Instrument panel

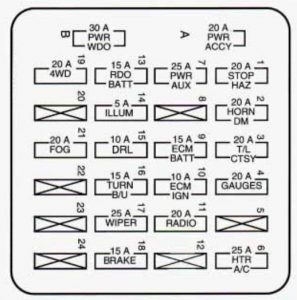

The fuse block is in the instrument panel on the driver’s side.
instrument panel
| Fuses/Circuit Breaker | Name | Circuit protected |
| A | PWR ACCY | Power Door Locks |
| B | PWR WDO | Power Window |
| 1 | STOP/HAZ S | Stop Lamps, Hazard Lamps, Chime Module |
| 2 | HORN/DM | Dome Lamp, Lighted Visor Mirror, Glove Box Lamp, Horn, I/P Courtesy Lamps, Power Mirror |
| 3 | T/L CTSY | Electric Shift Transfer Case Module, Park Lamps, License Plate Lamp |
| 4 | GAUGES | Auto Transmission, Alternator Field, Variable Throttle Control, A/C Compressor, Cluster, Chime Module, Four-wheel Drive Indicator Lamp, Heated Oxygen Sensor, Daytime Running Lamps Module |
| 5 | (NOT USED) | — |
| 6 | HTR A/C | Blower Motor, Temperature Door Motor |
| 7 | PWR AUX | Pwr Auxiliary Outlets |
| 8 | (NOT USED) | — |
| 9 | ECM BATT | Engine Computer (Battery), ABS Battery, Fuel Pump |
| 10 | ECM IGN | Engine Computer (Ignition), Injectors, Engine Sensors |
| 11 | RADIO | Radio, Inside Rearview Mirror Map Lamps |
| 12 | (NOT USED | — |
| 13 | RDO/BATT | Clock, Radio Battery, CD Player |
| 14 | ILLUM | Cluster Illumination, Ash Tray Lamp, Radio Illumination, Heater Lamp, Four-wheel Drive Illumination, Chime Module, Fog Lamp Switch Illumination, Daytime Running Lamps |
| 15 | DRL | Daytime Running Lamps (Canada Only) |
| 16 | TURN B/U | Turn Signals, Backup Lamp |
| 17 | WIPER | Windshield Washer, Windshield Wiper Motor |
| 18 | BRAKE | Speedometer, Anti-lock Braking System, Cruise Control |
| 19 | 4WD | Four-wheel Drive |
| 20 | (NOT USED) | — |
| 21 | FOG | Fog Lamps |
| 22 | (NOT USED) | — |
| 23 | (NOT USED) | — |
| 24 | (NOT USED) | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
