Audi 200 (C3; 1989 – 1991) – fuse box diagram

Audi 200 (C3; 1989 – 1991) – fuse box diagram

Year of production: 1989, 1990, 1991

Fuses

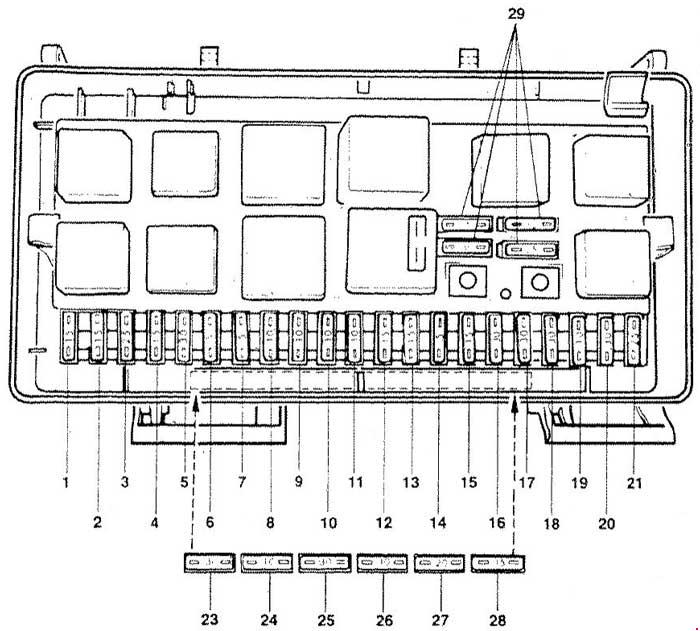

Audi 200 C3 – fuse box diagram
Audi 200 C3 – fuse box diagram

  A
Description
1 15 Fog lights, rear fog lights
2 15 Emergency flashers
3 25 Horn, brake lights
4 15 Reading lights, luggage compartment, cigar lighter, interior lights, make-up mirror, Board Computer
5 30 Not used
6 5 Side marker, park lights, right
7 5 Side marker, park lights, left
8 10 Hi-beam headlight, hi-beam indicator light
9 10 Hi-beam headlight, left
10 10 Low beam, headlight, right
11 10 Low beam, headlight, left
12 15 Instrument cluster, back-up lights, cruise control, electronic thermoswitch
13 15 Fuel pump
14 5 Glove compartment, engine compartment, license plate lights
15 25 Windshield wipers
16 30 Rear window heat element, outside mirror heat element
17 30 Fresh air blower
18 5 Rear wiper (wagon)
19 10 Central locking system and fuel injection control unit 100, 100 Quattro
20 30 Heated seats with Memory Seat
21 25 Not used
22 Not used
23 30 Not used
24 10 Not used
25 30 Power seats with memory, passenger power seat
26 5 Auto-Check, power mirrors, driver’s seat memory control
27 10 Ignition control unit 100, 100 Quattro
28 15 Fuel injection control unit II
29 Spare fuses

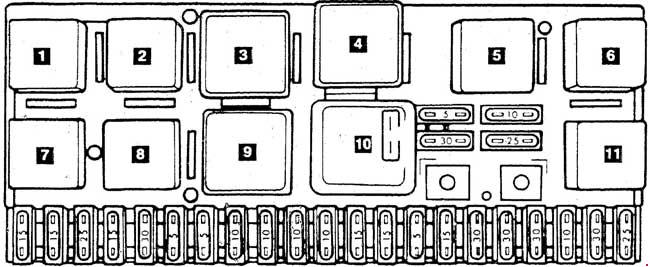

Audi 200 C3 – fuse box diagram
Audi 200 C3 – fuse box diagram
Description
1 Open
2 Radiator cooling fan (stage 2)
3 100 models — radiator cooling fan after-run
200 models — radiator cooling fan (stage 1)
4 Not used
5 Load reduction relay
6 Not used
7 Horn
8 Anti-theft relay
9 Intermittent washer/wiper
10 Fuel pump
11 A/C relay

Auxiliary relay panel

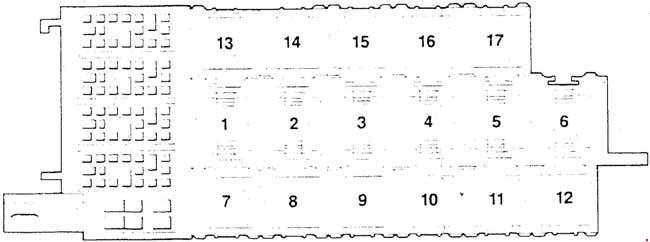

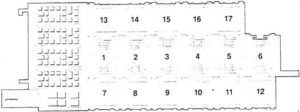

Audi 200 C3 – fuse box diagram – auxiliary relay panel
Audi 200 C3 – fuse box diagram – auxiliary relay panel

Description
1 Open
2 Seat belt/park light radio warning control unit
3 Interior light delay control unit
4 Open
5 Lamp control unit, front
6 Open
7 Rad coolant fan relay 3rd stage
8 ABS combination relay
9 Intensive washer relay
10 Power window control unit
11 Power window control unit
12 Rear window wiperwasher relay
13 Open
14 Circuit breaker for windows
15 Driver heated seat relay
16 Passenger heated seat relay
17 Open

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
