Chevrolet Lumina (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

Chevrolet Lumina - wiring diagram - fuse box - instrument panel
Chevrolet Lumina – wiring diagram – fuse box –
instrument panel
Circuit Breaker Usage
C Power Windows
D Power Seats
Fuse Description
1 CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter
4 WAC– WAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Blower Control Switch
5 HAZARD FLASHER
6 R.H. SPOT LAMP (S.E.O.)
10 UP ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft-Deterrent Module, Radio, ALDL
11 STARTER RELAY
12 ANTI-THEFT — Theft Deterrent Module
13 ABS — Electronic Brake Control Module (EBCM), ABS Relay
14 HVAC BLOWER MOTOR — Blower Motor Relay
15 L.H. SPOT LAMP (S.E.O.)
19 POWER ACCESSORY (Power)#l — Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch
20 POWER ACCESSORY #2–(Sunroof) Control Unit
21 AIR BAG — Air Bag System
22 CRUISE CONTROL–Cruise Control Cut-Out Switch
23 STOPLAMPS — TCC/Brake Switch
25 ENGLISWMETRIC (S.E.O.)
28 CTSY LAMPS — Vanity Mirrors, IP Compartment Lamp, Header Courtesy and Reading Lamp, US Lighted Rearview Mirror, Dome Lamp
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn Signal Flasher
32 POWER LOCKS — Door Lock Relay, Keyless Entry Receiver
33 DRL MODULE
37 REAR DEFOG–HVAC Control Assembly Rear Window Defogger Switch
38 RADIO — Radio, Steering Wheel Radio Switches, Power Drop
39 I/P ELECTRONICS IGNITION FEED — Headlamp Switch, TCCBrake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, BTSI SwitchUnderhood Electrical Center – Passenger Side
41 POWER DROP
42 ENHANCED EVAP. SOLENOID

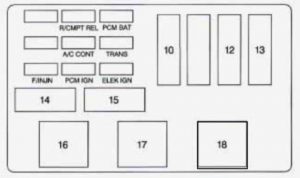

Underhood Electrical Center — Passenger’s Side

Chevrolet Lumina -  wiring diagram - fuse box - passenger side underhood electrical center
Chevrolet Lumina – wiring diagram – fuse box – passenger side underhood electrical center
Fuse Description
R/CMPT REL Remote Trunk Release, Back-Up Lamps
PCM BAT Powertrain Control Module (PCM), Fuel Pump, Fuel Pump Relay, Fan Cont#l and #2 Relay
A/C CONT A/C CMPR Relay (VIN M only)
TRANS Automatic Transaxle, Transaxle Range Switch (VIN M only)
F/INJN Fuel Injectors
PCM IGN Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, Vacuum Canister Switch
ELEK IGN Electronic Ignition (EI) Control Module
10 I/P Fuse Block
12 Passenger’s Side Underhood Electrical Center, FPMP Relay, Cooling Fans #I and #2, Ignition Relay, P/N Switch
13 FAN CONT #1 Relay



Relay Description
14 FUEL PUMP
15 A/C CMPR
16 FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17 FAN CONT #1– Primary Cooling Fan (Driver Side)
18 Ignition Relay

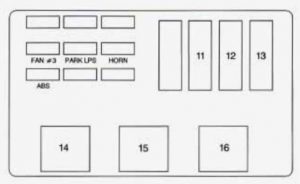

Underhood Electrical Center — Driver Side

Chevrolet Lumina -  wiring diagram - fuse box - driver side underhood electrical center
Chevrolet Lumina – wiring diagram – fuse box – driver side underhood electrical center
Fuse Usage
FAN#3 FAN CONT #3 Relay
PARK LPS Headlamp Switch
HORN Horn Relay, Underhood Lamp
ABS Anti-Lock Brake System
11 IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses PWR WDO and Circuit Breaker D; Passenger’s Side Underhood Electrical Center: F/IJN, ECM IGN, TCC, ENG EMIS and ELEK IGN Fuses
12 HD LPS — Circuit Breaker to Headlamp Switch
13 ABS — ABS Relay



Relay Description
14 ABS — Anti-Lock Brake System
15 FAN CONT #3 — Secondary Cooling Fan (Passenger’s Side)
16 HORN
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
