Chevrolet Lumina (1998 – 2001) – fuse box diagram

Year of production: 1998, 1999, 2000, 2001

Instrument Panel Fuse Block

Chevrolet Lumina - wiring diagram - fuse box -  instrument panel
Chevrolet Lumina – wiring diagram – fuse box –
instrument panel
Circuit Breaker Usage
A Not Used
B Not Used
C Power Windows
D Power Seats
E Not Used
Fuse Description
1 CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter
2 Not Used
3 Not Used
4 HVAC — HVAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Defogger Relay, (S.E.O.) Digital Speedometer
5 Hazard Flash
6 R.H. Spot Lamp (S.E.O
7 Starter Relay
8 Not Used
9 Not Used
10 I/P Electronics Battery — Chime Module, Electronic Brake Control Module (EBCM), Theft-Deterrent Module, Radio DL
11 Power Accessory #2 — Sunroof Control Unit, (S.E.O.) Accessory Feed
12 Anti-Theft/PCM — Theft-Deterrent Module, Powertrain Control Module, (PCM) IGN Syst. Relay
13 ABS — Electronic Brake Control Module (EBCM), ABS Relay
14 HVAC Blower Motor — Blower Motor Relay
15 L.H. Spot Lamp (S.E.O)
16 Steering Wheel Control #1 — Steering Wheel Radio Control Lighting
17 Not Used
18 Not Used
19 Power Accessory #1 — Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch, (S.E.O.) Emergency Vehicle-Rear Compartment Lid Lamp or Window Panel Lamps
20 Steering Wheel Control #2 — Steering Wheel Radio Controls
21 Air Bag — Air Bag System
22 Cruise Control — Cruise Control Cut-Out Switch, Cruise Control Module, Turn Signal Cruise Control Switch
23 Stoplamps — Stoplamp Switch (Brake)
24 Not Used
25 English/Metric (S.E.O.)
26 Not Used
27 Not Used
28 CTSY Lamps — Vanity Mirrors, I/P Compartment Lamp, US Lighted Rearview Mirror, Dome Lamp
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn Signal Flasher
31 Not Used
32 Power Locks — Door Lock Relay, Remote Keyless Entry Receiv
33 DRL MDL — Daytime Running Lamp Module, (S.E.O.) Accessory Switch
34 Not Used
35 Not Used
36 Not Used
37 Rear Defog — Rear Window Defogger Switch Relay
38 Radio — Radio, Power Drop
39 I/P Electronics Ignition Feed — Headlamp Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, Stoplamp switch (TCC and BTSI) (S.E.O.) Accessory Switch
40 Not Used
41 Power Drop
42 Evap. Sol. — Evaporation Emissions (EVAP) Canister Vent Solenoid Valve
43 Not Used
44 Not Used
45 Not Used

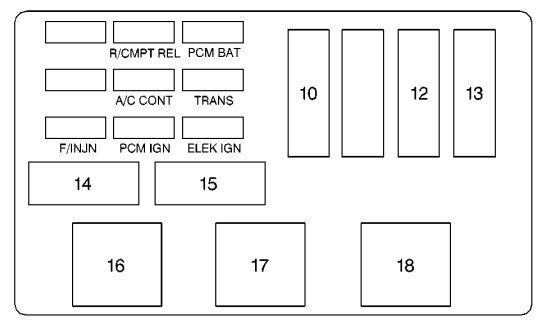

Underhood Electrical Center — Passenger’s Side

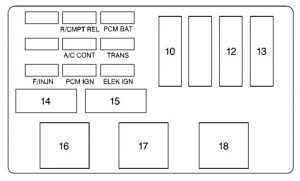

Chevrolet Lumina -  wiring diagram - fuse box - passenger side underhood electrical center
Chevrolet Lumina – wiring diagram – fuse box – passenger side underhood electrical center
Fuse Description
R/CMPT REL Remote Trunk Release, Back-up Lamps, Remote Control Door Lock Receive
PCM BAT Powertrain Control Module (PCM), Fuel Pump Relay, Fan Cont #1 and #2 Rela
A/C CONT A/C CMPR Relay
TRANS Automatic Transaxle
F/INJN Fuel Injectors
PCM IGN Mass Air Flow (MAF) Sensor Heated Oxygen Sensor #1 and #2 Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
ELEK IGN Electronic Ignition (EI) Control Module
10 I/P Fuse Block
12 Passenger’s Side Underhood Electrical Center, IGN SYST Relay, WCMPT REL Fuse, PCM BAT Fuse
13 FAN CONT #1 Relay



Relay Description
14 FUEL PUMP
15 A/C CMPR
16 FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17 FAN CONT #1– Primary Cooling Fan (Driver Side)
18 IGN SYST

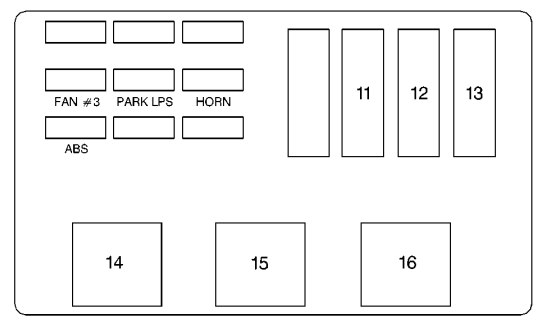

Underhood Electrical Center — Driver Side

Chevrolet Lumina -  wiring diagram - fuse box - driver side underhood electrical center
Chevrolet Lumina – wiring diagram – fuse box – driver side underhood electrical center
Fuse Usage
FAN#3 FAN #3 Relay
PARK LPS Headlamp Switch
HORN Horn Relay
ABS Anti-Lock Brake System
11 Circuit Breaker C, Starter Relay, STR WHL Control # 2, Power Accessory #2, and Theft Deterrent Relay
12 HD LPS — Circuit Breaker to Headlamp Switch
13 ABS — ABS Relay



Relay Description
14 ABS — Anti-Lock Brake System
15 FAN CONT #3 — Secondary Cooling Fan (Passenger’s Side)
16 HORN
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
