Skoda Fabia (2010) – fuse box diagram

Skoda Fabia (2010) – fuse box diagram

Year of production: 2010

Fuse box in the dash panel

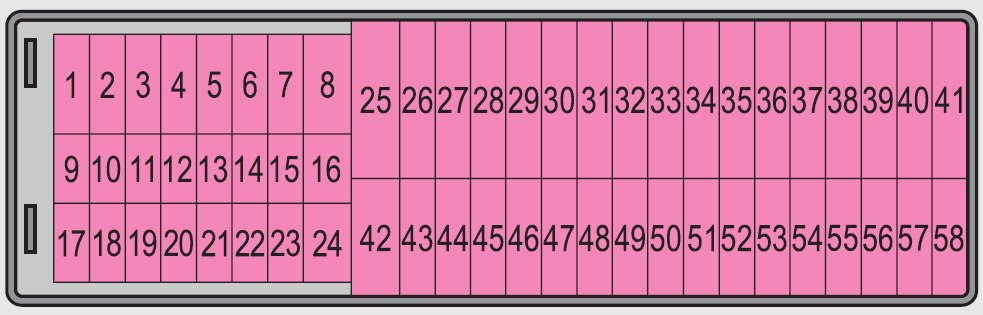

Skoda Fabia - fuse box diagram - dash panel-2007
Skoda Fabia – fuse box diagram – dash panel-2007
Number Power consumer Ampere rating [A]
1 Not assigned
2 START – STOP 5
3 Instrument cluster, headlight range adjustment 7,5
4 ABS control unit 5
5 Petrol engine: Brake light switch, cruise control system 5
6 Reversing light (manual gearbox) 10
7 Ignition 15
Engine control unit, automatic gearbox 7,5
8 Brake pedal switch, coolant fan 5
9 Operating controls for the heating, control unit for air conditioning
system, parking aid, control unit for cornering lights, coolant fan
5
10 Air conditioning a) 7,5
11 Mirror adjustment 5
12 Control unit for trailer detection 5
13 Control unit for automatic gearbox 5
14 Motor for halogen projector headlights with cornering light function 10
15 Navigation PDA 5
16 Electrohydraulic power steering 5
17 START – STOP – radio 10
Daylight driving lights 7,5
18 Mirror heater 5
19 S-contact 5
20 Engine control unit 5
Engine control unit 7,5
Fuel pump relay 15
Fuel pump control unit 15
21 Reversing light, fog lights with the function “CORNER” 10
22 Operating controls for the heating, control unit for air conditioning system, parking aid, mobile phone, instrument cluster, steering angle sender, ESP, vehicle voltage control unit, multifunction steering wheel 7,5
23 Interior lighting, storage compartment and luggage compartment, side lights 15
24 Central control unit of the vehicle 5
25 Seat heaters 20
26 Rear window wiper 10
27 Not assigned
28 Petrol engine: AKF valve, petrol engine: Control flap 10
29 Injection, water pump 10
30 Fuel pump 15
Ignition 20
Cruise control system, operation of PTC relay 5
31 Lambda probe 10
32 High pressure pump, pressure valve 15
33 Engine control unit 30/15
34 Engine control unit 15
Vacuum pump 20
35 Power supply of ignition lock 5
36 Main beam light 15
37 Rear fog light 7,5
38 Fog lights 10
39 Blower 30
40 Heatable windscreen washing nozzles, windscreen cleaning system 15
41 Not assigned
42 Rear window heater 25
43 Horn 20
44 Front window wiper 20
45 Central control unit for convenience system 25/10
46 Anti-theft alarm system 15
47 Cigarette lighter, power socket in the luggage compartment b) 15
48 ABS, START-STOP – DC/DC converter ESP 15
49 Turn signal lights, brake lights 15
50 START-STOP – DC/DC converter infotainment 30
Radio 10
51 Electrical power window (at the front and rear on the left) 25
52 Electrical power window (at the front and rear on the right) 25
53 Parking light – left side 5
Electric sliding/tilting roof
54 START-STOP – instrument cluster 5
Anti-theft alarm system 15
55 Control unit for automatic gearbox DSG 30
56 Headlight cleaning system 25
Parking light – right side 5
57 Left low beam, headlight range adjustment 15
58 Low beam on the right 15
a) Only valid for some countries.
b) If the engine is switched off already one electrical component which is connected can discharge the battery.

Fuse box at battery (manual gearbox, automatic gearbox DSG)

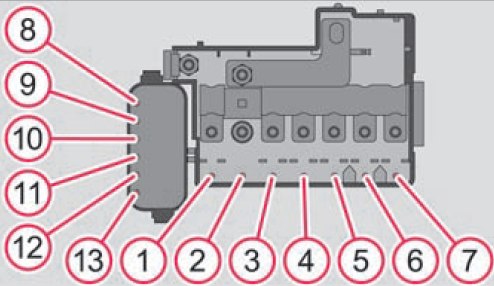

Skoda Fabia - fuse box diagram - engine compartment (manual gearbox)
Skoda Fabia – fuse box diagram – engine compartment (manual gearbox)
Number Power consumer Ampere rating [A]
1 Dynamo 175
2 Not assigned
3 Interior 80
4 Electrical auxiliary heating system 60
5 Interior 40
6 Glow plugs, coolant fan 50
7 Electrohydraulic power steering 50
8 ABS or TCS or ESP 25
9 The radiator fan 30
10 The radiator fan 5
11 ABS or TCS or ESP 40
12 Central control unit 5
13 Automatic gearbox 5
Electrical auxiliary heating system 30



Fuse box at battery (automatic gearbox)

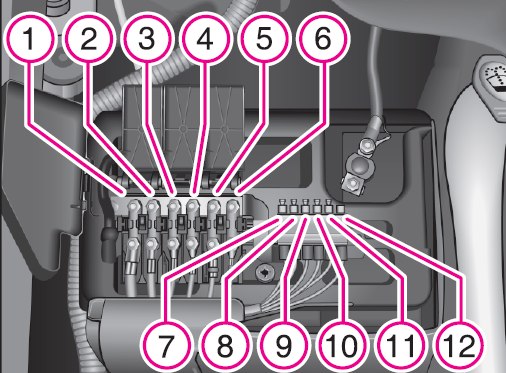

Skoda Fabia - fuse box diagram - engine compartment
Skoda Fabia – fuse box diagram – engine compartment
Number Power consumer Ampere rating [A]
1 Dynamo 175
2 Interior 80
3 Electrical auxiliary heating system 60
4 ESP 40
5 Electrohydraulic power steering 50
6 Glow plugs 50
7 ESP 25
8 The radiator fan 30
9 Air conditioning system 5
10 ABS 40
11 Central control unit 5
12 Automatic gearbox 5
Electrical auxiliary heating system 40

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
