Chevrolet Express (1997) – fuse box diagram

Chevrolet Express (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

The fuse block access door is on the driver’s side of the instrument panel below the
hood release lever.

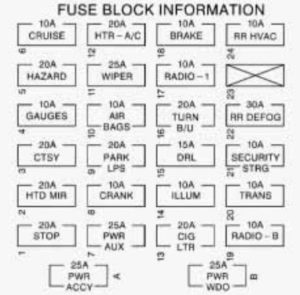

Chevrolet Express – fuse box – instrument panel
Chevrolet Express – fuse box – instrument panel
Fuse position Fuse name Circuit protected
1 STOP Stop/CHMSL, Stoplamps
2 HTD MIR Electric Heated Mirrors
3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5 Hazard Hazard LampsKHIME Module
6 CRUISE Cruise Control
7 PWR AUX Auxiliary Power Outlet, ALDL
8 Crank
9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
10 AIR BAGS SDM
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C NC, A/C Blower, High Blower Relay, HTD Mirror
13 CIG LTR Power Amp, Cigarette Lighter, Door Lock Relay
14 ILLUM LP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination
15 DRL DRL Relay
16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17 RADIO- 1 Radio (Ign, Accy)
18 BRAKE 4WAL PCM, ABS, Cruise Control
19 RADIO-B Radio (Battery), Power Antenna
20 TRANS PRNDL, Automatic Transmission
21 STRG/SECURITY EVO Steering, European Security System
22 RR DEFOG Rear Window Defog
23 Not Used
24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays
A PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B PWR WDO Power Windows

Engine Compartment Fuse Relay Center

The fuse block is on the driver’s side of the engine compartment at the rear.

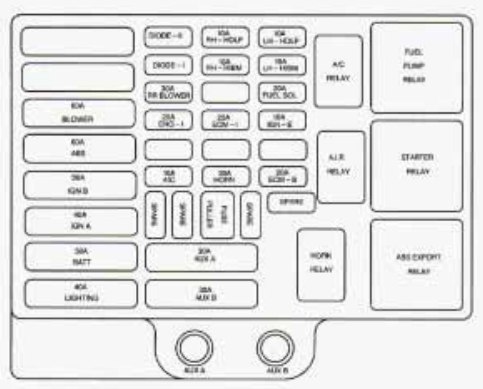

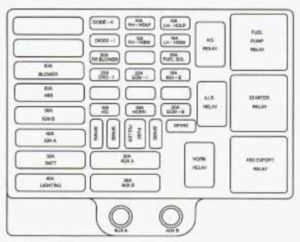

Chevrolet Express – fuse box – engine compartment
Chevrolet Express – fuse box – engine compartment
Fuse name Circuit protected
BLOWER Blower Motor
ABS Electronic Brake Control Module
IGN-B Starter Relay, Ignition Switch
IGN-A Instrument Panel Fuse Block
BATT Instrument Panel Fuse Block
LIGHTING Instrument Panel Fuse Block, Headlamp Switch
RR BLOWER Rear Auxiliary Blower Motor Relays
ENG- 1 Heated 02 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel)
A/C Air Conditioning Clutch Relay
SPARE Spare Fuses
AUX A Upfitter Provisions
AUX B Upfitter Provisions
RH-HDLP Right-hand Headlamp (Export Only)
RH-HIBM Right-hand High-beam Headlamp (Export Only)
ECM-I Ignition Coil, Crankshaft Position Sensor, VCM, Fuel Injectors, Coil Driver
HORN Horn Relay, Underhood Lamp( s)
LH-HDLP Left-hand Headlamp (Export Only
LH-HIBM Left-hand High-beam Headlamp (Export Only)
FUEL SOL PCM, Fuel Solenoid Driver, Engine Shutoff Solenoid
IGN-E Air Conditioning Clutch Relay
ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
