Chevrolet Evanda (2000 – 2006) – fuse box diagram

Chevrolet Evanda (2000 – 2006) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

Engine compartment fuse box

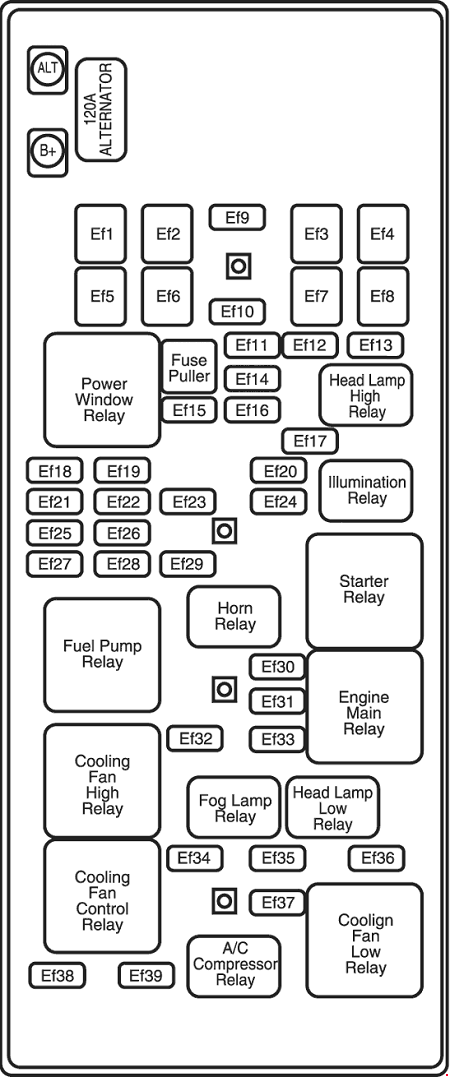

Chevrolet Evanda – fuse box diagram – engine compartment
Chevrolet Evanda – fuse box diagram – engine compartment
No. A Fuse Name Usage
Ef1 30 HVAC BLWR Blower Relay
Ef2 60 BCM BATT BCM
Ef3 60 ABS EBCM
Ef4 30 IGN1 Ignition Switch
Ef5 20 PWR WIDW Driver’s Power Window/Door Lock Switch
Ef6 20 COOL FAN HI Cooling Fan High Relay
Ef7 20 COOL FAN LOW Cooling Fan Low Relay
Ef8 30 ST/IG2 Ignition Switch, Starter Relay
Ef9 15 SPARE Spare
Ef10 10 SPARE Spare
Ef11 20 SPARE Spare
Ef12 25 SPARE Spare
Ef13 30 SPARE Spare
Ef14 10 ABS WARNING Not Used
Ef15 20 S/ROOF Sun Roof Assembly
Ef16 15 ABS EBCM, ABS Oil Feeding Connector
Ef17 15 HVAC BLWR Head Lamp-LH/RH
Ef18 20 DRIVER’S PWR WIDW Safety Power Window Assembly
Ef19 10 PWR MIRROR Multi-Function Switch
Ef20 10 ILLUM RT Head Lamp-RH, Parking Lamp-RH, Tail Lamp-RH
Ef21 15 BCM BCM
Ef22 25 IP FUSE I/P Fuse Block
Ef23 20 STOP LAMPS Brake Switch
Ef24 10 ILLUM LT Head Lamp-LH, Parking Lamp-LH, Tail Lamp-LH, License Lamp
Ef25 30 PWR SEAT Driver’s Power Seat Switch
Ef26 20 FUEL Fuel Pump Module
Ef27 15 ECM ECM, Engine Main Relay, Automatic Transaxle
Ef28 20 IGN COIL 1~6 Ignition Coil
Ef29 15 HORN Horn Relay
Ef30 15 ENG2 1~6 Injector, VSS, Canister Purge Solenoid valve
Ef31 20 ENG3 Not Used
Ef32
Ef33 15 ENG1 Petrol: EGR Solenoid Valve, Alternator, ECM, VIM Solenoid Valve, Oxygen Sensor, CMP Sensor, MAF Sensor, Canister Vent Solenoid Valve
Diesel: Booster Pressure Actuator, CMP Sensor, Throttle Plate Actuator, EGR Solenoid, Fuel Heater Relay, WIF Sensor, Glow Plug Control Unit
Ef34 15 FRT FOG Front Fog Lamp Relay
Ef35 10 LOW BEAM LT Head Lamp-LH
Ef36 20 PWR AMP Power Amplifier
Ef37 10 LOW BEAM RT Head Lamp-RH, Multi-Function Switch
Ef38
Ef39 10 A/C CMPRSR A/C Compressor Relay

Instrument Panel Fuse Block

Chevrolet Evanda – fuse box diagram – instrument panel
Chevrolet Evanda – fuse box diagram – instrument panel
No. A Fuse Name Usage
F1 10 CLUSTER2 I/P Cluster, Information Display Unit, BCM, RKE Module
F2 25 WIPER Wiper/Washer Switch, Wiper Motor, Rain-Sensing Unit
F3 15 ECU Not Used
F4 10 HVAC BCM, Blower Relay, MTC/FATC Switch, Mode Actuator, Recirculation Actuator
F5 10 CLOCK Front Room Lamp/Sun Roof Switch, BCM, Digital Clock
F6 10 RADIO Audio, Navigation Module
F7 20 HEATING MAT Heating Mat Switch-Driver/Passenger
F8 20 AUDIO Audio
F9 10 CLUSTER1 I/P Cluster, MTC/FATC Switch, Digital Clock, Information Display Unit, BCM, Key In Switch, RKE Module
F10 10 SDM SDM
F11 10 AIR BAG Passenger Air Bag/Seat Belt Warning Lamp, PPD Sensor
F12 10 WASHER Washer/Wiper Switch
F13 10 BCM BCM
F14 20 CIGAR Extra Power Jack, Cigar Lighter
F15 20 SUB WOOFER Woofer Speaker
F16 15 B/UP LP Shift Selector Lever, PNP Switch, Back Up Switch, ECM Room Mirror, Brake Switch, I/P Cluster
F17 15 U/H J/B ECM, Fuel Pump Module, Automatic Transaxle
F18 10 BCM BCM
F19 10 OSRVM Power Mirror-Driver/Passenger, MTC/FATC Switch
F20 15 A/D CONVERTER Not Used
F21 15 SSPS SSPS Module
F22 15 ALDL DLC, Trunk Open Switch
F23 30 ESC EBCM

BCM fuse block

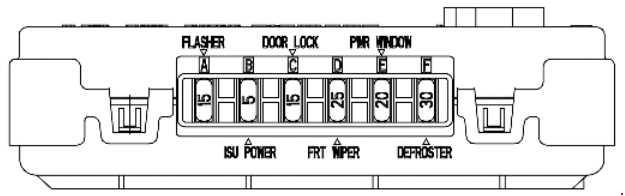

Chevrolet Evanda – fuse box diagram – BCM fuse block
Chevrolet Evanda – fuse box diagram – BCM fuse block
No. A Usage
A 15 Flasher
B 5 BCM Power
C 15 Door Lock
D 25 Front Wiper
E 20 Power Window
F 30 Defroster

Engine compartment fuse box (diesel)

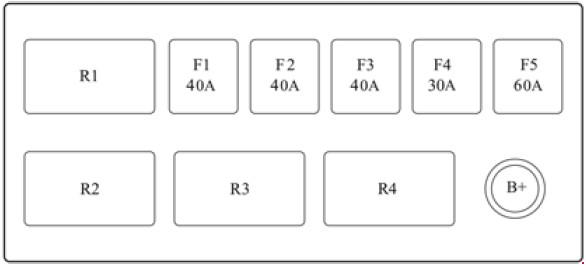

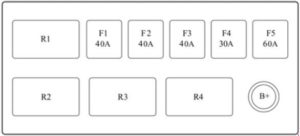

Chevrolet Evanda – fuse box diagram – engine compartment (diesel)
Chevrolet Evanda – fuse box diagram – engine compartment (diesel)
No. A
Usage
F1 40 PTC-3 relay
F2 40 PTC-2 relay
F3 40 PTC-1 relay
F4 30 Fuel filter heater relay
F5 50 Glow plug control unit
Relays
R1 PTC-3 relay
R2 PTC-2 relay
R3 PTC-1 relay
R4 Fuel filter heater relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
