Year of production: 1997

MaxiFuse/Relay Center

The MaxiFuses and relays are located next to the engine compartment fuse block on the driver’s side of the engine

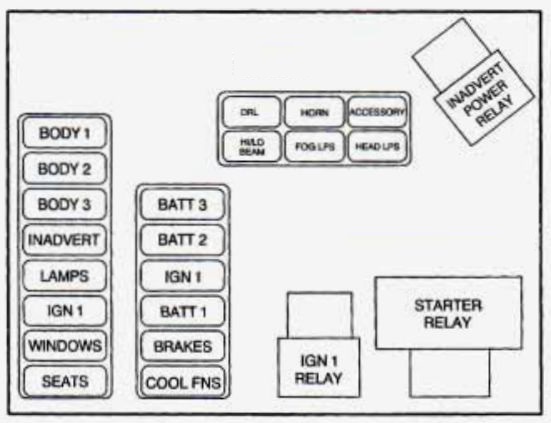

Cadillac Eldoroado – fuse box diagram – maxi fuse/relay center
Cadillac Eldoroado – fuse box diagram – maxi fuse/relay center
Fuse Usage
BODY 1 Real Time Dampening (RTD) Fuse, Convenience Fuse, BATT Fuse, Passenger and Driver Seat Belt Comfort Solenoids, Trunk and Fuel Door Release Solenoids and Relays, Door LocWnlock Relays, DPR Relay (ETC Only), Park Lamp Relay, Right and Left Park Fuse, Rear Fog Lamp Relay
BODY 2 Defog Relay, Pull-Down Fuse, Right and Left Heated Seat Fuse, Electronic Level Control (ELC) FuseRelay, Antenna Fuse, Heated Mirror Fuse
BODY 3 Controlled Bower Relay, Controlled Power Back-up Relay, Cluster Fuse, Platform Zone Module (PZM) Fuse, Radio Fuse, DAB Relay, Trunk and
Fuel Door Release Relay, High Beam Relay, C0mf01-t Fuse, Controlled Power Relay, AMP Bose Qnly Fuse, Right and Left Bose Relay
INADVERT Inadvertent Power Relay, Interior Lamps Fuse, Cigarette Lighter- 1 Fuse
LAMPS Headlamp Wash Relay (Export), Headlamps FuseRelay, High/Low Beam Control Relay, Fog Lamp DRL Fuse, Hazard Fuse, Mirror Fuse, Inadvertent Power Relay, Right and Left High Beam Fuse, Right and Left Low Beam Fuse, Stop Fuse, Fog LampDRL Relays
IGN 1 Rear Ignition-1 Relay, Wiper Fuse, Relay Ignition- 1 Fuse, Supplemental
Inflatable Restraint (SIR) Fuse, Accessory Relay
WINDOWS Delayed Accessory Bus (DAB) Relay
SEATS Horn Relay, Driver and Passenger Lumbar IdOut Relays, Driver and Passenger Up/Down Relays
BATT 3 Steering Column Ignition Switch
BATT 2 Steering Column Ignition Switche
IGN 1* Front and Rear Ignition- 1 Relay, Oxygen Sensor 1 and 2 Fuse, Fuel Fuse, Cruise Fuse, DRL Relay, Front and Rear Fog Lamp Relay, Control Power Back-up Relay, Ignition- 1 Fuse
BATT 1 Starter Relay and Solenoid, ParMRev Fuse, Park Relay, PCM Fuse, AC Compressor Fuse and Relay, Fan Relay
BRAKES ABS Brake Modulator
COOL FNS Cooling Fan Relays 1 and 3
* Do not alter OBD II related fuses or circuit breaker

Engine compartment fuse block

The fuse block is located next to the air filter on the driver’s side of the engine

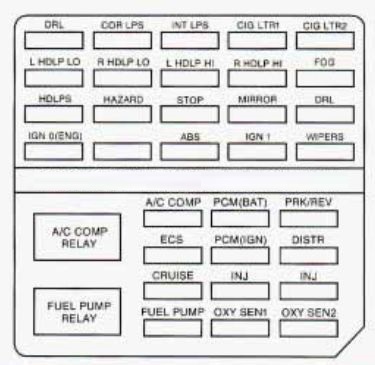

Cadillac Eldorado – fuse box diagram – engine compartment
Cadillac Eldorado – fuse box diagram – engine compartment
Fuse name Usage
DRL Daytime Running Lamps
COR LPS Cornering Lamp Switch, Right and Left Cornering Lamps
INT LPS Trunk Lamp, Courtesy Lamps, Front Vanity Lamps, Glove Box Lamp, Garage Door Opener, Courtesy Lamp Relay
CIG LTR 1 Front and Rear Cigarette Lighters (Full Console Only)
CIG LTR 2 Right and Left Rear Cigarette Lighters
L HDLP LO Left Low-Beam Headlamp
R HDLP LO Right Low-Beam Headlam
L HDLP HI Left High-Beam Headlamp
R HDLP HI Right High-Beam Headlamp
FOG Right and Left Front Fog Lamps Relay (Deville Concours Only)
HDLPS Meadlamp Relay, High/Low Beam Control Relay, Right and Left Low/High Beam Fuses
HAZARD Electronic Flasher Module, TumEIazard Switch, Right and Left Front Turn Lamps, Right and Left Rear Turn Lamps, Right and Left Repeater Lamps (Export), Cluster
STOP Stoplarnp Switch, Centered High-Mounted Stoplamlp (CHMSL), Turn Hazard Switch, ABS Controller, Stepper Motor Cruise Control, Right and Left Rear Stoplamps (Export
MIRROR Inadvertent Power Relay, Left Outside Rearview Mirror Switch, ALDL, Memory Mirror Module Dimmer Switch, Cluster
DRL Daytime Running Lamp (DRL) Relay, Left and Right Low Beam in DRL Mode, DRL Switch
IGN (ENG)* Powertrain Control Module (PCM)
ABS Anti-Lock Brake System (ABS)/Traction Control System
IGN 1 Rear Ignition-1 Relay, Front and Rear Fog Lamp Relays, Control Power Back-up, DRL Relay
WIPERS Accessory Relay, Wiper Switch
A/C COMP AC Compressor Relay, Cooling Fan Relays 1,2,3, Compressor Clutch
A/C COMP A/C Compressor
PCM (BAT)* PCM
PRK/REV TCC and Exterior Travel Brake Switch, Revberse Relay, Electrochromic Mirror (in Header), Park Relay, Brake Transaxle-Shift Interlock (BTSI) Switch, BTSI, PZM
ECS* Transaxle Shift Solenoids, Mass Airflow, Canister Purge, PCM, Linear Exhaust Gas Recirculation (EGR), Front Ignition- 1 Relay, Torque Converter
PCM (IGN)* Powertrain Control Module (PCM)
DISTR* Electronic Ignition Control Module
CRUISE Stepper Motor Cruise Control, Power Steering Pressure Switch, Low Refrigerant Pressure Cutoff Switch, Park Relay
INJ* Injectors 1, 4, 6, 7
INJ* Injectors 2, 3, 5, 8
FUEL PUMP PCM, Fuel Pump Relay, Fuel Pump
FUEL PUMP Fuel Pump
OXY SEN1* Oxygen Sensor Front, CAT Front Oxygen Sensor
OXY SEN2* Oxygen Sensor Rear, Catalytic Convener (CAT) Rear Oxygen Sensor
* Do not alter OBD I1 related fuses or circuit breakers.

Rear Compartment Fuse Block

The fuse block is located on the front wall of the trunk (behind the rear seat) on the driver’s side.

Cadillac Eldorado – fuse box diagram – rear compartment
Cadillac Eldorado – fuse box diagram – rear compartment
Fuse Usage
RLY IGN 1- Cluster, Cruise in Stalk, PZM, Catalytic Converter Overtemp Amplifier (Export), TCC Switch
SIR SDM, Left and Right Door Sensor
ELC ELC Relay, Auto Level Sensor (Eldorado Only), Vacuum Pump, AEC Senso
TURN Electronic Flasher, Turn/Hazard Switch
CONSOLE Rear Zone Blower, Right and Left Heated Seat Switches (Optional)
BRAKE Brake, Vacuum Pump (VP) Relay, VP Motor, VP Pressure Switch
RSS CV-RTD (CV-RSS) (ETC Only)
IGN 0-BODY PRNDL, Dual Zone Switch, PZM, Cluster, Air Control Module (ACM), Upper Zone Motor, Lower Zone Motor (Optional), WAC Solenoids, Climate Control Panel Analog Cluster (Console Shift Only), Rear Defog Relay, ELC Relay
COMFORT CD Player, Remote Keyless Entry (RKE), Controlled Power Relay, Air Control Module (ACM), PZM
AMP (Bose Only) (Optional) Right and Left Hand Bose Relay, Right and Left Front Speakers (On Door), Right and Left Rear Speakers
PZM PZM
RADIO/PHONE Radio Receiver, Radio Interface Module (FtM)(Bose Only), Phone, DAB Relay, Trunk Release Relay, Fuel Door Release Relay, HighLow Beam Relay
CLUSTER Steering Wheel Controls, Cluster
ACC PZM, Electrochromic Mirror, Rain Sensor (Optional), Accessory Relay
HTD MIR Right and Left Outside Heated Mirror
HTD SEAT R Passenger Heated Seat Relay (Optional)
HTD SEAT L Driver Heated Seat Relay (Optional)
PULL DOWN Trunk Pull-Down Motor
HDLP WASH Headlamp Wash Motor
ANTENNA Power Mast Antenna
RSS CV-RTD Module (CV-RSS) (ETC Only)
CONVENC Trunk Release Relay, Trunk Release Solenoid, Fuel Door Release Relay, Fuel Filler Door Release Solenoid, Door Lock Relay, Left Front Door Motors, PZM, Door Unlock Rela
BATT Driver and Passenger Seat Lumbar Switch (Optional), Driver and Passenger Seat Belt Comfort Solenoid, Memory Seat Module
RSS CV-RTD (CV-RSS)(ETC Only)
RT PARK Headlarnp Switches, Rear Fog Lamp Relay, Right and Left Rear Fog Lamps (Export), Right Turn/Stop/Tad Lamps, Right Front and Rear Sidemarker Lamps, Rear Park Lamps, Park Position Lamp (Export)
LT PARK Left Front and Rear Sidemarker Lamps, Front Parking, Park Position Lamp (Export) Lamps, Left Front and Rear Sidemarker Lamps, Right and Left Parking Lamps, Left Turn/Stop/Tail Lamps, Right and Left License Plate Lamps
* Do not alter OBD II related fuses or circuit breakers

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
