Porsche Cayenne (2003 – 2010) – fuse box diagram

Porsche Cayenne (2003 – 2010) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

Fuse box on left side of dashboard

Porsche Cayenne - fuse box diagram - fuse box on left side of dashboard
Porsche Cayenne – fuse box diagram – fuse box on left side of dashboard
Fuse Fuse function Ampere ratting [A]
1 2003-2007: Center console socket, cigarette lighter
2007-2010: Cockpit socket at front centre, centre console sockets at rear right and rear left
20
2 Parking heater radio receiver 5
3 Socket in passenger footwell 20
4 2003-2007: Parking heater 15
2007-2010: Parking heater 20
5 Sockets in luggage compartment 20
6 Porsche Entry & Drive 15
7 Diagnosis, rain/light sensor, antenna control 5
8 Windshield wipers 30
9 Vehicle electrical system control unit (pump for washer fluid) 15
10 2003-2007: Power window, rear left 25
2007-2010: Power window and central locking, rear left door 30
11 2003-2007: Central locking system 15
12 2003-2007: Interior light, vehicle electrical system control unit 20
13
14 2003-2007: Power window, front left 25
2007-2010: Power window and central locking, front left door 30
15 Tail light, right; central locking system, power windows, mirrors 15
16 Horn, vehicle electrical system control unit 20
17 2003-2007: Turn signal, side light, left; vehicle electrical system control unit 10
2007-2010: Vehicle electrical system control unit (left turn signal light, right side marker light, left low beam) 30
18 2003-2007: Headlight washer system 20
2007-2010: Headlight washer system 25
19 2003-2007: Fog lights, vehicle electrical system control unit 15
2007-2010: Interior light, vehicle electrical system control unit 5
20 2007-2010: Vehicle electrical system control unit (instrument lighting, fog light left, left additional high beam) 30
21 2003-2007: Cornering light, vehicle electrical system control unit 15
22 Rear differential lock, transfer box, automatic rear lid 30
23 2003-2007: Rear differential lock, disengageable anti-roll bars
2007-2010: Differential lock
10
24 Tire pressure monitoring system 5
25
26 Porsche Stability Management, passenger airbag deactivation, brake pedal switch, instrument panel, engine control unit, airbag control unit, steering column module 10
Engine control unit (engine management, radiator fans, airbag, clutch switch, instrument panel)
27
28
29
30 Off-road roof-mounted headlights 15
31 Off-road roof-mounted headlights 15
32
33 Steering wheel heating, steering column module 15
34 Passenger compartment monitoring, seat heating, inclination sensor
35 2003-2007: Low beam, high beam 15
2007-2010: Vehicle electrical system control unit (right fog light, right additional high beam, interior light) 30
36 2003-2007: Vehicle electrical system control unit 10
2007-2010: Control unit for power seat controls, left 30
37
38 Brake lights 10
39 Relay activation, heated rear window, seat heating 5
40 Instrument panel, diagnosis 5
41 Kessy control unit (steering column lock, ignition lock, Porsche Entry & Drive, clutch switch) 15
42 Sliding/lifting roof or Panorama roof system 30
43 Subwoofer 30
44 Electrical seat adjustment, left; electrical steering column adjustment 30
45 Electrical seat adjustment, left; seat heating, rear 30
46
47 2003-2007: Rear differential lock
2007-2010: Transfer box
10
48 Parking heater clock 5
49 Servotronic, disengageable anti-roll bars 5
50 2003-2007: Heating pipe ventilation 10
51 Air-quality sensor, diagnostic socket, parking brake 5
52 2003-2007: Rear wiper 30
2007-2010: Rear wiper 15
53 Heated rear window control unit, passenger compartment monitoring, light switch, steering column module 5
54 Headlight beam adjustment, Xenon headlight (left; 2007-2010) 10
55
56 Fan, front air-conditioning system 40
57 2003-2007: Fan, rear air-conditioning system
2007-2010: Compressor level control
40

Fuse box in right side of dashboard

Porsche Cayenne - fuse box diagram - fuse box on right side of dashboard
Porsche Cayenne – fuse box diagram – fuse box on right side of dashboard
Number Fused function Ampere ratting [A]
1 Trailer coupling 15
2 ParkAssist 5
3 Trailer coupling 15
4 2003-2007: Telephone/telematics control unit 5
5 Trailer coupling 15
6 Porsche Stability Management (PSM) 30
7 Transfer box (center-differential lock), telephone preparation 5
8 2003-2007: Additional high beam, vehicle electrical system control unit 20
2007-2010: Vehicle electrical system control unit (left side marker light, right turn signal, right low beam) 30
9 2003-2007: CD changer, DVD navigation 5
10 TV tuner, satellite receiver (2003-2007), Rear Seat Entertainment (2007-2010) 5
11 Radio or Porsche Communication System (PCM) 10
12 Amplifier for sound package and Bose 30
13 Seat heating 5
14 Tail light, left; central locking system, power windows, mirrors 15
15 2003-2007: Power window, rear right 25
2007-2010: Power window and central locking, rear right door 30
16 Rear lid guard light, luggage compartment light, door guard light Rear guard lights 10
17 2003-2007: Low beam, right; high beam, right 15
18 Heated rear window 30
19 2003-2007: Brake booster, towing attachment 30
25
2007-2010: Trailer coupling, trailer socket connection point 25
20 Electric seat height adjustment 30
21 Spare wheel release relay (load), horn for alarm system 10
22 2003-2007: Electrical seat adjustment, front right; seat heating, front right 30
2007-2010: Seat heating, front 25
23 Air conditioning 10
24 Electrical seat adjustment, front right 30
25 Air-conditioning system, rear 5
26
27 Level control, Porsche Active Suspension Management Level, Porsche Dynamic Chassis Control (PDCC) 15
28
29 2003-2007: Transmission control unit 10
2007-2010: Transmission control unit, Tiptronic selector lever switch 5
30 Rear lid power closing mechanism 20
31 Filler flap actuator, rear end control unit (motors) 15
32 2003-2007: Central locking, right 10
33
34 2003-2007: Power window, front right 25
2007-2010: Power window and central locking, front right door 30
35 2003-2007: Turn signal, side light, right; vehicle electrical system control unit 10
2007-2010: Power seat controls, right 30
36 Roof module, telephone, compass 5
37
38 Porsche Stability Management 10
39 Diagnosis 5
40 Transfer box (center differential lock) 10
41 Trailer coupling control unit 10
42 Roof module, garage door opener 5
43 Back up light 5
44 Heatable washer nozzles, chassis switch, seat heating potentiometer, Porsche Dynamic Chassis Control (PDCC) 5
45
46 2007-2010: Rear Seat Entertainment 5
47 2003-2007: Telephone preparation 10
48 Level control, Porsche Active Suspension Management 10
49 Telephone, automatic anti-dazzle mirror 5
50 2003-2007: ParkAssist 5
2007-2010: Xenon headlight, right 10
51 2003-2007: Tiptronic transmission control unit 20
2007-2010: Tiptronic transmission control unit 15
52 Tiptronic selector lever switch, transmission prewiring 5
53 Windscreen relay 30
54 Windscreen relay 30
55 Reversing camera control unit 5
56 Porsche Stability Management 40
57 Transfer box control unit, Low Range 40

Engine Compartment Fuse Box

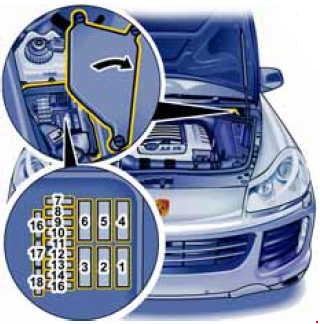

Porsche Cayenne - fuse box diagram - engine compartment fuse box
Porsche Cayenne – fuse box diagram – engine compartment fuse box
Number Fused function Ampere ratting [A]
1 Fan 60
2 Fan 30
3 2003-2007: Secondary air pump 40
4 2003-2007: Secondary air pump 40
5
6
7 Fuel injectors, ignition coils 20
8 2003-2007: Fuel injectors, ignition coils 20
2007-2010:
Cayenne: Ignition coils
Cayenne S/Cayenne GTS/Cayenne S Transsyberia:
Tank vent valve, air-conditioning compressor, air-conditioning control unit, intake pipe switchover, crankcase vent
15
9 Engine control module, camshaft adjusters, intake pipe switchover (Cayenne) 30
2007-2010:
Cayenne: Engine control unit
20
2007-2010:
Cayenne S/Cayenne GTS/Cayenne S Transsyberia:
Quantity control valve, camshaft adjuster, valve lift adjuster
15
10 2003-2007: Engine components: cooling air fan, afterrun pump, carbon canister shut-off valve, pressure sensor for air conditioning, tank leakage detection, run-on pump (Cayenne S), carbon canister shut-off valve valve (Cayenne)
2007-2010:
Cayenne: Water run-on pump relay, tank leakage detection, carbon canister shut-off valve, fan, pressure sensor for air conditioner
2007-2010:
Cayenne S/Cayenne GTS/Cayenne S Transsyberia:
Cooling air output stages, pressure sensor for air conditioner,tank leakage detection, exhaust flap control valve, oil-level sensor
10
11 Engine existing wiring, secondary air pump (Cayenne), air-conditioning compressor (Cayenne), oil-level sensor (Cayenne)
2007-2010:
Cayenne: Oil-level sensor, air-conditioning compressor, air-conditioning control unit, crankcase vent
2007-2010:
Cayenne S/Cayenne GTS/Cayenne S Transsyberia:
Engine control unit, fuel valve
15
12 2003-2007: E-box relay, secondary air pumps, afterrun pump relay 5
2007-2010: Camshaft adjustment, tank vent, fuel valve, variable intake manifold 10
13 Fuel pump, right 15
14 Fuel pump, left 15
15 Engine control module, main relay 10
16 Vakuum pump 30
17 Oxygen sensors ahead of catalytic converter 15
18 Oxygen sensors behind catalytic converter 7,5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
