Buick Riviera (1993) – fuse box diagram

Buick Riviera (1993) – fuse box diagram

Year of production: 1993

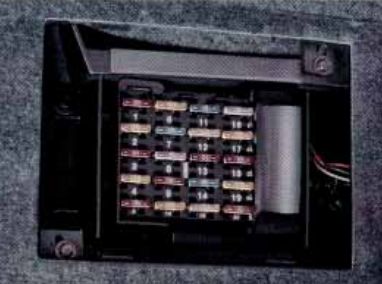

Passenger compartment (left side)

There is a fuse panel is located on the left side ofthe console under a carpeted
panel cover.

Buick Rivera – wiring diagram - fuse box diagram – passenger compartment (left side)
Buick Rivera – wiring diagram – fuse box diagram – passenger compartment (left side)
Fuses Ampere rating [A] Usage
1 10 ISO-IGN
2 20 Body
3 10 Antenna
4 20 Cigar
5 10 BCM/IPC
6 20 Stop/Hazard
7 15 Turn Signal
8 3 Cruise
9 10 HVAC
10 20 Park Light
11 15 Radio 1
12 25 Wiper
13 10 Radio 2
14 15 SIR
15 25 Bose
16 3 Crank
17 20 Trunk-rel/Pull Down & Fuel Door Re1
18 10 AIC
19 20 Ele Compressor
20 5 Coolant Fan

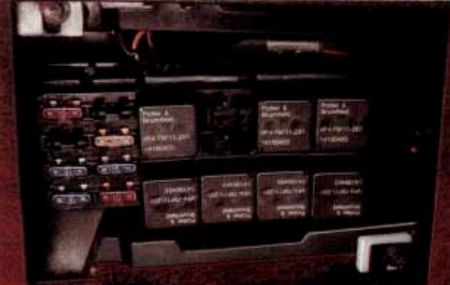

Right side

The fuse block is located on the right side of the console under a carpeted panel cover.

Buick Rivera – wiring diagram - fuse box diagram – passenger compartment (left side)
Buick Rivera – wiring diagram – fuse box diagram – passenger compartment (left side)
Fuse Ampere rating [A] Usage
1
2 25 Defog
3 15 Keyless Entry
4 10 Anti-lock
5 10 PCM/lgnition
6 15 PCM Solenoid
7 15 Neutral Start Safety Switch
8 15 IGN MOD

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
