Buick Park Avenue (1994) – fuse box diagram

Buick Park Avenue (1994) – fuse box diagram

Year of production: 1994

Fuses and Circuit Breakers

The fuse panel is located under the instrument panel, next to the parking brake

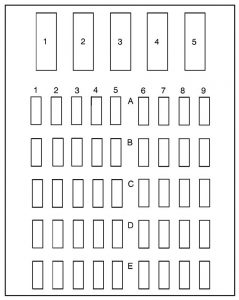

Buick Park Avenue -  wiring diagram - fuse box diagram - left side fuse panel

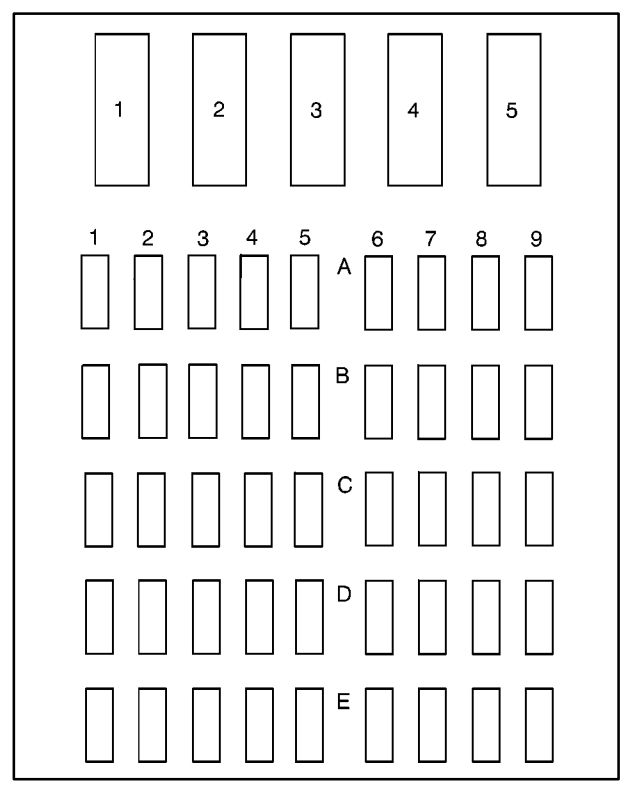

Buick Park Avenue – wiring diagram – fuse box diagram – left side fuse panel
Position Ampere rating [A] Circuity
1 30 BRKR – Power Window/Sunroof
2 Not Used
3 25 BRKR – Power Seats
4 Not Used
5 Not Used
1A 10 SIR DERM/Crank
1B 20 Signal/Cornering/Back-up Lamps
1C 10 SIR
1D 15 Cluster/Telltale/Chime/HTD Seat/Day-Nig :ht Mirror/ MEM Seat
1E Not Used
2A 10 Spare
2B 15 Spare
2C 20 Spare
2D 25 Spare
2E Not Used
3A Not Used
3B Not Used
3C Not Used
3D 10 Heated Mirrors
3E Not Used
4A 10 Mirror Illumination
4B Not Used
4C Not Used
4D Not Used
4E Not Used
5A 10 Uplevel HVAC/Lamp Monitor/Oil Level/Low Coolant
5C 10 Transmission/Cooling Fans
5D 25 Base HVAC
5E Not Used
6A 15 Courtesy Lamps/Power Mirrors
6B 20 Brake & Hazard Lamps
6C 15 Park Lamps
6D Not Used
6E Not Used
7A Not Used
7B Not Used
7C Not Used
7D Not Used
7E Not Used
8A Not Used
8B Not Used
8C Not Used
8D 10 Radio
8E 25 Wipermasher
9A 15 Ash Tray Cigar Lighter
9B 20 Electronic Level Control
9C 10 Radiohgnition
9D 15 Rear Cigar Lighters
9E 30 Rear Window Defog

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
