Buick Century (1991) – wiring diagrams – fuse panel

11 June 2017 admin Buick, Century 0

Buick Century (1991) – wiring diagrams – fuse panel

Year of productions:  1991

Fuse panel

Version 1

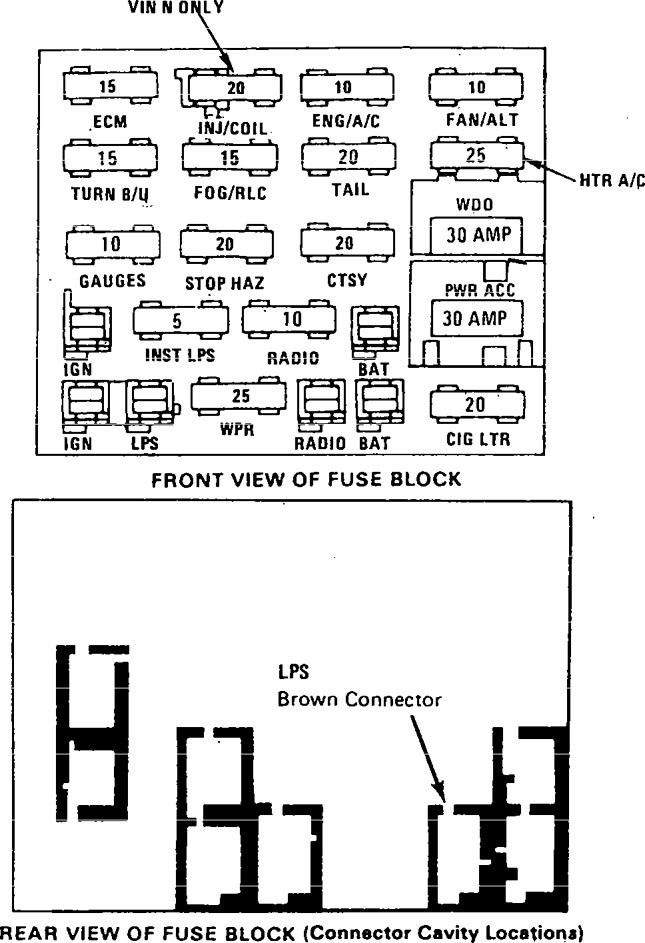

Buick Century – wiring diagram – fuse panel



Version 2

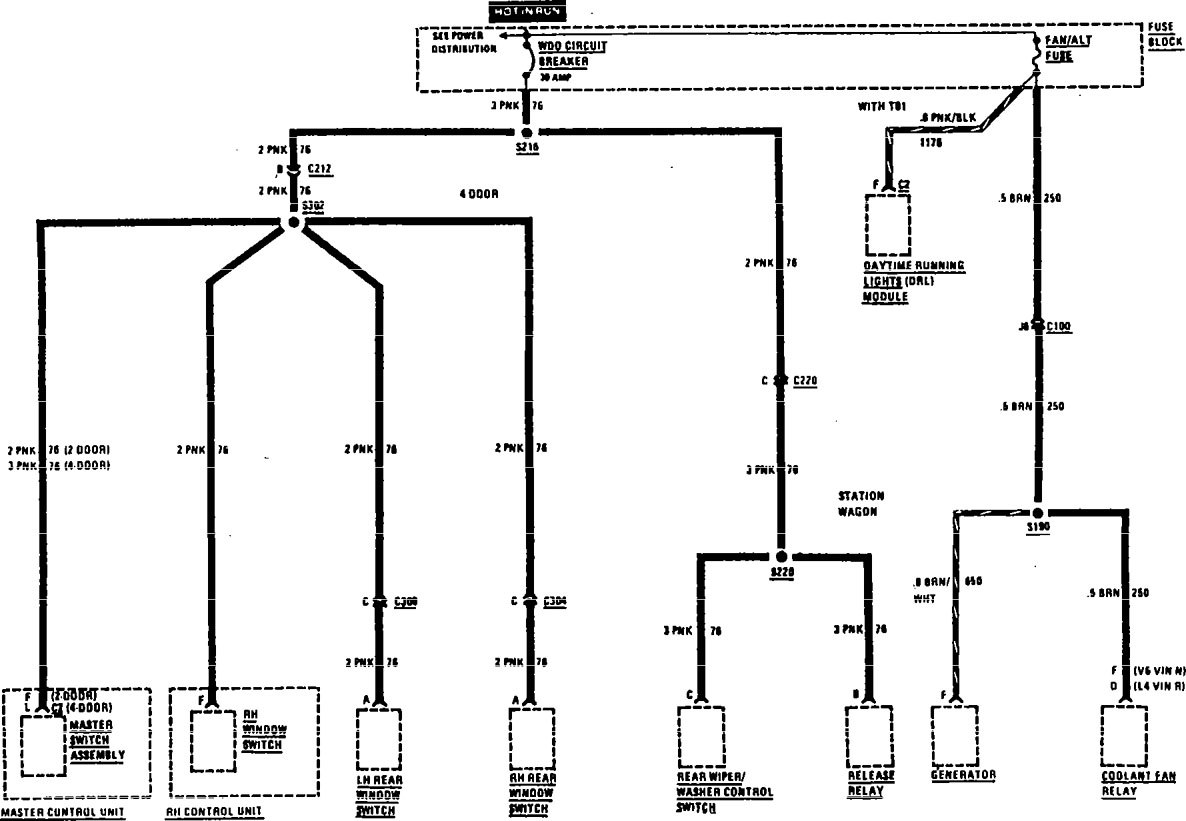

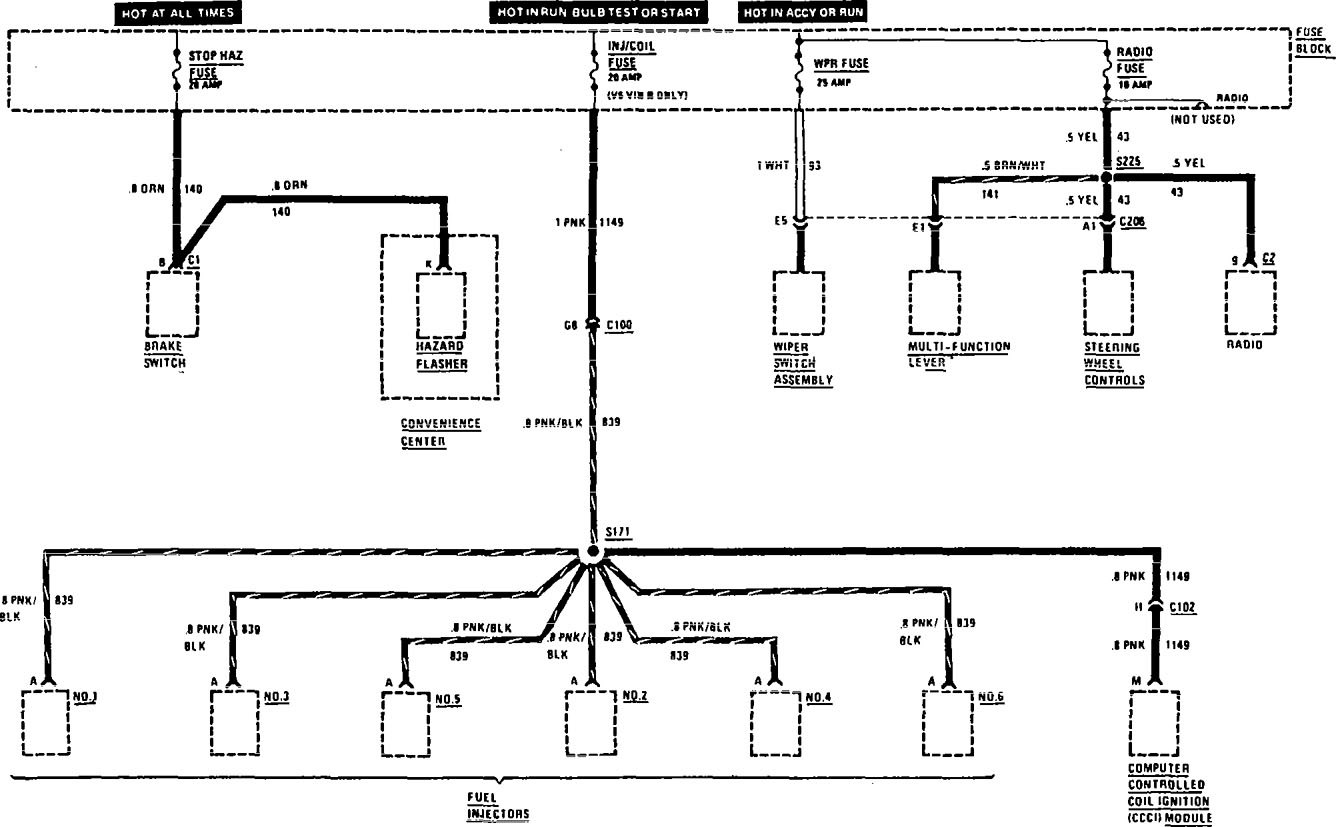

Buick Century – wiring diagram – fuse panel (part 1)

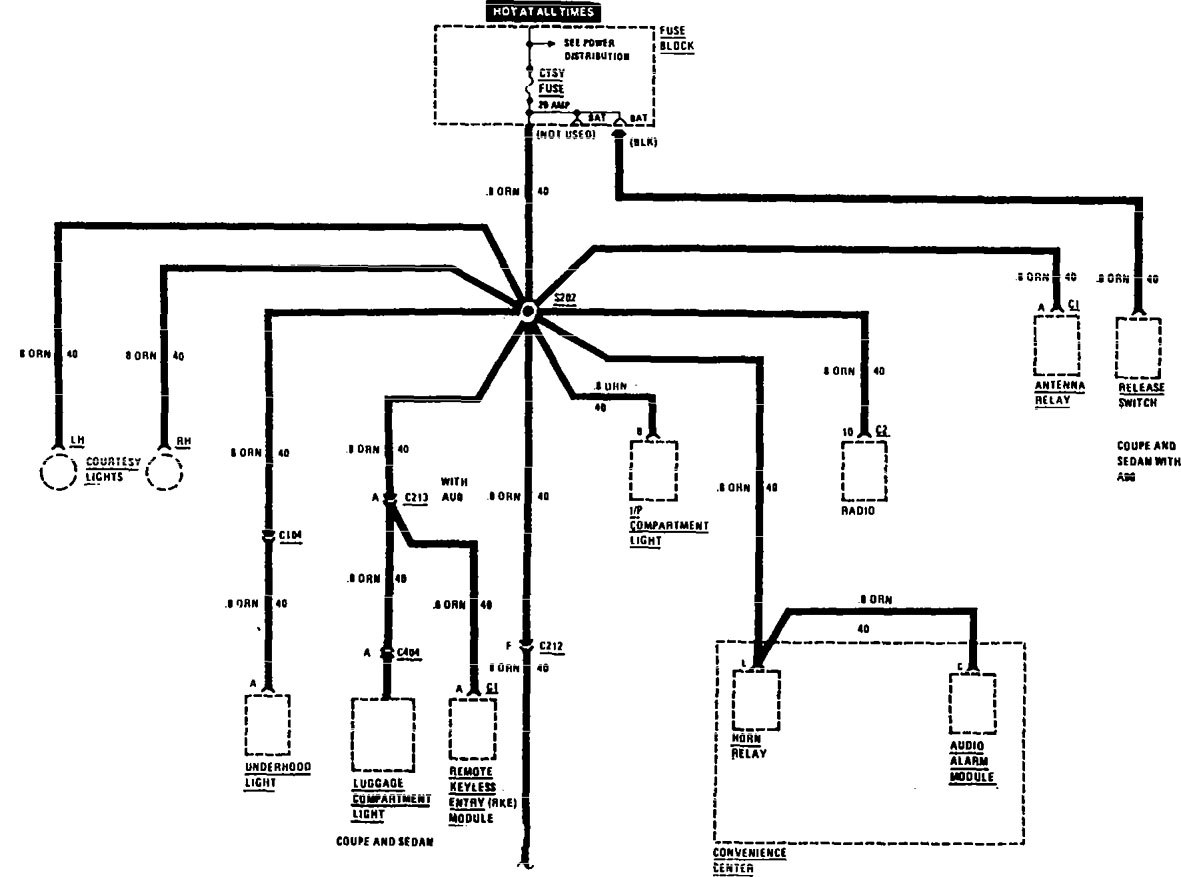

Buick Century – wiring diagram – fuse panel (part 2)

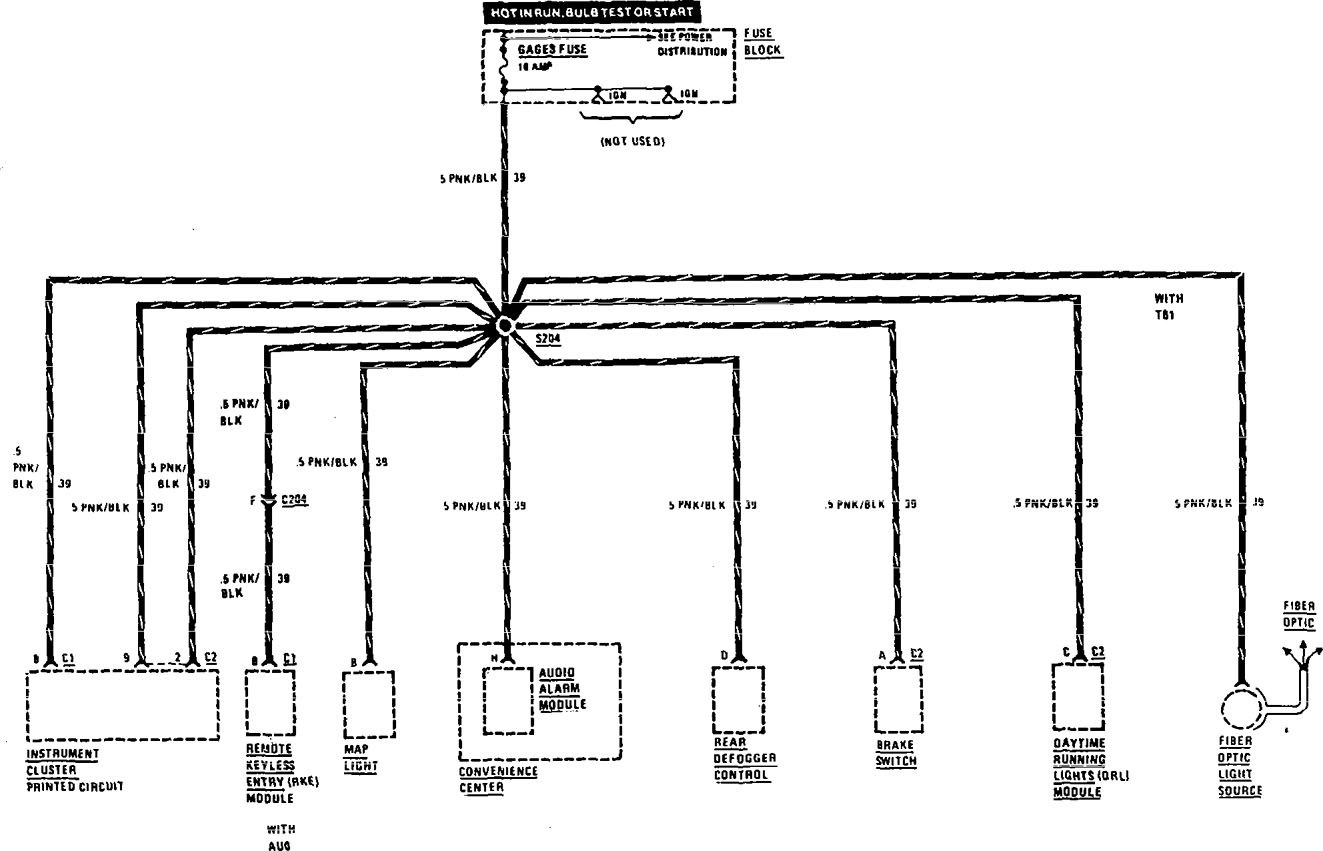

Buick Century – wiring diagram – fuse panel (part 3)

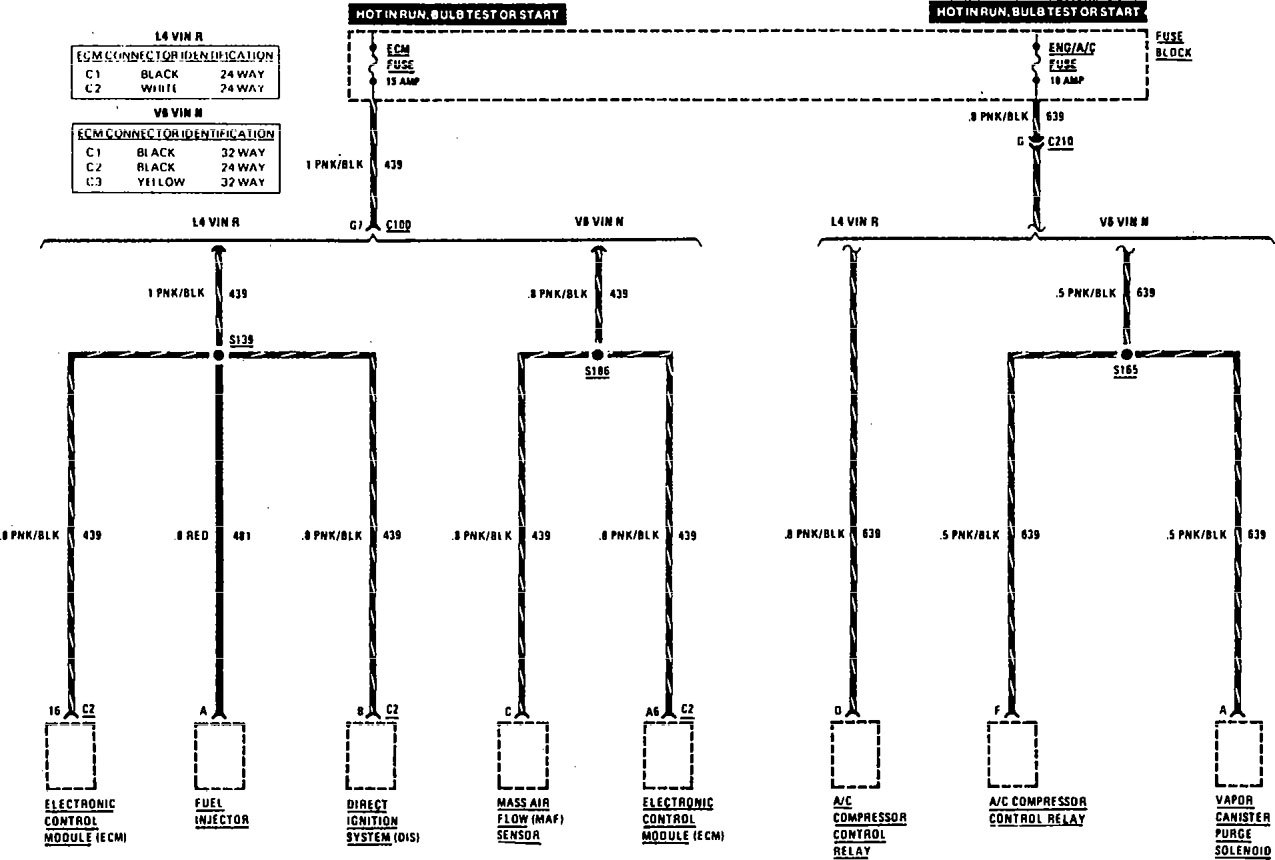

Buick Century – wiring diagram – fuse panel (part 4)

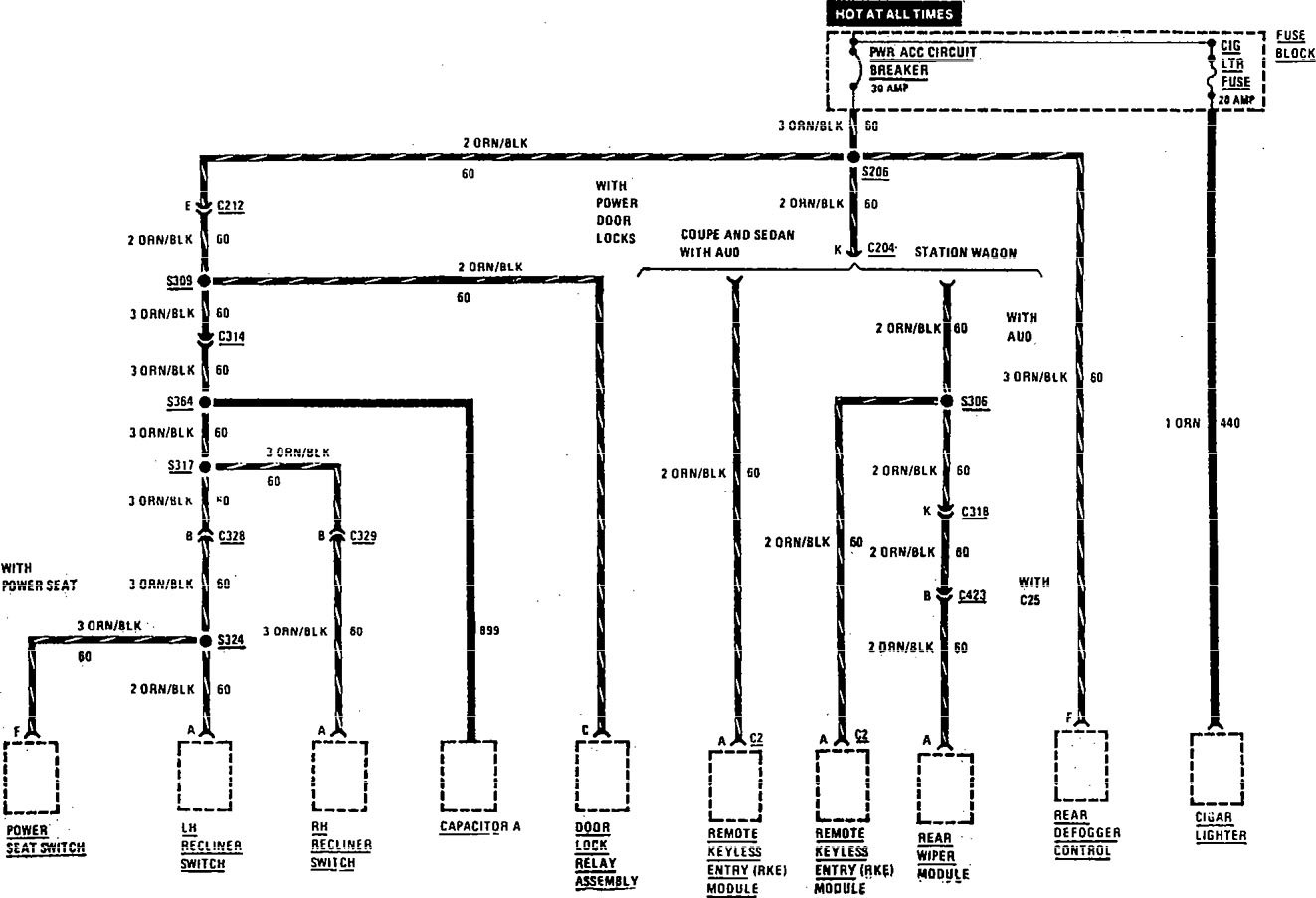

Buick Century – wiring diagram – fuse panel (part 5)

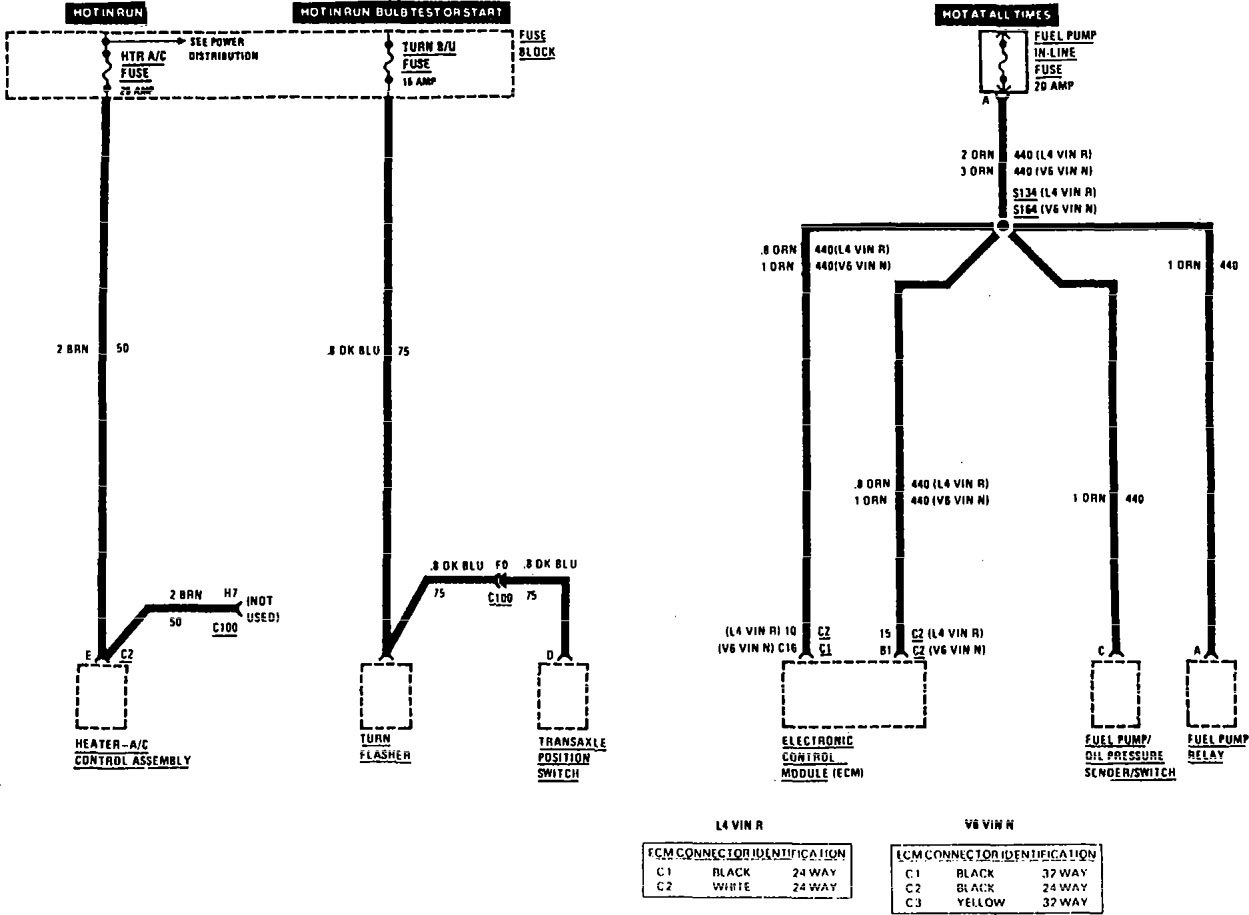

Buick Century – wiring diagram – fuse panel (part 6)

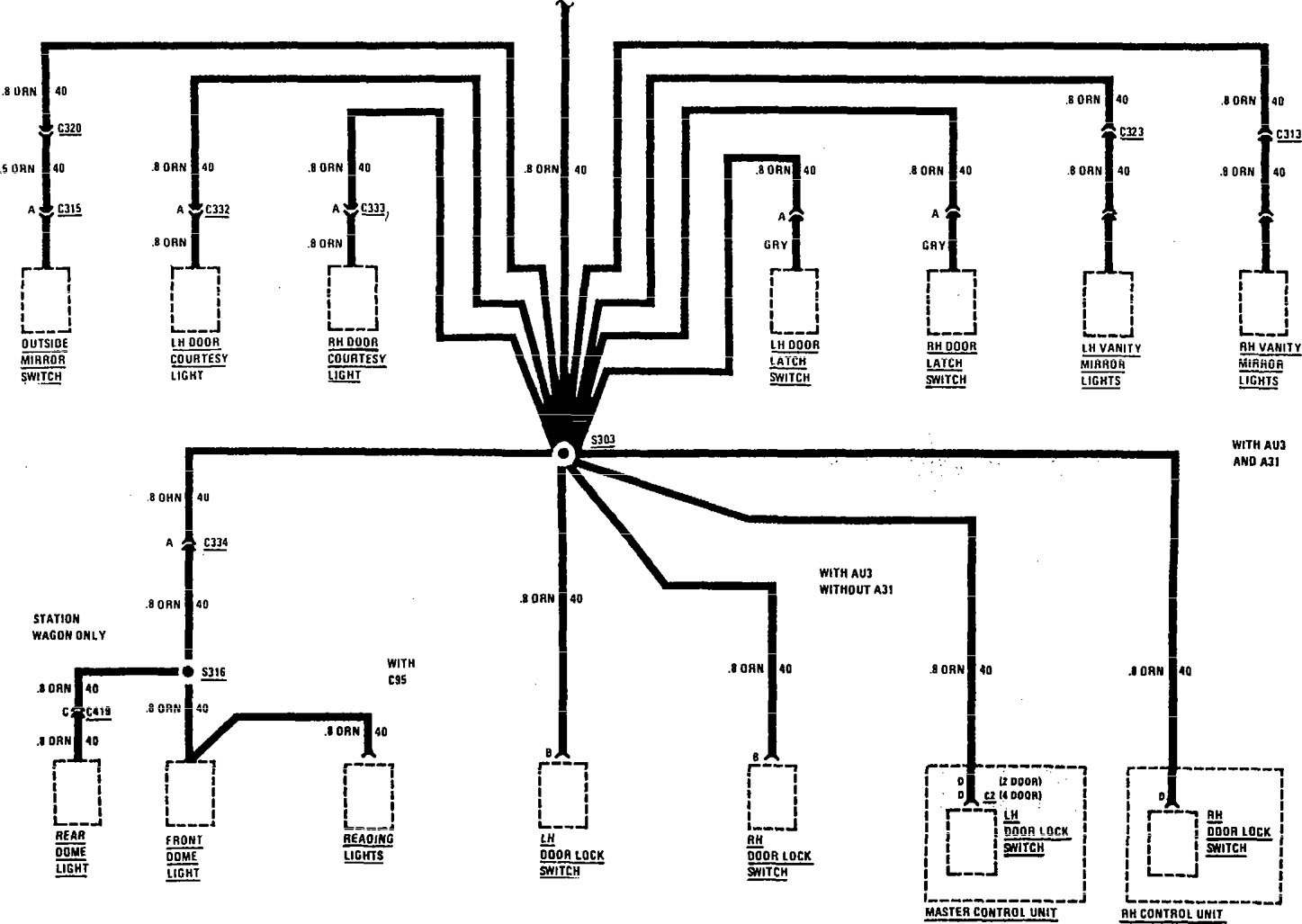

Buick Century – wiring diagram – fuse panel (part 7)
Buick Century – wiring diagram – fuse panel (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
