Bobcat S185 - wiring diagram - fuse box diagram
Bobcat S185 – wiring diagram – fuse box diagram

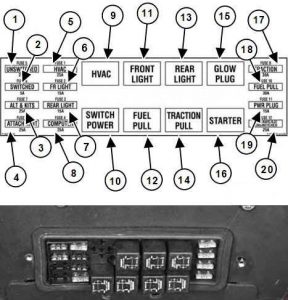

Number Ampers Protected circuit
1 25 Unswitched Horn
2 5 ACS/AWS/SJC Switched
3 25 Alternator & Accessories Back-up Alarm
4 25 Attachments
5 25 Heater & Air Conditioning
6 15 Front & Marker Lights
7 15 Rear Lights
8 25 Bobcat Controller
17 30 Traction
18 30 Fuel Shutoff
19 15 Power Plug
20 25 ACS/AWS/SJC Unswitched
Relay
9 Heater & Air Conditioning
10 Switch Power
11 Front & Marker Lights
12 Fuel Shutoff
13 Rear Lights
14 Traction
15 Glow Plugs
16 Starter
Bobcat S185 - wiring diagram - fuse box diagram
Bobcat S185 – wiring diagram – fuse box diagram

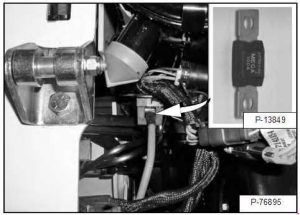

The  loader  has  a  12  volt,  negative  ground  alternator charging  system.  The  electrical  system  is  protected  by fuses  located  in  the  cab  on  the  steering  control  panel, and  a  100  ampere  master  fuse in  the engine compartment on the left side of the engine, under the  air  cleaner.  The  fuses  will  protect  the  electrical system when there is an electrical overload. The reason for the overload must be found before starting the engine again.

Bobcat S185 - wiring diagram - fuse box diagram
Bobcat S185 – wiring diagram – fuse box diagram

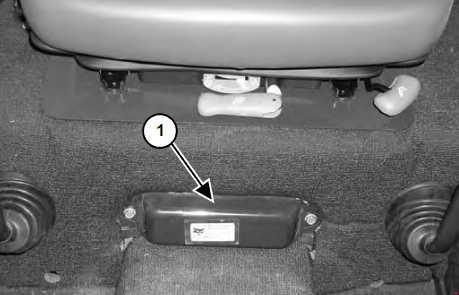

The electrical system is protec ted from overload by fuses and   relays   under   the   fuse   panel   cover   (Item   1). A decal is inside the cover to show location and amperage ratings.
Remove the cover to check or replace the fuses.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
