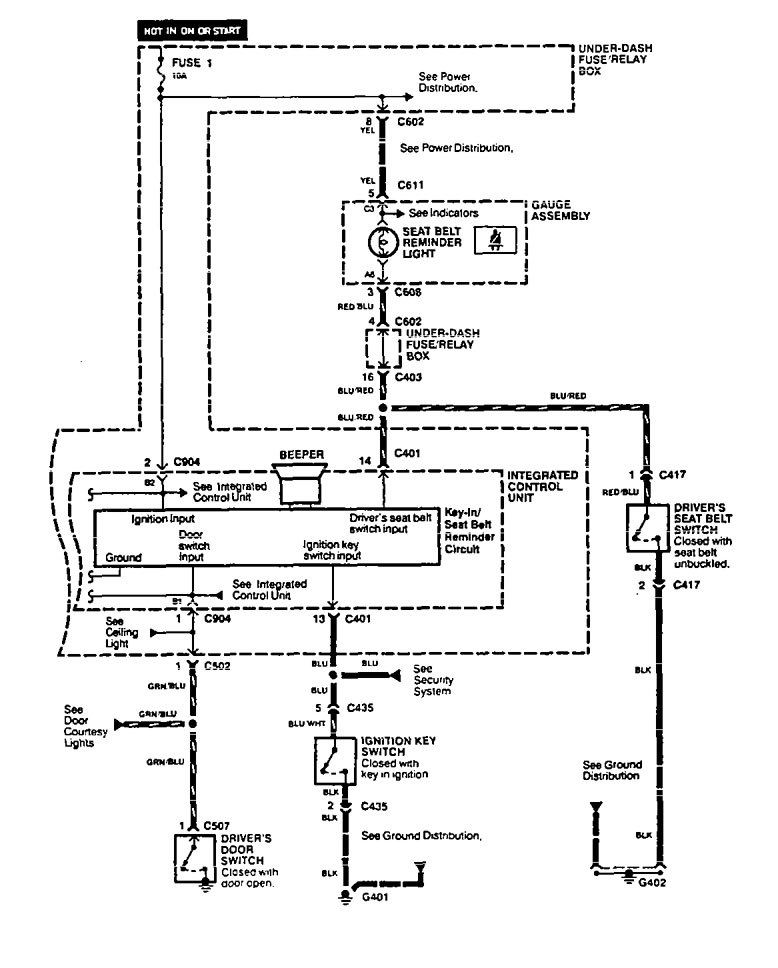

Acura Vigor (1994) – wiring diagrams – seat belt warning

Acura TL (1997) – wiring diagrams – transaxle controls Year of productions:  1997 Transaxle controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Vigor (1994) – wiring diagrams – power mirrors Year of productions:  1994 Power mirrors WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo 740 (1990) – wiring diagrams – fuel warning Year of productions:  1990 Fuel warning WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
