Acura TL (1995 – 1998) – wiring diagrams – headlamp switch

18 May 2017 admin Acura, TL 0

Acura TL (1995 – 1998) – wiring diagrams – headlamp switch

Year of productions:  1995, 1996, 1997, 1998

Headlamp switch

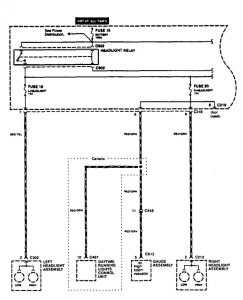

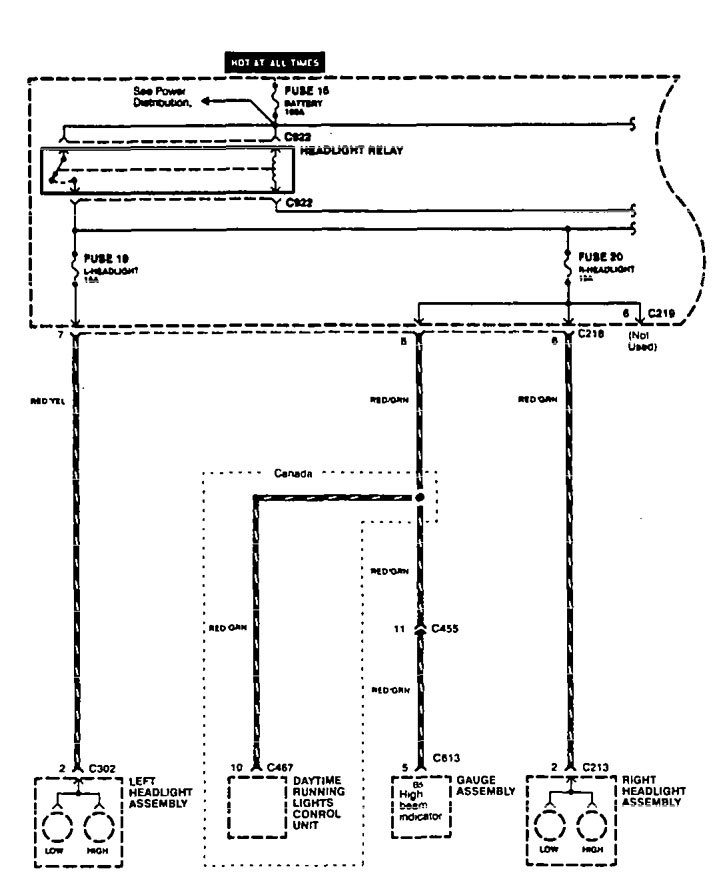

Acura TL – wiring diagram – headlamp switch (part 1)

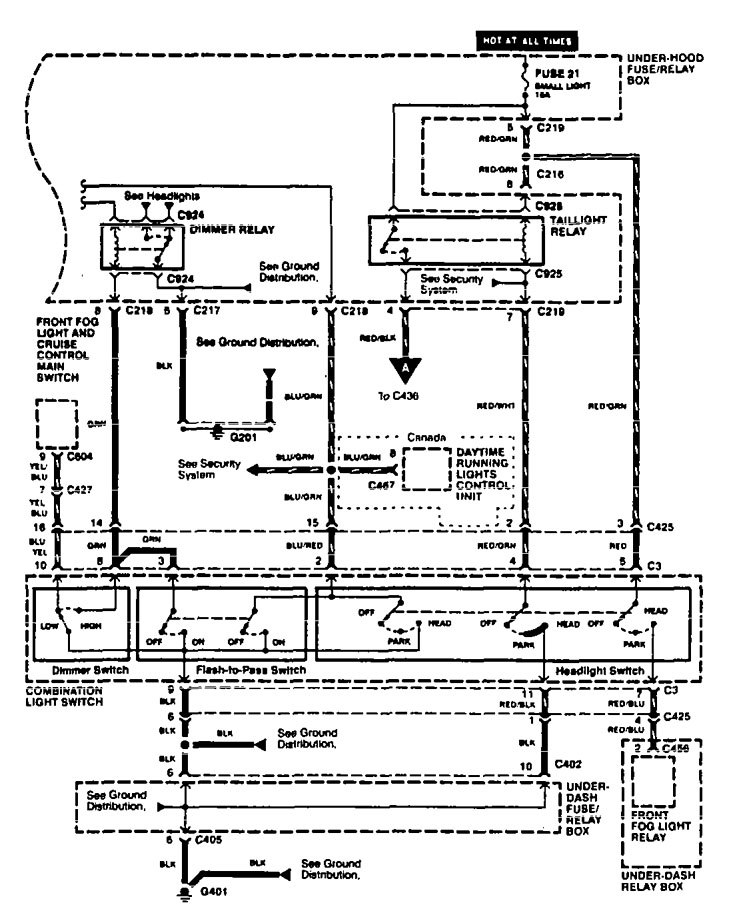

Acura TL – wiring diagram – headlamp switch (part 2)

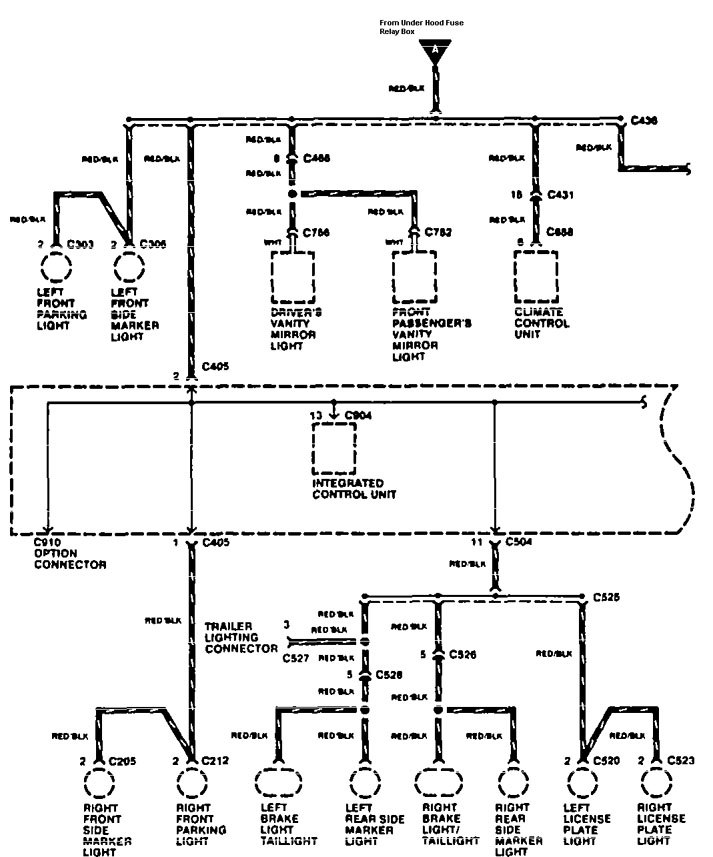

Acura TL – wiring diagram – headlamp switch (part 3)

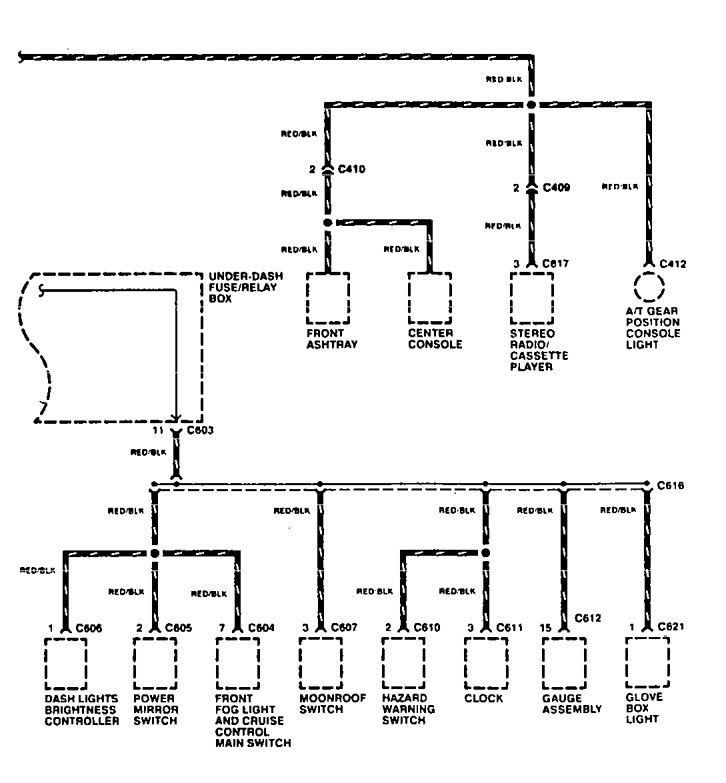

Acura TL – wiring diagram – headlamp switch (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
