Acura Vigor (1992) – wiring diagrams – instrumentation

Acura Vigor (1992) – wiring diagrams – instrumentation

Year of productions:  1992

Instrumentation

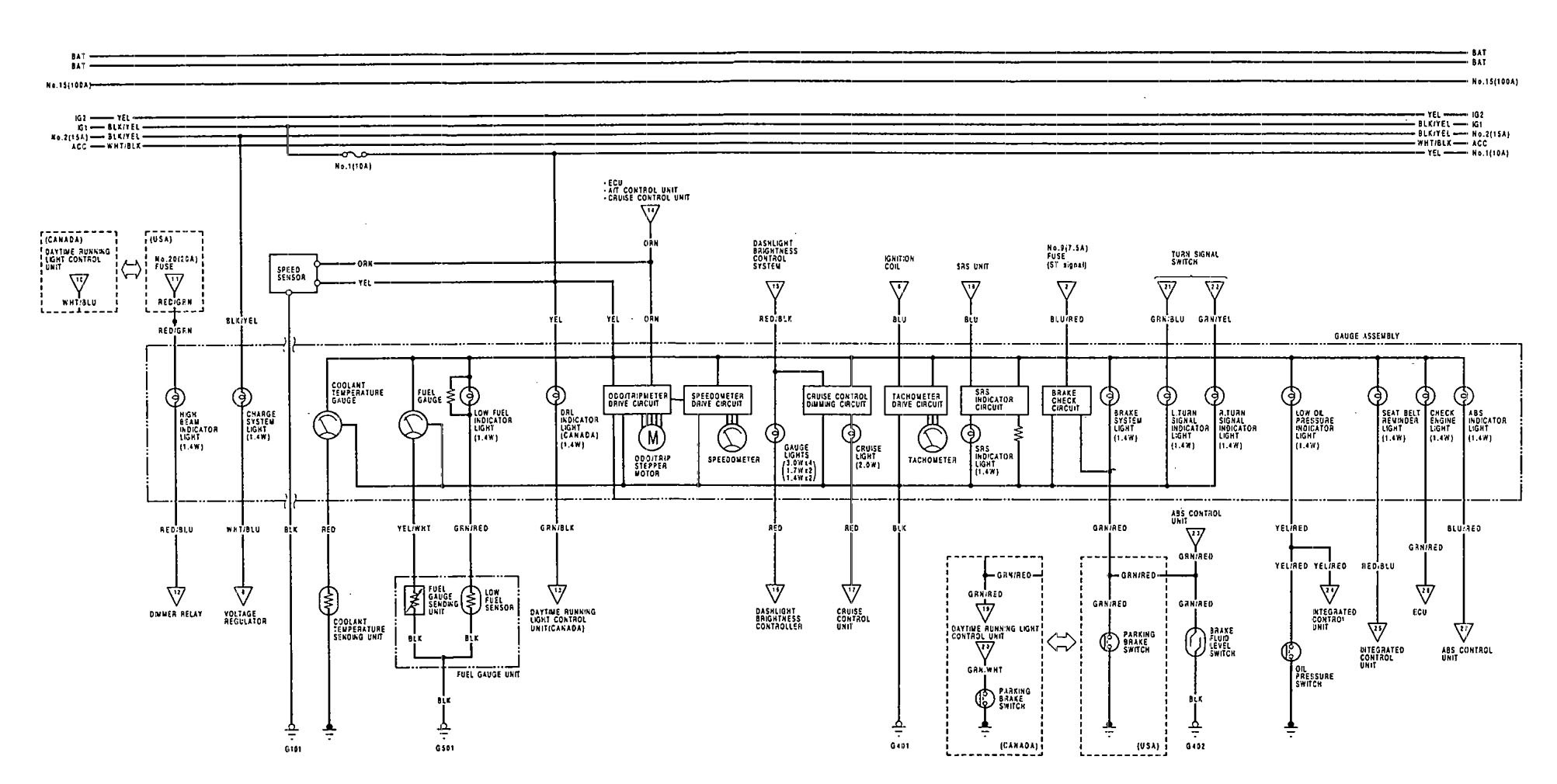

Acura Vigor – wiring diagram – instrumentation (part 1)

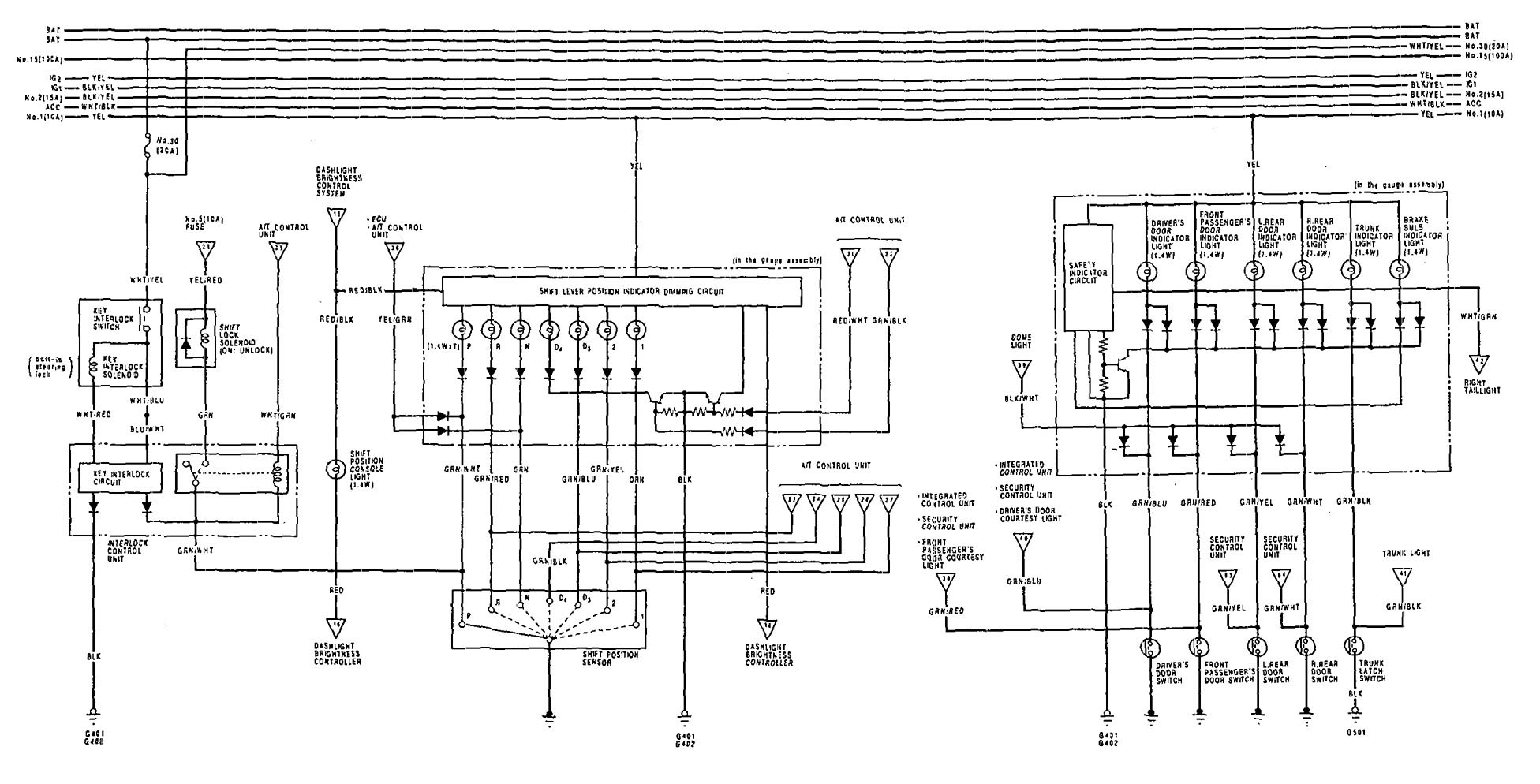

Acura Vigor – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
